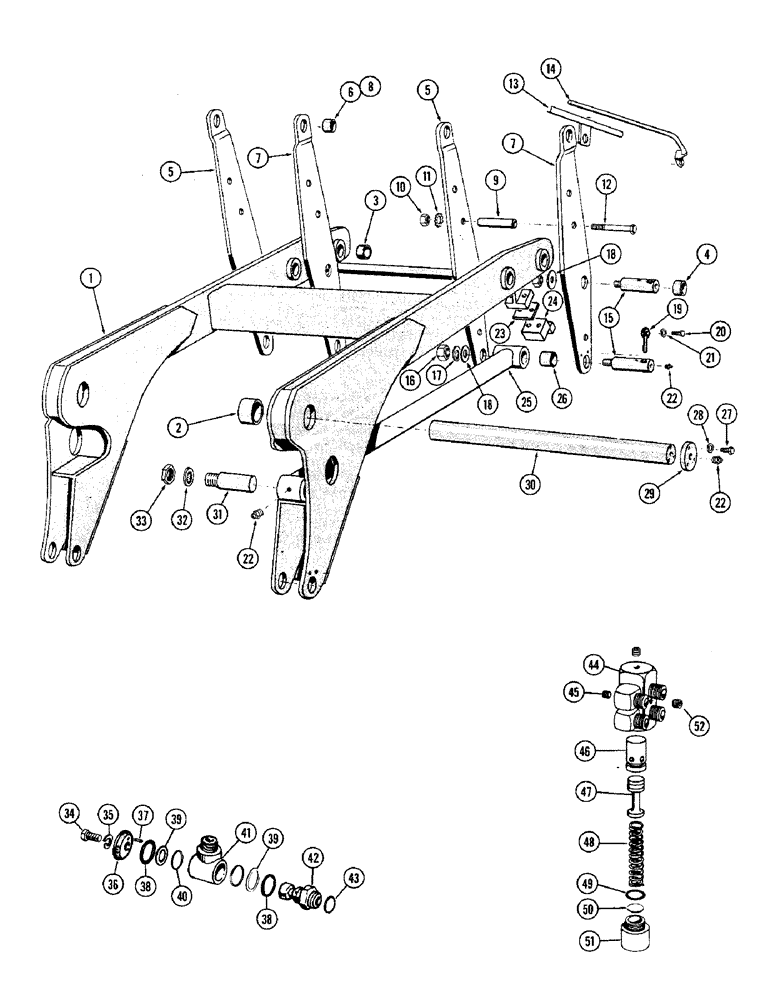

Запчасти Case W9A (142) - LIFT ARM ASSEMBLY, A17688 CONNECTOR, A17701 RELIEF VALVE (09) - CHASSIS

1

A16471

ARM ASSY - lift

1шт.

2

A16761

BUSHING

- lift arm pivot

2шт.

3

A56184

BUSHING

- lift arm bucket pivot

2шт.

4

A12059

BUSHING

- bell crank pivot

4шт.

5

A12067

SPARE PART

CRANK ASSY - bell, lift arm, L.H.

2шт.

6

A12062

BUSHING

- bell crank

1шт.

7

A12066

CRANK ASSY - bell, lift arm. R.H.

2шт.

8

A12062

BUSHING

- bell crank

1шт.

9

A12069

STRUT

SPACER - bell crank

6шт.

10

25-1112

NUT,3/4"-16, G5

- 3/4" N.F., hex

6шт.

11

193-15

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

6шт.

12

16-12104

BOLT - 3/4" x 6-1/2" N.F., hex.

6шт.

13

A12377

GAUGE ASSY - level, bucket

1шт.

14

A12380

ROD ASSY - bucket gauge

1шт.

15

A12070

AXLE PIN

PIN - pivot, crank & level pin

4шт.

16

25-1520

NUT

- jam, 1-1/4" N.F., hex

4шт.

17

193-19

WASHER,1 1/4"

LOCKWASHER - 1-1/4" ext. Shakeproof

4шт.

18

A12071

WASHER

- pivot pin

4шт.

REFER TO ILLUSTRATION PAGE,REFER TO ITEM# 18 WASHER,RIGHT ABOVE THAT WASHER IS A PIN PART IS A12141 MEASURES 6 3/4" LONG OR PART A15405 MEASURES A15405 7 3/4 LONG. 11/8/96

1шт.

19

A10615

LOCK ASSY

LOCK - pivot pin

4шт.

20

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

21

92-8

LOCK WASHER,1/2"

4шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

10шт.

23

A15833

SHIM - plate, bucket stop

1шт.

24

A16752

PLATE - stop, bucket

2шт.

25

A15808

PIPE ASSY - level

2шт.

26

A12062

BUSHING

- level pipe

4шт.

27

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2" x 1-1/2" N.F., hex

6шт.

28

92-8

LOCK WASHER,1/2"

6шт.

29

A15965

PLATE

- end, lift arm shaft

2шт.

30

A15964

SHAFT

- pivot lift arm

1шт.

31

A12523

PIN

- pivot, level link, rear

2шт.

32

92-24

LOCK WASHER,1 1/2"

1-1/2"

2шт.

33

25-1524

JAM NUT,Jam, 1 1/2"-12, G5

- jam, 1-1/2" N.F., hex

2шт.

A17688

LINK

CONNECTOR ASSY - swivel

2шт.

34

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

A17688 connector Hex, 1/4"-28 x 1/2", G5, Full Thd

1шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , A17688 Connector 1/4"

1шт.

36

A17689

GUARD - dirt, swivel, A17688 connector

1шт.

37

138-50

LOCK PIN,1/8" x 5/16", Slotted

PIN, , A17688 connector 1/8" x 5/16", Slotted

1шт.

38

A17690

O-RING

"O" RING - dirt guard to body, A17688 connector

2шт.

39

A17691

RING

- back-up, swivel, A17688 connector

2шт.

40

A17692

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

"O" RING - stem to body, A17688 connector

1шт.

41

NSS

NOT SOLD SEPARAT

BODY - swivel (Order A17688), A17688 connector

1шт.

42

A17688

LINK

STEM - swivel, A17688 connector

1шт.

43

A17694

O-RING

"O" RING - stem to tube, A17688 connector

1шт.

A17701

VALVE

ASSY - relief

1шт.

44

NSS

NOT SOLD SEPARAT

BODY - valve, A17701 relief valve

1шт.

45

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, 1/8" hex. sckt. hd., A17701 relief valve

2шт.

46

A17703

SEAT

- plunger, A17701 relief valve

1шт.

47

A17704

PLUNGER

- valve, A17701 relief valve

1шт.

48

A17705

SPRING

- plunger, A17701 relief valve

1шт.

49

A18683

X

"O" RING - cap, A17701 relief valve

1шт.

50

A17707

PLUG

- adjustment, A17701 relief valve

1шт.

51

A17708

CAP - relief valve, A17701

1шт.

52

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, 5/16" x 3/8" sckt. hd. cup. pt., A17701 relief valve

1шт.
