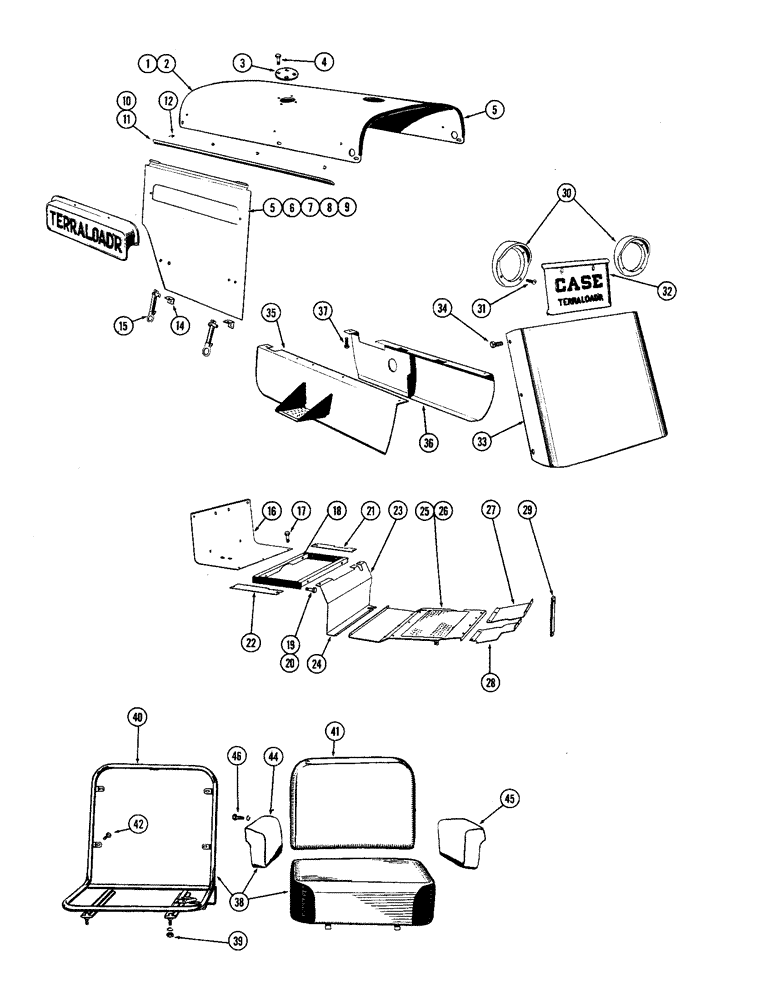

Запчасти Case W9A (068) - SHEET METAL, OPERATORS SEAT (09) - CHASSIS

1

A15202

HOOD - engine (Use w/o cab)

1шт.

2

A15512

HOOD - engine (Use w/cab)

1шт.

3

A16501

PLATE - cover, air cleaner opening (Removed with use of oil bath air cleaner)

1шт.

4

76-58

SCREW - mach., 5/16" x 1/2" N.F. rd. hd.

3шт.

5a

A12604

MOLDING - hood, front (Rubber)

1шт.

5

A16474

PANEL ASSY - hood side, R.H. (Used w/dry air cleaner) (Late model units)

1шт.

6

A15198

PANEL ASSY - hood side, R.H. (Use w/dry air cleaner) (Early model units)

1шт.

7

A16502

PANEL ASSY - hood side, R.H. (Use w/oil bath air cleaner)

1шт.

8

A16475

PANEL ASSY - hood side, L.H. (Used on late model units)

1шт.

9

A15199

PIN

PANEL ASSY - hood side, L.H. (Used on early model units)

1шт.

10

A12256

MOULDING - hood, R.H. (Early model units)

1шт.

11

A12257

MOULDING - hood, L.H. (Early model units)

1шт.

12

O4871AB

CLIP - spring, hood molding

8шт.

13

A12474

PLATE - name, hood side (Early model units)

2шт.

14

A15595

ANGLE - hold-down, hood

4шт.

15

A12514

LATCH

ASSY - hood side

4шт.

16

A12359

PANEL - operator's compartment, rear

1шт.

17

187-1009

BOLT

SCREW - 1/4" x 3/8" hex., washer hd.

4шт.

18

A12232

SUPPORT ASSY - seat mounting

1шт.

19

14-814

BOLT - 1/2" x 7/8" N.F., hex

3шт.

20

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.F., hex.

1шт.

21

A16592

SHIELD - battery, top L.H.

1шт.

22

A12360

SHIELD - battery, top R.H.

1шт.

23

A16545

LINK

SHIELD - battery, front L.H.

1шт.

24

A16544

SHIELD - battery, front R.H.

1шт.

25

A16541

PLATE ASSY - platform

1шт.

26

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C. hex

2шт.

27

A12353

PLATE - platform, front L.H.

1шт.

28

A16926

PLATE - platform, front R.H.

1шт.

29

A12355

SUPPORT - frt. platform plate, L.H.

1шт.

30

R16791

RING - mtg., head lamp

2шт.

31

68-420

SCREW

- mach., 1/4" x 1-1/4" N.C. oval hd.

8шт.

32

A12251

PLATE - name, front cover

1шт.

33

A12250

PANEL - front cover, chassis

1шт.

34

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

35

A12246

SHEET ASSY - side, frame channel, R.H.

1шт.

36

A12247

SHEET ASSY - side, frame channel, L.H.

1шт.

37

114-201

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd

- 3/8" x 1-1/4" N.F. hex.

10шт.

38

A15525

SEAT ASSY - operator's, operators seat

1шт.

39

25-115

NUT,5/16"-24, G5

- 5/16" NF, hex, operators seat

4шт.

40

A15822

FRAME ASSY - seat, operators

1шт.

41

A15824

CUSHION - back rest, operators seat

1шт.

42

173-202

SCREW,Rnd Hd, 1/4" - 20 x 3/4"

- mach., 1/4" x 3/4" rd. hd., operators seat

4шт.

43

A15823

CUSHION - seat, operators

1шт.

44

A15526

ARM

CUSHION - arm rest, R.H., operators seat

1шт.

45

A15527

CUSHION - arm rest, L.H., operators seat

1шт.

46

173-229

SCREW - mach., 1/4" x 7/8" N.C., rd. hd., operators seat

4шт.
