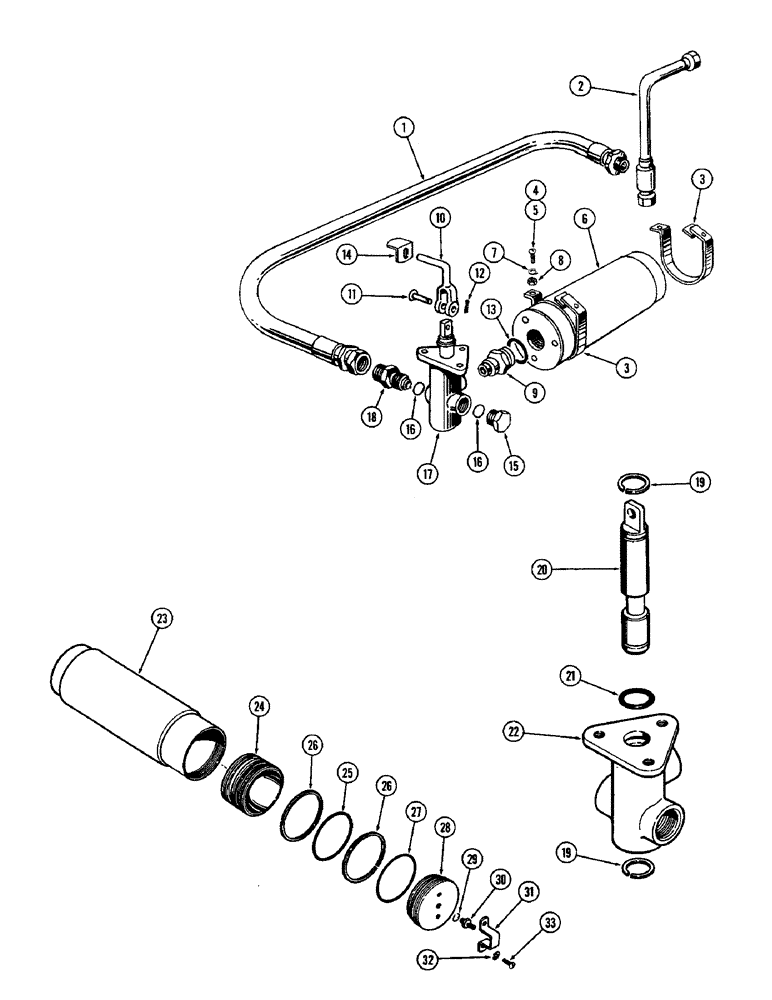

Запчасти Case W9A (162) - ACCUMULATOR ATTACHMENT, A13758 VALVE ASSEMBLY, A13757 (08) - HYDRAULICS

1

A13767

HOSE - accumulator, hydraulic

1шт.

2

A13769

TUBE - control valve to lift cyl.

1шт.

3

A16692

BRACKET ASSY - mtg., accumulator

2шт.

4

11-612

BOLT

- square neck, 3/8" x 3/4" N.C., rd. hd.

2шт.

5

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

6

A13757

ACCUMULATOR ASSY - hydraulic

1шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

- 3/8" N.C., hex

4шт.

9

A13759

FITTING

- reducer

1шт.

10

A18394

HANDLE - valve, accumulator

1шт.

11

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Handle 5/16" x .940"

1шт.

12

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

13

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

"O" RING - adapter

1шт.

14

A18395

LATCH - valve handle

1шт.

15

A13760

X

PLUG - control valve

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - plug and adapter

2шт.

17

A13758

VALVE ASSY - control, accumulator

1шт.

18

A13689

X

ADAPTER -, Serial Range: hose-valve

1шт.

A13758

VALVE ASSY - control, accumulator

1шт.

19

F9534

RING - snap, valve spool, A13758 valve assembly

2шт.

20

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order A13758), A13758 valve assembly

1шт.

21

A14957

X

"O" RING - valve spool, A13758 valve assembly

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - valve (Order A13758), A13758 valve assembly

1шт.

A13757

ACCUMULATOR ASSY - hydraulic, A13757 accumulator

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - accumulator (Order A13757), A13757 accumulator

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - accumulator (Order A13757), A13757 accumulator

1шт.

25

A14929

O-RING

"O" RING - piston "V", A13757 accumulator

1шт.

26

A14930

RING - piston (Teflon), A13757 accumulator

2шт.

27

A14934

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

"O" RING - end cap seal, A13757 accumulator

1шт.

28

NSS

NOT SOLD SEPARAT

CAP - end (Order A13757), A13757 accumulator

1шт.

29

A14933

O-RING

"O" RING - gas valve, A13757 accumulator

1шт.

30

A14931

VALVE ASSY - gas, A13757 accumulator

1шт.

31

A14932

PROTECTOR - gas valve, A13757 accumulator

1шт.

32

92-6

LOCK WASHER,3/8"

A13757 accumulator 3/8"

2шт.

33

75-610

X

SCREW - mach., 3/8" x 5/8" N.C., rd. hd., A13757 accumulator

2шт.
