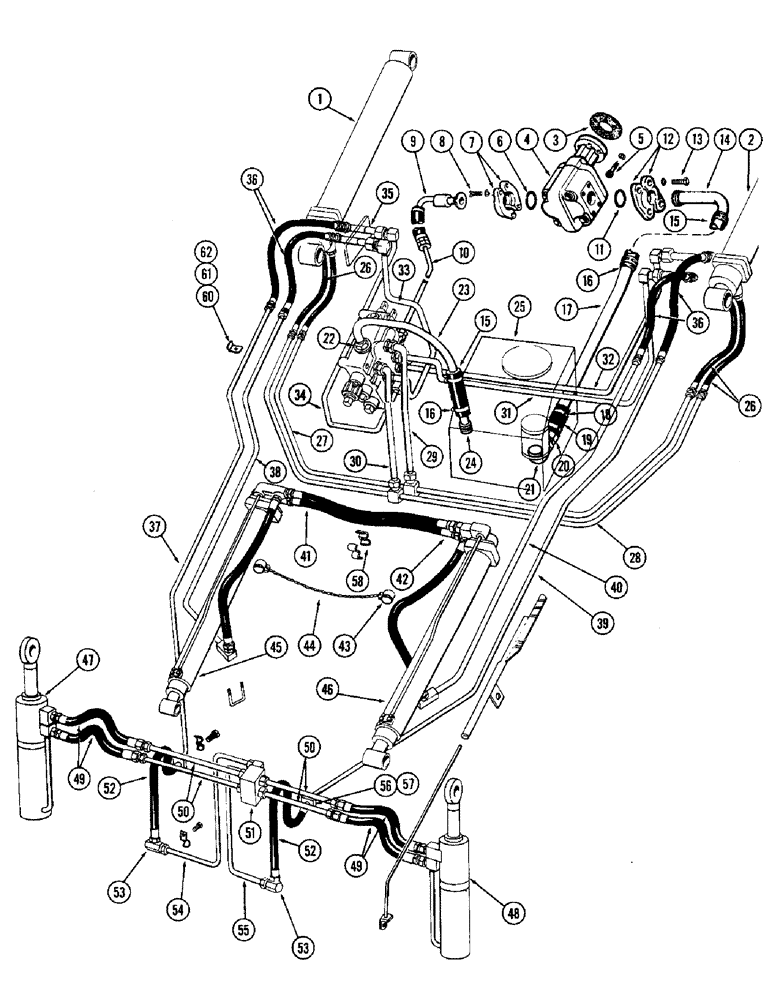

Запчасти Case W9A (130) - THREE SPOOL HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

A17860

CYLINDER ASSY - lift, R.H. (Repair, Figure 138)

1шт.

2

A17861

CYLINDER ASSY - lift, L.H. (Repair, Figure 138)

1шт.

3

A12304

GASKET,0.4mm Thk

- hydraulic pump

1шт.

4

A12302

PUMP, HYDRAULIC

PUMP ASSY - hyd. (Repairs, Figure 132)

1шт.

5

14-618

SCREW,Hex, 3/8" - 24 x 1 1/8", Gr 5

BOLT - 3/8" x 1-1/8" N.F., hex

4шт.

6

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

"O" RING - pressure hose to pump

1шт.

7

A12306

FLANGE

CLAMP - split flange, press hose

2шт.

8

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

9

A12305

HOSE - pressure, pump outlet

1шт.

10

A16945

TUBE - pressure, valve inlet

1шт.

11

A12139

O-RING

"O" RING - suction, Serial Range: elbow-pump

1шт.

12

A12301

CLAMP,Half

CLAMP - split flange, suction elbow

2шт.

13

113-309

BOLT - 7/16" x 1-3/8" N.C., hex

4шт.

14

A12300

ELBOW - pump suction

1шт.

15

A12299

HYDRAULIC HOSE,1.25" ID x 5.50", SAE20R1

1.25" ID x 5.50", SAE 20R1 - Suction tube & valve return tube

2шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" - 1-3/4"

4шт.

17

A12297

TUBE - suction, Serial Range: tank-pump

1шт.

18

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

19

A12303

INTAKE AIR HOSE,1.50" ID

x 7.50", SAE 20R1 - Suction tube 1.50" ID

1шт.

20

A12295

NIPPLE - outlet, hyd. oil tank

1шт.

21

221-1391

ELBOW - reducing 90 degrees, 1-1/2" - 1-1/4"

1шт.

22

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

"O" RING - return tube, valve to tank

1шт.

23

A12314

TUBE - oil return, Serial Range: valve-tank

1шт.

24

A12294

NIPPLE, LUBE

NIPPLE - return hose to oil tank

1шт.

25

A16586

TANK ASSY - hyd. oil (Repair, Figure 124)

1шт.

26

A12333

HOSE

- lift cylinder

4шт.

27

A12327

TUBE

- manifold, lift cyl., inner

1шт.

28

A12331

TUBE

- manifold, lift cyl., outer

1шт.

29

A12323

TUBE - valve to inner manifold

1шт.

30

A12328

TUBE - valve to outer manifold

1шт.

31

A16914

TUBE - valve to jct, pipe, R.H. (Tilt cyl.)

1шт.

32

A16948

TUBE - valve to jct pipe, R.H. (Aux. cyl.)

1шт.

33

A16915

TUBE - valve to jct, pipe, L.H. (Tilt cyl.)

1шт.

34

A16955

TUBE - valve to jct. pipe, L.H. (Aux. cyl.)

1шт.

35

A16950

PIPE ASSY - hydraulic junction

2шт.

36

A14473

HOSE - jct. pipe to tilt & bucket tube

4шт.

37

A16954

TUBE - jct. hose to bucket hose, R.H.

1шт.

38

A12336

TUBE

- jct. hose to tilt cyl. hose, R.H.

1шт.

39

A16955

TUBE - jct. hose to bucket hose, L.H.

1шт.

40

A12337

TUBE - jct. hose to tilt cyl. hose, L.H.

1шт.

41

A12339

HOSE ASSY.

HOSE - tilt cylinder cross over

2шт.

42

A12338

X

ADAPTER - cross over hose

2шт.

43

A13241

CLAMP - tie, tilt cylinder

2шт.

44

A13242

O-RING

CHAIN - tie, tilt cylinder

1шт.

45

A17862

CYLINDER ASSY - tilt, R.H. (Repair, Figure 140)

1шт.

46

A17863

CYLINDER ASSY - tilt, L.H. (Repairs, Figure 140)

1шт.

47

A17668

CYLINDER

ASSY - clam, R.H. (Repairs, Figure 144)

1шт.

48

A17669

CYLINDER

ASSY - clam, L.H. (Repairs, Figure 144)

1шт.

49

A17687

HOSE ASSY.

HOSE - clam cyl. to valve tube

4шт.

50

A17697

TUBE

- cyl. hose to relief valve

4шт.

51

A17701

VALVE

ASSY - relief (Repairs, Figure 142)

1шт.

52

A16960

HOSE - lift arm tube to valve tube

2шт.

53

A17688

LINK

SWIVEL ASSY - hose connector (Repairs, Figure 142)

2шт.

54

A17700

TUBE - relief valve to arm hose, R.H.

1шт.

55

A17699

TUBE ASSY.

TUBE - relief valve to arm tube, L.H.

1шт.

56

A16961

FLANGE

CLAMP - split flange, aux. cyl. hose

8шт.

57

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - split flange clamp

4шт.

58

A12332

CLAMP

- hose & tube

4шт.

59

A16959

BRACKET

- mtg. lift arm tube

2шт.

60

A16956

CLAMP - aux. tube mtg

2шт.

61

A16957

SPACER - tube mtg. clamp

2шт.

62

A16958

BRACKET - tube mtg

2шт.
