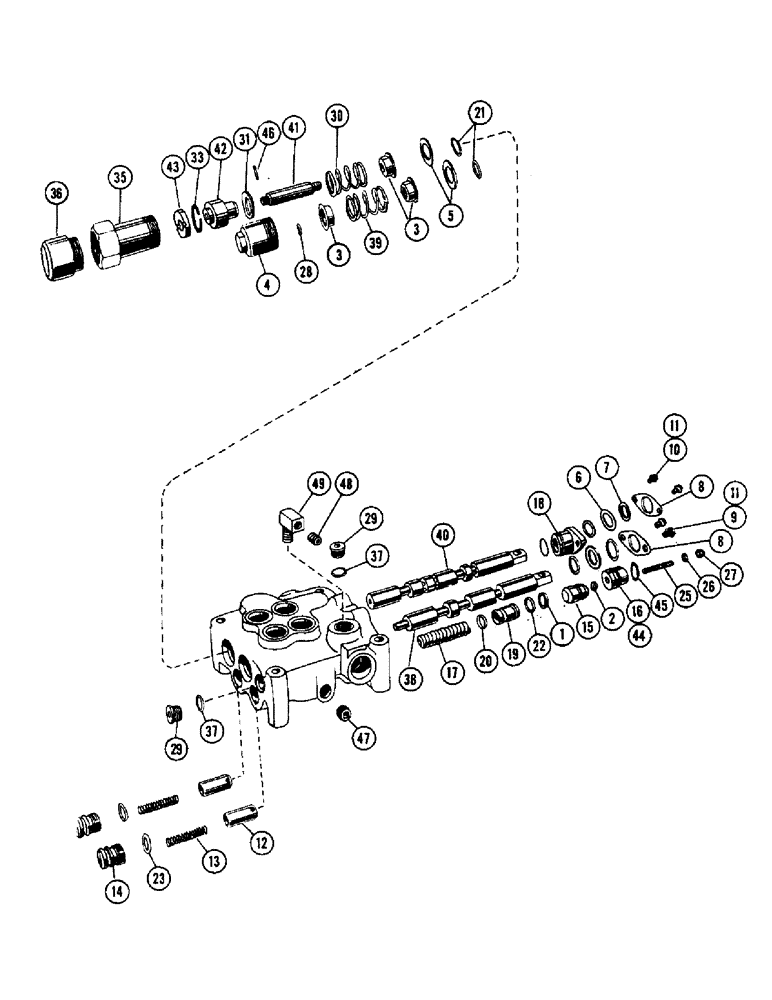

Запчасти Case W9A (125A) - A13915 HYDRAULIC VALVE (08) - HYDRAULICS

1

A13162

RING - back-up, relief valve seat

1шт.

2

A13163

INSERT - relief valve seat

1шт.

3

A13164

RETAINER,13.49mm ID x 37.31mm OD

SPACER - spool centering

3шт.

4

A13165

CAP

- spool

1шт.

5

A13166

WASHER

RETAINER - spool "O" ring

1шт.

6

A13167

RETAINER

- spool "O" ring (Stem end)

2шт.

7

A13168

WIPER

- spool, stem end

2шт.

8

A13169

PLATE - spool seal, stem end

2шт.

9

75-610

X

SCREW - 3/8 x 5/8" N.C. rd. hd.

2шт.

10

75-616

SCREW - 3/8 x 5/8" N.C. rd. hd.

2шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

A13170

POPPET - check valve

2шт.

13

A13171

VALVE SPRING

SPRING - poppet, check valve

2шт.

14

A13172

CYLINDER END CAP

CAP - relief valve

2шт.

15

A13173

SEAT - relief valve

1шт.

16

A13174

X

CAP - adj., relief valve w/out "O" ring type seal (See 44)

1шт.

17

A13175

SPRING - relief valve

1шт.

18

A13177

HOUSING - seal, float valve spool

1шт.

19

A13180

PLUNGER - relief valve

1шт.

20

A13181

RING - relief valve plunger

1шт.

21

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"O" RING - spool

4шт.

22

A13185

X

"O" RING - relief valve seat

1шт.

23

A13186

O-RING

"O" RING - check valve cap

2шт.

24

A13187

"O" RING - float valve spool, stem end

1шт.

25

A13188

SCREW - adjusting, relief valve

1шт.

26

25-155

JAM NUT,Jam, 5/16"-24, G5

- 5/16" N.F. thin jam

1шт.

27

A13189

ACORN NUT - relief valve adjusting screw

1шт.

28

A13190

X

SNAP RING - spool centering spring spacer

1шт.

29

A13192

X

PLUG

2шт.

30

A13643

SPRING - float spool

1шт.

31

A13644

RETAINER - float spool

1шт.

32

A13645

X

CAP - float spool detent retainer (Cap screw design) (Use 1-A51984, 1-A15985, 1-A15986 and 138-49 roll pin)

1шт.

33

A13646

RING - float spool detent

1шт.

34

A13647

RETAINER - detent ring (Use 1-A51984, 1-51985, 1-A15986 and 138-49 roll pin)

1шт.

35

A13648

CAP - float spool screw

1шт.

36

A13649

CAP - float spool detent

1шт.

37

O8416AB

X

"O" RING - for A13192 plug

2шт.

38

A15979

SPOOL - tilt valve (Includes 1-A13164, 1-A13166, 2-A13184, 1-A15981 and 1-A13190)

1шт.

39

A15981

SPRING

- tilt valve spool

1шт.

40

A15982

SPOOL - float valve (Includes 1-A13164, 1-A13166, 1-A13184, 1-A13643, 1-A13644, 1-A13646, 1-A13648, 1-13649, 1-A15984, 1-A15985, 1-A15986 and 138-49 roll pin)

1шт.

41

A15984

STUD - retainer to float spool

1шт.

42

A15985

BARREL - detent, float spool (Roll pin design)

1шт.

43

A15986

RETAINER - snap ring, float spool

1шт.

44

A15987

CAP - relief valve adjusting (w/"O" ring type seal)

1шт.

45

A15988

X

"O" RING - for A15987 cap

1шт.

46

138-49

LOCK PIN,3/32" x 1 1/2", Slotted

Pin, , for A51986 3/32" x 1 1/2", Slotted

1шт.

47

221-24

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG - 1/2" sq. socket pipe for valve housing

1шт.

48

221-841

PLUG

- 1/4" hex. socket pipe for A15925 elbow

1шт.

49

A15925

ELBOW UNION

ELBOW - 90 degree (For checking pressure)

1шт.
