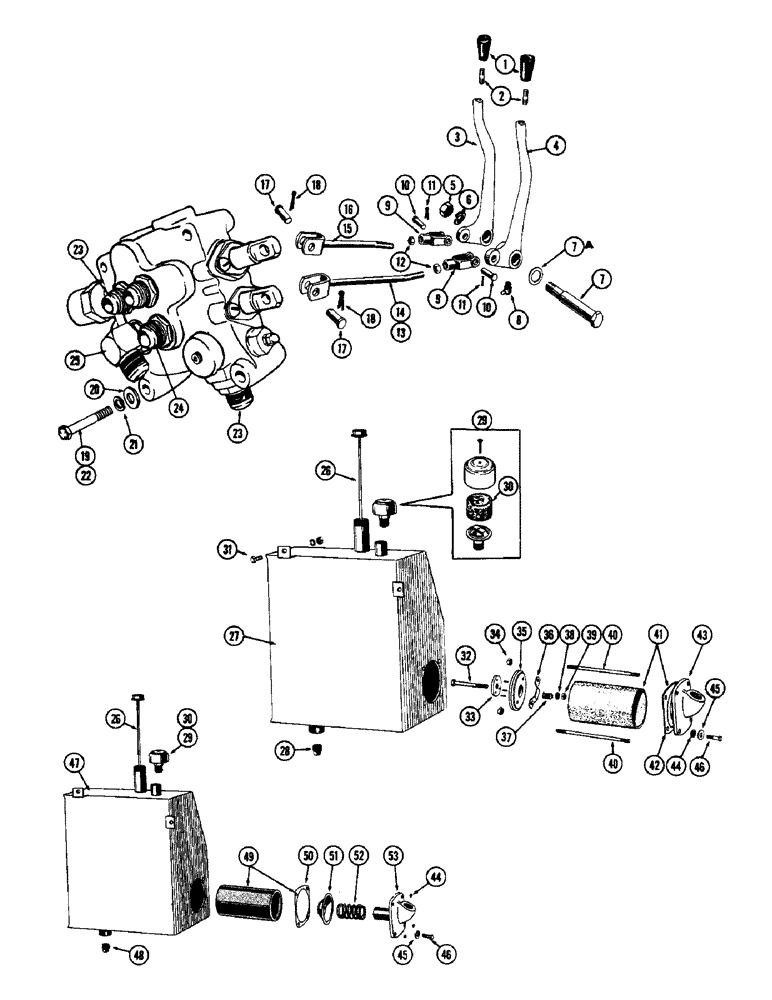

Запчасти Case W9A (124) - TWO SPOOL VALVE TILT AND LIFT CONTROLS, HYDRAULIC OIL TANK (08) - HYDRAULICS

1

A14051

GRIP

BALL - hand lever

2шт.

2

A16775

STUD

- ball to hand lever

2шт.

3

A12341

LEVER - hand, lift control (Outer)

1шт.

4

A12340

LEVER - hand, tilt control

1шт.

5

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - jam, 5/8" N.F., hex

1шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

7

A12342

STUD - pivot, control lever

1шт.

7a

A15783

SPACER

WASHER - lever stud

1шт.

8

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Lincoln 90º, 1/8" NPT x .84" lg

2шт.

9

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adj, 3/8"

2шт.

10

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Control lever 3/8" x 1.060"

2шт.

11

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex

2шт.

13

A12529

ROD - control, tilt (Used early model loader)

1шт.

14

A16916

ROD - control, tilt (Used on late model loaders)

1шт.

15

A12345

ROD - control, lift (Used w/early models)

1шт.

16

A16917

ROD - control, lift (Used on late model loaders)

1шт.

17

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2"

2шт.

18

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

19

15-872

X

BOLT - 1/2" x 4-1/2" N.C. hex

4шт.

20

195-33

WASHER,1/2"

- plain, SAE 1/2"

4шт.

21

92-8

LOCK WASHER,1/2"

4шт.

22

25-108

NUT,1/2"-13, G5

- 1/2" N.C., hex

4шт.

23

A12309

X

CONNECTOR - hyd. tube

4шт.

24

A16921

ADAPTER - hy. tube

1шт.

25

A15925

ELBOW UNION

ELBOW - valve pressure check

1шт.

26

A12286

CAP ASSY - filler and gauge, hydraulic oil tank and filter used after serial no. 8170389

1шт.

27

A16586

TANK ASSY - hydraulic oil, hydraulic oil tank and filter used after serial no. 8170389

1шт.

28

A17429

PLUG

- magnetic, oil drain, hydraulic oil tank and filter used after serial no. 8170389

1шт.

29

A9238

BREATHER

ASSY - oil tank, hydraulic oil tank and filter used after serial no. 8170389

1шт.

30

A10059

FILTER, ELEMENT

ELEMENT - filter, air, hydraulic oil tank and filter used after serial no. 8170389

1шт.

31

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F., hex, hydraulic oil tank and filter used after serial no. 8170389

4шт.

32

13-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

- 1/4" x 3-1/4" N.C. hex, hydraulic oil tank and filter used after serial no. 8170389

1шт.

33

A18785

COVER ASSY

COVER - relief opening, hydraulic oil tank and filter used after serial no. 8170389

1шт.

34

131-31

LOCK NUT,5/16"-24, G8

NUT - 5/16" N.F., ESSNA type "IE", hydraulic oil tank and filter used after serial no. 8170389

2шт.

35

A16582

VALVE

COVER - filter, rear, hydraulic oil tank and filter used after serial no. 8170389

1шт.

36

A16583

SPACER - spring, hydraulic oil tank and filter used after serial no. 8170389

1шт.

37

V14857

HANDLE

SPRING - filter relief, hydraulic oil tank and filter used after serial no. 8170389

1шт.

38

195-18

WASHER,1/4"

- plain, SAE, hydraulic oil tank and filter used after serial no. 8170389 1/4"

1шт.

39

131-506

NUT,1/4-20

NUT - flexloc, 1/4" N.C. hex, hydraulic oil tank and filter used after serial no. 8170389

1шт.

40

A16584

SPRING SEAT

STUD - mtg., filter, hydraulic oil tank and filter used after serial no. 8170389

2шт.

41

A16784

KIT

ELEMENT KIT - filter, hydraulic oil tank and filter used after serial no. 8170389

1шт.

42

A16735

GASKET

- filter element, hydraulic oil tank and filter used after serial no. 8170389

2шт.

43

A16585

COVER - filter, hydraulic oil tank and filter used after serial no. 8170389

1шт.

44

O9787AB

X

"O" RING - cover mtg. bolt, hydraulic oil tank and filter used after serial no. 8170389

4шт.

45

95-5

WASHER,3/8" x 7/8" x .083"

- wrought, 5/16" SAE, hydraulic oil tank and filter used after serial no. 8170389

4шт.

46

A16900

BOLT - mtg., filter cover, hydraulic oil tank and filter used after serial no. 8170389

4шт.

47

A12283

TANK ASSY - hydraulic oil, used prior to serial no. 8170389

1шт.

48

A17429

PLUG

- magnetic, oil drain, used prior to serial no. 8170389

1шт.

49

A16784

KIT

ELEMENT KIT - filter, used prior to serial no. 8170389

1шт.

50

A16735

GASKET

- filter cover, used prior to serial no. 8170389

2шт.

51

A12293

RETAINER - filter, used prior to serial no. 8170389

1шт.

52

A12292

SPRING - filter, used prior to serial no. 8170389

1шт.

53

A16580

COVER - filter, used prior to serial no. 8170389

1шт.
