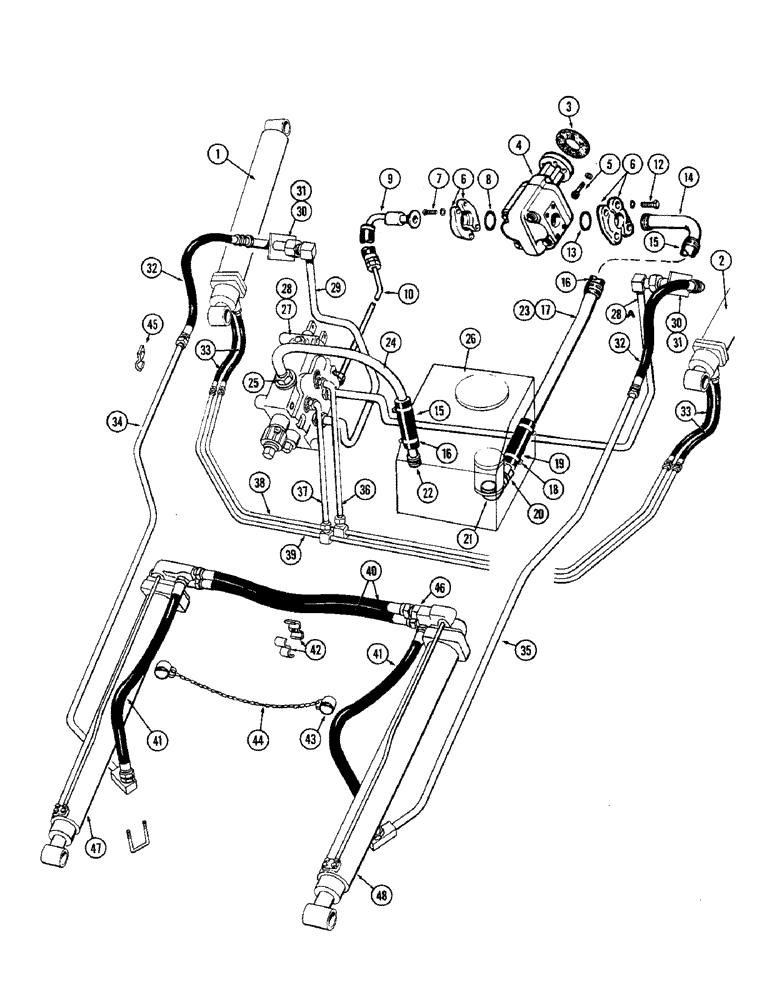

Запчасти Case W9A (120) - TWO SPOOL VALVE HYDRAULIC CIRCUIT, USED LATE MODEL LOADERS (08) - HYDRAULICS

1

A17861

CYLINDER ASSY - lift, L.H. (Repair, Figure 138)

1шт.

2

A17860

CYLINDER ASSY - lift, R.H. (Repair, Figure 138)

1шт.

3

A12304

GASKET,0.4mm Thk

- hyd. pump mtg

1шт.

4

A12302

PUMP, HYDRAULIC

PUMP ASSY - hydraulic (Repair, Figure 132)

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

6

A12306

FLANGE

CLAMP - split flange, outlet hose

2шт.

7

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

8

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

"O" RING - hose to pump

1шт.

9

A12305

HOSE - pump outlet to press. tube

1шт.

10

A14469

TUBE - pump hose to valve press. inlet

1шт.

11

A12301

CLAMP,Half

CLAMP - split flange, inlet tube

2шт.

12

113-309

BOLT - 7/16" x 1-3/8" N.C., hex

4шт.

13

A12139

O-RING

GASKET - pump inlet elbow

1шт.

14

A12300

ELBOW - pump inlet

1шт.

15

A12299

HYDRAULIC HOSE,1.25" ID x 5.50", SAE20R1

1.25" ID x 5.50", SAE 20R1 - Pump to tube & return tube

2шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" - 1-3/4"

4шт.

17

A12297

TUBE - suction, hyd. pump

1шт.

18

A12303

INTAKE AIR HOSE,1.50" ID

x 7.50", SAE 20R1 - Pump suction at tank 1.50" ID

1шт.

19

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

20

A12295

NIPPLE - suction tube hose

1шт.

21

221-1391

ELBOW - reducing, 1-1/2" - 1-1/4" x 90 degrees

1шт.

22

A12294

NIPPLE, LUBE

NIPPLE - oil return hose

1шт.

23

A12298

CLAMP

- suction tube

1шт.

24

A12314

TUBE - oil return, Serial Range: valve-tank

1шт.

25

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

"O" RING - return tube to tank

1шт.

26

A16586

TANK ASSY - hyd. oil resv. (Rep. Figure 124) (After S/N 8170389)

1шт.

27

A19983

LOCK VALVE

VALVE ASSY - control (2 spool) (Repair, Figure 128)

1шт.

28

A18048

VALVE ASSY - control (2 spool) (Rep. Figure 128) (Use A19983)

1шт.

27

A16785

VALVE ASSY - control (2 spool) (Order A19983)

1шт.

28a

A16915

TUBE - valve to junction tube, L.H.)

1шт.

29

A16914

TUBE - valve to junction tube, R.H.)

1шт.

30

A16913

PIPE ASSY - junction, hyd

2шт.

31

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

32

A14473

HOSE - junction tube to lift arm

2шт.

33

A12333

HOSE

- lift cylinder

4шт.

34

A12336

TUBE

- tilt cylinder, intermediate, R.H.

1шт.

Block on the ends of tube, not used

1шт.

35

A12337

TUBE - tilt cyl., intermediate L.H.

1шт.

Block on the ends of tube, not used

1шт.

36

A12323

TUBE - valve to inner manifold

1шт.

37

A12328

TUBE - valve to outer manifold

1шт.

38

A12327

TUBE

- manifold, inner lift cyl.

1шт.

39

A12331

TUBE

- manifold, outer lift cyl.

1шт.

40

A12339

HOSE ASSY.

HOSE - cross over, tilt cyl.

2шт.

41

A12335

HOSE ASSY.

HOSE - tube to tilt cylinder

2шт.

42

A12332

CLAMP

- hydraulic hose

4шт.

43

A13241

CLAMP - tilt cyl. hose to tie chain

2шт.

44

A13242

O-RING

CHAIN - tie, tilt cyl. cross over hose

1шт.

45

A12308

CLAMP

CLIP - retainer, hyd. tube

5шт.

46

A12338

X

ADAPTER - hose to tilt cylinder

2шт.

47

A17862

CYLINDER ASSY - hyd. tilt, R.H. (Repair, Figure 140)

1шт.

A17633

U

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

92-5

LOCK WASHER,5/16"

1шт.

48

A17863

CYLINDER ASSY - hyd. tilt, L.H. (Repair, Figure 140)

1шт.
