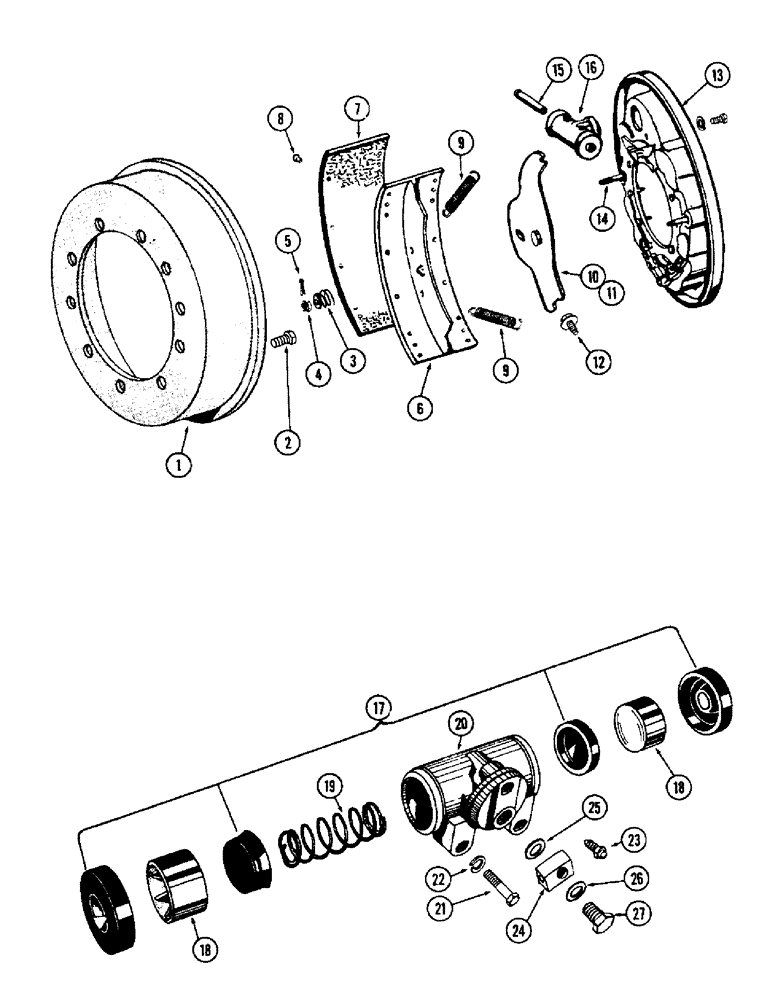

Запчасти Case W9A (156) - FRONT BRAKE ASSEMBLY, A12923 WHEEL BRAKE CYLINDER (07) - BRAKES

1

A12935

DRUM - brake

2шт.

2

A14962

BOLT,5/8" x 1 1/2", Gr 8

-, Serial Range: drum-hub

20шт.

3

A13113

SPRING

- guide pin

4шт.

4

25-136

NUT - slotted, 3/8" N.F. hex

4шт.

5

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

4шт.

6

A12932

SHOE - brake

4шт.

7

A12934

LINING

KIT

1шт.

8

A12933

RIVET

48шт.

9

A12936

SPRING - return, brake shoe

8шт.

10

A12919

LEVER - front L.H. and rear R.H. shoe

2шт.

11

A12920

LEVER - front R.H. and rear L.H. shoe

2шт.

12

A13132

BOLT

- shoe adjusting

4шт.

13

A12927

PLATE - backing

2шт.

14

A12918

AXLE PIN

PIN - guide

4шт.

15

A12921

PUSH ROD - cylinder

4шт.

16

A12923

CYLINDER BLOCK

CYLINDER - wheel

2шт.

A12923

CYLINDER BLOCK

CYLINDER - brake, wheel

2шт.

17

A12866

CYLINDER

KIT - piston cup and boots, A12923 wheel brake cylinder

1шт.

18

A13046

PISTON - cylinder, A12923 wheel brake cylinder

2шт.

19

A13045

SPRING - piston, A12923 wheel brake cylinder

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - piston, A12923 wheel brake cylinder

4шт.

21

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

A12923 wheel brake cylinder Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

22

92-6

LOCK WASHER,3/8"

A12923 wheel brake cylinder 3/8"

4шт.

23

A12924

SCREW,7/16" - 20

- bleeder, A12923 wheel brake cylinder

2шт.

24

A12925

FITTING

- inlet, A12923 wheel brake cylinder

2шт.

25

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inner, connection, A12923 wheel brake cylinder

2шт.

26

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer, connection, A12923 wheel brake cylinder

2шт.

27

A12926

BOLT

- connection to cylinder, A12923 wheel brake cylinder

2шт.
