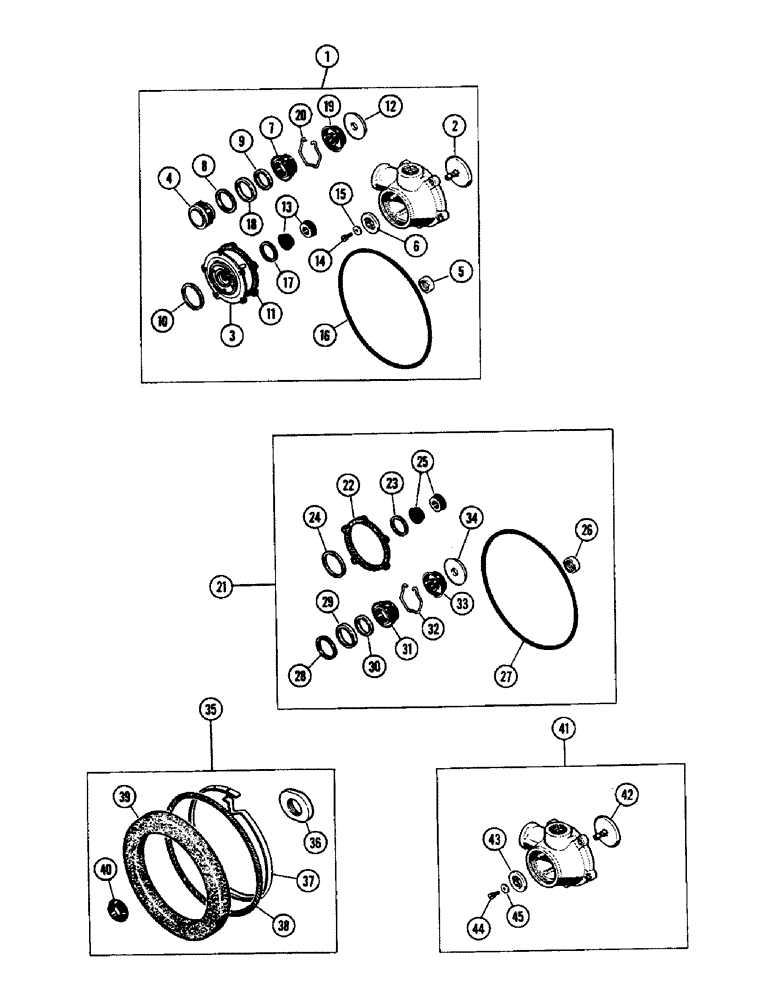

Запчасти Case W9A (080) - HYDROVAC CYLINDER REPAIR KITS, A19734 MAJOR REPAIR KIT (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
A19734
KIT
REPAIR KIT - major, cylinder
1шт.
2
A19737
SEAL ASSY - valve (Repair A19670 body)
1шт.
3
A19738
DIAPHRAGM
ASSY - cylinder
1шт.
4
A19699
VALVE
ASSY - master cyl. (1" dia.)
1шт.
5
NSS
NOT SOLD SEPARAT
SEAL - push rod
1шт.
6
A19739
SEAL - valve (Repairs A19670 body)
1шт.
7
NSS
NOT SOLD SEPARAT
CUP - piston, hyd.
1шт.
8
A19703
GASKET
- cap, end
1шт.
9
A19707
SEAL
- slave tube
1шт.
10
A19666
RING
GASKET - cover
1шт.
11
A19673
GASKET - valve body
1шт.
12
NSS
NOT SOLD SEPARAT
WASHER - push rod
1шт.
13
NSS
NOT SOLD SEPARAT
CUP - piston, hydraulic
2шт.
14
A19740
SCREW - seal assembly (Special)
1шт.
15
A19741
WASHER - seal assembly (Special)
1шт.
16
A19695
SEAL
RING - seal, cylinder
1шт.
17
NSS
NOT SOLD SEPARAT
SEAL - fitting, valve
2шт.
18
A19706
SEAL
- tube, slave
1шт.
19
NSS
NOT SOLD SEPARAT
CUP - piston, hydraulic
1шт.
20
NSS
NOT SOLD SEPARAT
RING - snap
1шт.
21
A19736
KIT
REPAIR KIT - minor, cylinder, A19736 minor repair kit
1шт.
22
A19673
GASKET - valve body, A19736 minor repair kit
1шт.
23
NSS
NOT SOLD SEPARAT
SEAL - valve fitting, A19736 minor repair kit
1шт.
24
A19666
RING
GASKET - cover, A19736 minor repair kit
1шт.
25
NSS
NOT SOLD SEPARAT
CUP - piston, hydraulic, A19736 minor repair kit
2шт.
26
NSS
NOT SOLD SEPARAT
SEAL - push rod, A19736 minor repair kit
1шт.
27
A19695
SEAL
RING - seal, cylinder, A19736 minor repair kit
1шт.
28
A19703
GASKET
- end cap, A19736 minor repair kit
1шт.
29
A19706
SEAL
- tube, slave, A19736 minor repair kit
1шт.
30
A19707
SEAL
- tube, slave, A19736 minor repair kit
1шт.
31
NSS
NOT SOLD SEPARAT
CUP - piston, hydraulic, A19736 minor repair kit
1шт.
32
NSS
NOT SOLD SEPARAT
RING - snap, A19736 minor repair kit
1шт.
33
NSS
NOT SOLD SEPARAT
CUP - piston, hydraulic, A19736 minor repair kit
1шт.
34
NSS
NOT SOLD SEPARAT
WASHER - push rod, A19736 minor repair kit
1шт.
35
A19735
KIT
PACKING KIT - piston, cylinder
1шт.
36
A19683
NUT - retainer, piston felt, A19735 piston packing kit
1шт.
37
A19685
RING
- packing, piston, A19735 piston packing kit
1шт.
38
A19686
GASKET
FELT - piston, A19735 piston packing kit
1шт.
39
NSS
NOT SOLD SEPARAT
PACKING - piston, A19735 piston packing kit
1шт.
40
A19689
REPAIR KIT
SEAL - piston rod, A19735 piston packing kit
1шт.
41
A19742
REPAIR KIT
- poppet, valve, A19742 poppet kit
1шт.
42
A19737
SEAL ASSY - valve (Repair A19670 body), A19742 poppet kit
1шт.
43
A19739
SEAL - valve, A19742 poppet kit
1шт.
44
A19740
SCREW - seal assembly (Special), A19742 poppet kit
1шт.
45
A19741
WASHER - seal assembly (Special), A19742 poppet kit
1шт.
Выбрано товаров: 45
