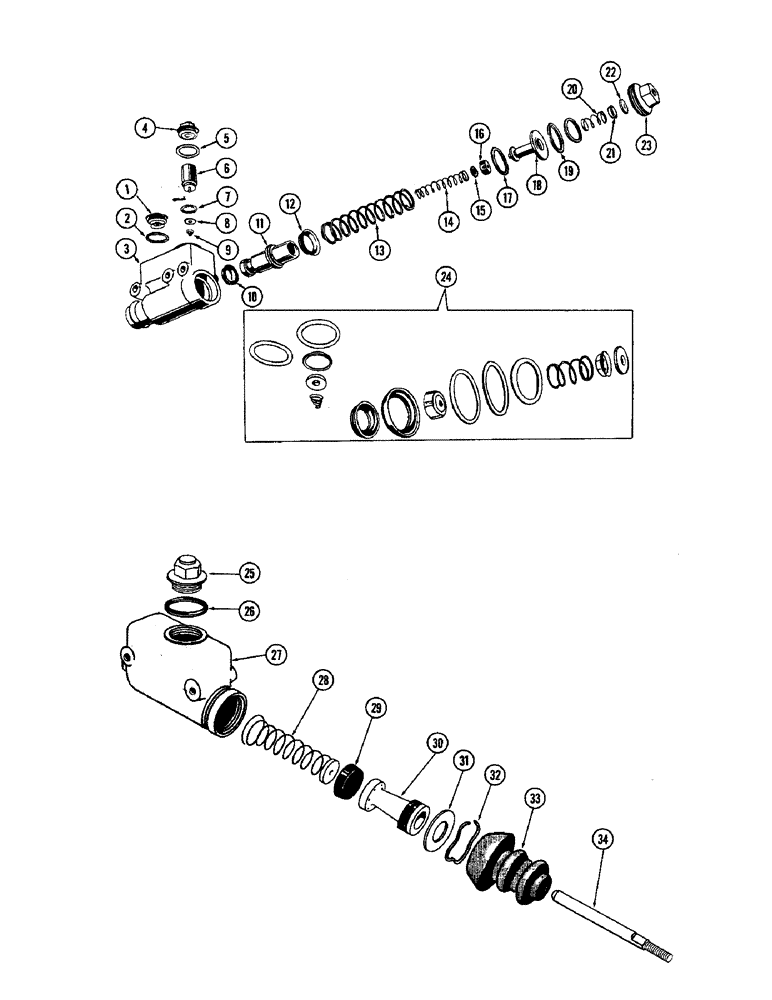

Запчасти Case W9A (076) - A13205 MASTER CYLINDER (HYDRAULIC BRAKE), A18525 MASTER (07) - BRAKES

A13205

CYLINDER

ASSY - master, hyd. brake

1шт.

1

A12888

FILLER CAP

PLUG ASSY - filler, cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET - filler plug (Order A13223)

1шт.

3

NSS

NOT SOLD SEPARAT

BODY ASSY - cylinder (Order A13205)

1шт.

4

A12889

PLUG

- filler, cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET - filler plug (Order A13223)

1шт.

6

A12898

SWITCH

VALVE ASSY - relief, cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

"O" RING - relief valve (Order A13223)

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - relief valve spring (Order A13223)

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING - relief valve (Order A13223)

1шт.

10

NSS

NOT SOLD SEPARAT

CUP - secondary, piston (Order A13223)

1шт.

11

A13221

PISTON - secondary, cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

CUP - high pressure (Order A13223)

1шт.

13

A12893

VALVE SPRING

SPRING - return, secondary

1шт.

14

A12892

VALVE SPRING

SPRING - return, primary

1шт.

15

A13222

RETAINER - cup

1шт.

16

NSS

NOT SOLD SEPARAT

CUP - piston, primary (Order A13223)

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - oil, primary piston (Order A13223)

2шт.

18

A13220

PISTON - primary, cylinder

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - end plug (Order A13223)

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING - return, piston (Order A13223)

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE - check (Order A13223)

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - check valve (Order A13223)

1шт.

23

A12894

PLUG - end, cylinder

1шт.

24

A13223

KIT

REPAIR KIT - master cylinder

1шт.

A18525

CYLINDER

ASSY - master, hydrovac brake

1шт.

25

A19754

X

CAP - filler, A18525 master cylinder (hydrovac brake)

1шт.

26

A19755

GASKET

- filler cap, A18525 master cylinder (hydrovac brake)

1шт.

27

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order A18525), A18525 master cylinder (hydrovac brake)

1шт.

28

A19756

VALVE SPRING

SPRING - return, A18525 master cylinder (hydrovac brake)

1шт.

29

A19757

CUP

- primary, piston, A18525 master cylinder (hydrovac brake)

1шт.

30

NSS

NOT SOLD SEPARAT

PISTON ASSY - cylinder (Order A19762), A18525 master cylinder (hydrovac brake)

1шт.

31

A19759

PLATE

- stop, A18525 master cylinder (hydrovac brake)

1шт.

32

A19760

RING

LOCKWIRE - stop plate, A18525 master cylinder (hydrovac brake)

1шт.

33

A18527

BELLOWS

BOOT - push rod, cylinder, A18525 master cylinder (hydrovac brake)

1шт.

34

A18526

ROD

- push, master cylinder, A18525 master cylinder (hydrovac brake)

1шт.

A19762

KIT

REPAIR KIT - master cyl. (Incl. ref. 29, 30, 32, & 33), A18525 master cylinder (hydrovac brake)

1шт.
