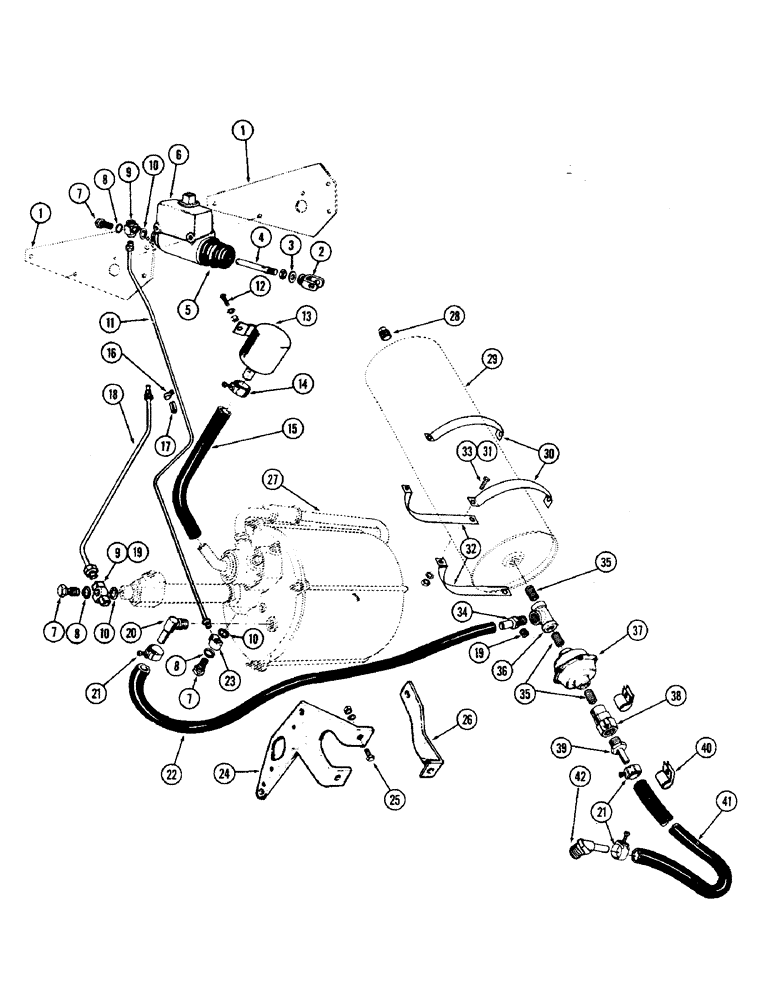

Запчасти Case W9A (074) - HYDROVAC BRAKE SYSTEM, GASOLINE (07) - BRAKES

1

A18528

PLATE - mtg., pedal & master cyl.

2шт.

2

A12442

YOKE - push rod, master cyl.

1шт.

3

195-29

WASHER,7/16"

- plain, SAE 7/16"

1шт.

4

A18526

ROD

- push, master cylinder

1шт.

5

A18527

BELLOWS

BOOT - push rod to master cyl.

1шт.

6

A18525

CYLINDER

ASSY - master brake (Repair, Figure 76)

1шт.

7

A12864

BOLT

- hydraulic fitting

3шт.

8

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - hydraulic fitting (Small)

3шт.

9

A12863

SUN VISOR

BLOCK - hydraulic fitting

2шт.

10

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- hydraulic fitting (Large)

3шт.

11

A18523

TUBE ASSY - master cyl. to hydrovac cyl.

1шт.

12

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

13

A18529

CLEANER ASSY - air, hydrovac cyl. (Repair, Figure 82)

1шт.

14

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" - 1-3/4")

2шт.

15

A18530

HOSE

- air cleaner to hydrovac cyl.

1шт.

16

A7922

CLIP

- hydraulic brake tube

2шт.

17

A12458

SLEEVE

LOOM - brake, Serial Range: tube-clip

2шт.

18

A18524

TUBE ASSY - hydrovac cyl, to brake tee

1шт.

19

222-1011

HYD CONNECTOR,3/8"-24 Inv Fl x 1/8" NPT

PLUG - pipe, 1/8" sq. hd.

2шт.

20

A18519

NIPPLE - hydrovac inlet hose (90 degrees)

1шт.

21

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, (9/16" - 1-1/6")

4шт.

22

A18518

HOSE - hydrovac cyl. to air tank

1шт.

23

A18531

FITTING

- hydraulic brake line

1шт.

24

A18521

BRACKET - mtg., hydrovac cyl.

1шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

26

A18522

BRACKET - support, hydrovac cyl.

1шт.

27

A18520

FILTER ASSY

CYLINDER ASSY - hydrovac unit (Repair, Figure 78)

1шт.

28

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" sq. hd.

1шт.

29

A18514

TANK

ASSY - air reservoir

1шт.

30

A18516

STRAP - mtg., air tank, upper

2шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

32

A18517

STRAP - mtg., air tank, lower

2шт.

33

75-432

SCREW

- mach., 1/4" x 2" N.C., rd. hd.

2шт.

34

A18515

SUN VISOR

NIPPLE - inlet, Serial Range: hose-tee

1шт.

35

221-1185

FITTING

NIPPLE - close, 1/2" pipe

3шт.

36

221-1424

TEE,Pipe, 1/2" NPT

- pipe, 1/2"

1шт.

37

A18532

CLEANER

FILTER ASSY - air tank reservoir (Repair, Figure 82)

1шт.

38

A18513

LOCK VALVE

VALVE ASSY - check, hydrovac (Repair, Figure 82)

1шт.

39

A18512

FLOAT

NIPPLE - check valve inlet

1шт.

40

O7798AB

X

CLIP - vacuum hose

2шт.

41

A18510

INTAKE AIR HOSE,0.50" ID x 60.00", SAE 40R3A

0.50" ID x 60.00", SAE 40R3H - Check valve to intake manifold

1шт.

42

A18509

FITTING

NIPPLE - elbow, intake manifold (45 degrees)

1шт.
