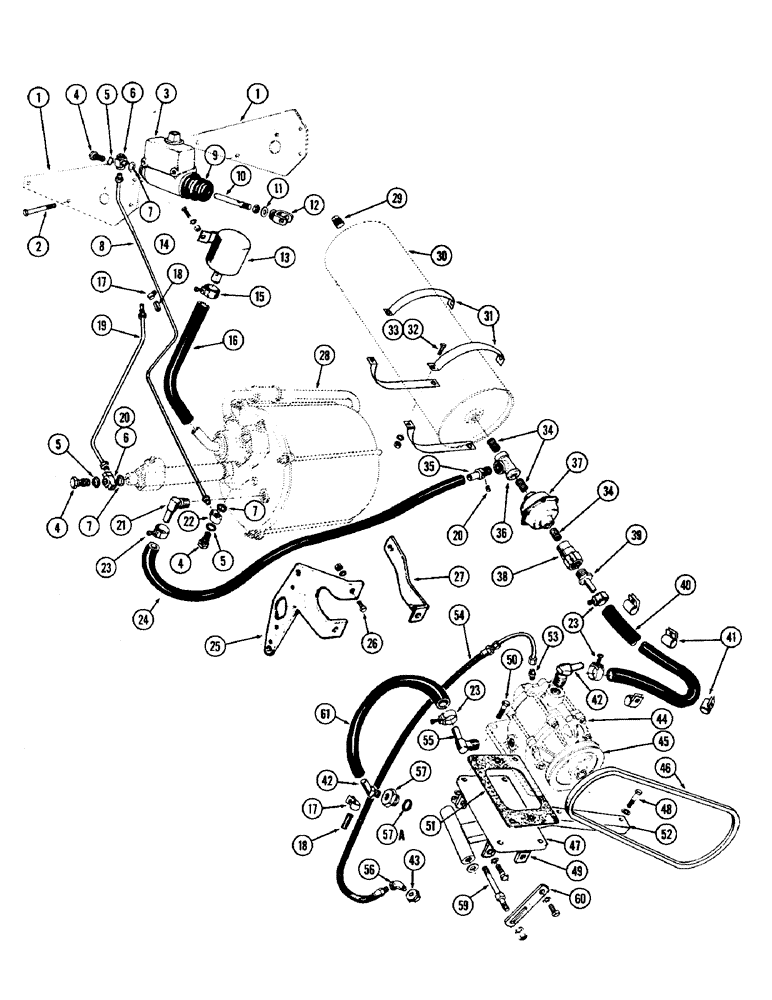

Запчасти Case W9A (072) - HYDROVAC BRAKE SYSTEM, DIESEL (07) - BRAKES

1

A18528

PLATE - mtg., pedal & master cyl.

2шт.

2

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8" x 3-1/2" N.C., hex

2шт.

3

A18525

CYLINDER

ASSY - master brake (Repair Figure 76)

1шт.

4

A12864

BOLT

- fitting, hydrovac brake line

3шт.

5

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - hydrovac brake fitting (Small)

3шт.

6

A12863

SUN VISOR

BLOCK - hydraulic fitting

2шт.

7

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- hydrovac brake fitting (Large)

3шт.

8

A18523

TUBE ASSY - master cyl. to hydrovac unit

1шт.

9

A18527

BELLOWS

BOOT - master cyl., push rod

1шт.

10

A18526

ROD

- push, master brake cylinder

1шт.

11

195-25

WASHER,3/8"

- plain, SAE 3/8"

4шт.

12

A12442

YOKE - push rod

1шт.

13

A18529

CLEANER ASSY - air, hydrovac cyl. (Repair, Figure 82)

1шт.

14

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, air cleaner (1-3/16" - 1-3/4")

2шт.

16

A18530

HOSE

- air cleaner to hydrovac cyl.

1шт.

17

A7922

CLIP

- brake line

2шт.

18

A12458

SLEEVE

LOOM - brake line clip

2шт.

19

A18524

TUBE ASSY - hydrovac cyl. to brake line tee

1шт.

20

222-1011

HYD CONNECTOR,3/8"-24 Inv Fl x 1/8" NPT

PLUG - pipe, 1/8" sq. hd.

2шт.

21

A18519

NIPPLE - elbow, 90 degrees

1шт.

22

A18531

FITTING

- brake cyl. tube

1шт.

23

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose (9/12" - 1-1/16")

6шт.

24

A18518

HOSE - hydrovac cyl. to air tank

1шт.

25

A18521

BRACKET - mtg., hydrovac cyl.

1шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

27

A18522

BRACKET - support, hydrovac cyl.

1шт.

28

A18520

FILTER ASSY

CYLINDER ASSY - hydrovac (Repair, Figure 78)

1шт.

29

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" sq. hd.

1шт.

30

A18514

TANK

ASSY - air reservoir, hydrovac

1шт.

31

A18516

STRAP - mtg., air tank, upper

2шт.

32

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

33

75-432

SCREW

- mach., 1/4" x 2" N.C., rd. hd.

2шт.

34

211-1185

NIPPLE - close, 1/2" pipe

3шт.

35

A18515

SUN VISOR

NIPPLE - hydrovac inlet hose

1шт.

36

221-1424

TEE,Pipe, 1/2" NPT

- pipe, 1/2"

1шт.

37

A18532

CLEANER

FILTER ASSY - air, vacuum pump (Repair, Figure 82)

1шт.

38

A18513

LOCK VALVE

VALVE ASSY - check, hydrovac (Repair, Figure 82)

1шт.

39

A18512

FLOAT

NIPPLE - check valve

1шт.

40

A18533

HOSE

- air intake to vacuum pump

1шт.

41

O7798AB

X

CLIP - vacuum hose

4шт.

42

A18509

FITTING

NIPPLE - vacuum hose & timing plug (45 degrees)

2шт.

43

221-1056

BUSHING

- reducer, 1/2" x 3/8" pipe

1шт.

44

A18534

PUMP

ASSY - vacuum (Repair, P. 82)

1шт.

45

A18536

PULLEY

- vacuum pump

1шт.

46

A18537

V-BELT,39.00" L

Drive, Vacuum Pump 39.00" L

1шт.

47

A19580

BASE ASSY - mtg., vacuum pump

1шт.

48

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

49

A19497

ANGLE - mounting base

1шт.

50

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1" N.C., hex

4шт.

51

A18535

GASKET

- vacuum, Serial Range: pump-base

1шт.

52

A18542

BRACKET ASSY - mtg., pump & base

1шт.

53

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR - 1/4" tube x 1/4" P.T. (#68 FL.)

1шт.

54

A18547

HOSE

ASSY - vacuum pump oil press.

1шт.

REF#54 THE NUT ON THIS TUBE THAT ATTACHES TO ITEM 53 IS PART 222-112,ALSO THE SLEEVE IS PART 222-102. 11/8/96

1шт.

55

A18548

X

NIPPLE - pump return hose (90 degrees)

1шт.

56

A18549

NIPPLE - return hose to timing plug

1шт.

57

A18550

PLUG

- timing window

1шт.

57a

O9890AB

WASHER - timing plug

1шт.

58

221-1053

BUSHING

- reducer, 3/8" to 1/4" pipe

1шт.

59

A18546

BOLT (SPREADER)

BOLT - pump support strap

1шт.

60

A18545

STRAP - adj., vacuum pump

1шт.

61

A18551

HOSE,0.50" ID x 14.00", SAE 40R3A

0.50" ID x 14.00", SAE 40R3H - Oil return

1шт.
