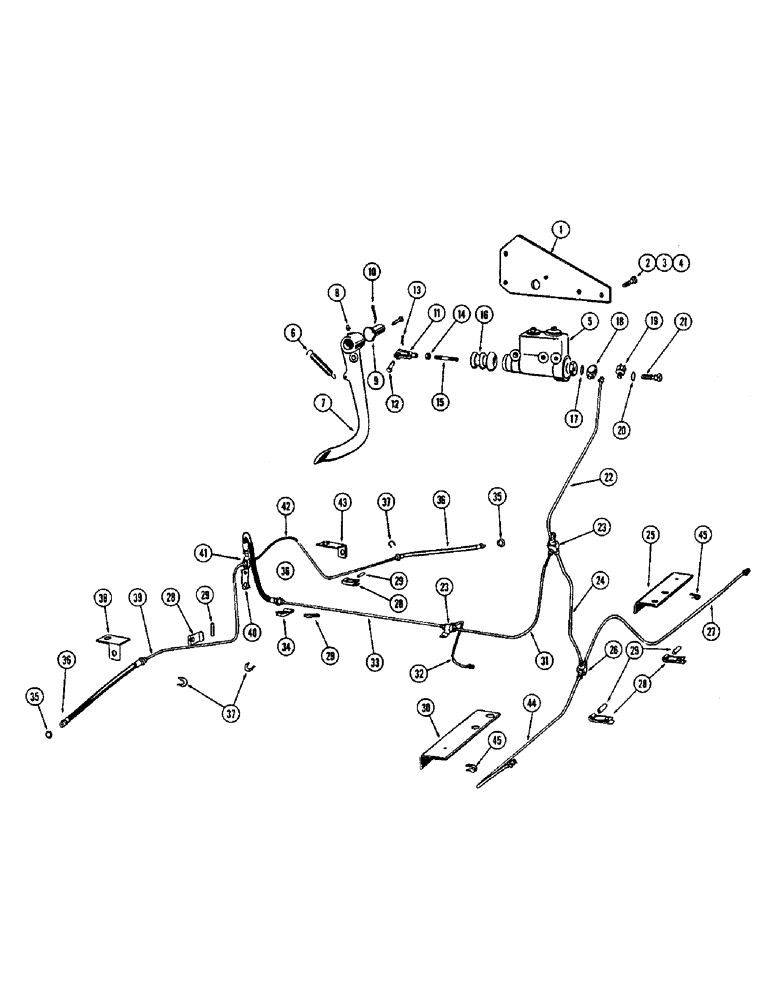

Запчасти Case W9A (070) - HYDRAULIC BRAKE SYSTEM (07) - BRAKES

1

A12435

PLATE - mtg., brake pedal & master cyl.

2шт.

2

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F., hex

4шт.

3

14-756

BOLT,Hex, 7/16" - 20 x 3-1/2", Gr 5

- 7/16" x 3-1/2" N.F., hex

1шт.

4

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

5

A13205

CYLINDER

ASSY - brake, master (Repairs Figure 76)

1шт.

6

A10436

VALVE SPRING

SPRING - return, brake pedal

1шт.

7

A13204

PEDAL ASSY - brake

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/2" str. Lincoln (Grease)

1шт.

9

A12437

PIN - pivot, brake pedal

1шт.

10

132-93

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

11

A12442

YOKE - push rod, master cyl.

1шт.

12

O6561AB

PIN - yoke, push rod

1шт.

13

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

14

25-157

JAM NUT,Jam, 7/16"-20, G5

- jam, 7/16" N.F., hex.

1шт.

15

A12438

ROD - push, master brake cyl.

1шт.

16

A12434

BOOT

- master cyl. push rod (Rubber)

1шт.

17

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- master cyl., bolt (Large)

1шт.

18

A12863

SUN VISOR

BLOCK - fitting, master cyl.

1шт.

19

A12491

SWITCH

ASSY - brake, stop light

1шт.

20

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - master cyl. block bolt (Small)

1шт.

21

A12864

BOLT

- hyd. brake block

1шт.

22

A12443

TUBE ASSY - brake, Serial Range: cyl.-tee

1шт.

23

A12451

FITTING

TEE - cross, brake tube

2шт.

24

A12444

TUBE ASSY- tee to axle hsg tee

1шт.

25

A12521

BRACKET - mtg., frt. axle brake line, L.H.

1шт.

26

A12452

FITTING

TEE - brake line, frt. axle hsg

1шт.

27

A12450

TUBE ASSY - axle tee to L.H. brake cyl.

1шт.

28

A12454

CLIP

- brake tube to axle hsg.

4шт.

29

A12458

SLEEVE

LOOM - brake tube

5шт.

30

A12520

BRACKET - mtg., frt. axle brake line, R.H.

1шт.

31

A12445

TUBE ASSY - cross tee to R.H. channel tee

1шт.

32

A16772

TUBE ASSY - frame channel, Serial Range: tee-trans

1шт.

33

A12446

TUBE ASSY - from channel tee to brake hose

1шт.

34

A12453

CLIP - channel brake tube

1шт.

35

A12643

WASHER

- rear brake line hose

2шт.

36

A12457

X

HOSE - brake line, rear axle

3шт.

37

A12628

WASHER

"C" WASHER - brake line hose

3шт.

38

A17768

BRACKET - mtg., brake line hose, R.H.

1шт.

39

A12447

TUBE

ASSY - rear axle tee to R.H. hose

1шт.

40

A13101

STRAP - mtg. rear tee and brake line

1шт.

41

A13100

TEE

- rear axle brake line

1шт.

42

A12448

TUBE ASSY - brake, rear axle tee to L.H. hose

1шт.

43

A17769

BRACKET - mtg., rear axle brake line, L.H.

1шт.

44

A12449

TUBE ASSY- axle tee to R.H. brake cyl.

1шт.

45

O4277AB1

CLIP - brake tube

2шт.
