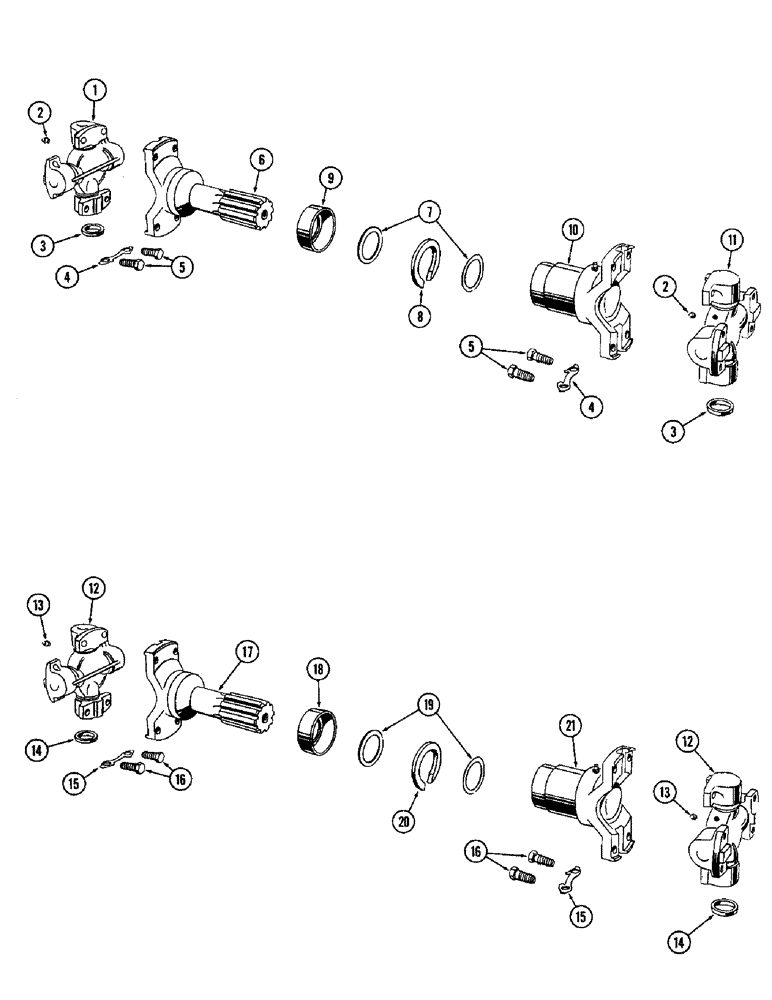

Запчасти Case W9A (160) - FRONT DRIVE SHAFT AND UNIVERSAL JOINT, REAR DRIVE SHAFT AND (06) - POWER TRAIN

A12002

SHAFT ASSY - frt. axle drv. (Incl. ref. 1 thru 11)

1шт.

1

A12878

KIT

CROSS KIT - slip yoke (Includes dust shield, bearings, rollers, cork washers, retaining washers, fitting, and bearing)

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

3

A12871

WASHER - cork

8шт.

4

A12869

LARGE PLATE

PLATE - lock

8шт.

5

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

CAPSCREW - lock plate

16шт.

16

A12874

YOKE

- slip

1шт.

7

A12868

WASHER

- retainers

2шт.

8

A12873

SEAL

WASHER - felt

1шт.

9

A12867

CAP

RETAINER - felt washer

1шт.

10

A12872

TUBE & YOKE ASSY

1шт.

11

A12877

KIT

CROSS KIT - tube yoke (Includes dust shield, bearings, rollers, cork washers, retaining washers, fittings and bearing)

1шт.

A12004

SHAFT ASSY - rear axle drv. (Incl. ref. 12 thru 21)

1шт.

12

A12877

KIT

CROSS KIT - incl. dust shield, bearings, rollers, cork washers, retaining washers, fittings and bearing), rear drive shaft and universal joint

2шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper, Rear drive shaft and universal joint 1/4"-28 NPT x .54" lg

2шт.

14

A12871

WASHER - cork, rear drive shaft and universal joint

8шт.

15

A12869

LARGE PLATE

PLATE - lock, rear drive shaft and universal joint

8шт.

16

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

CAPSCREW - lock plate, rear drive shaft and universal joint

16шт.

17

A12876

TUBE & YOKE ASSY, rear drive shaft and universal joint

1шт.

18

A12867

CAP

RETAINER - felt washer, rear drive shaft and universal joint

1шт.

19

A12868

WASHER

- retainer, rear drive shaft and universal joint

2шт.

20

A12873

SEAL

WASHER - felt, rear drive shaft and universal joint

1шт.

21

A12875

YOKE - slip, rear drive shaft and universal joint

1шт.
