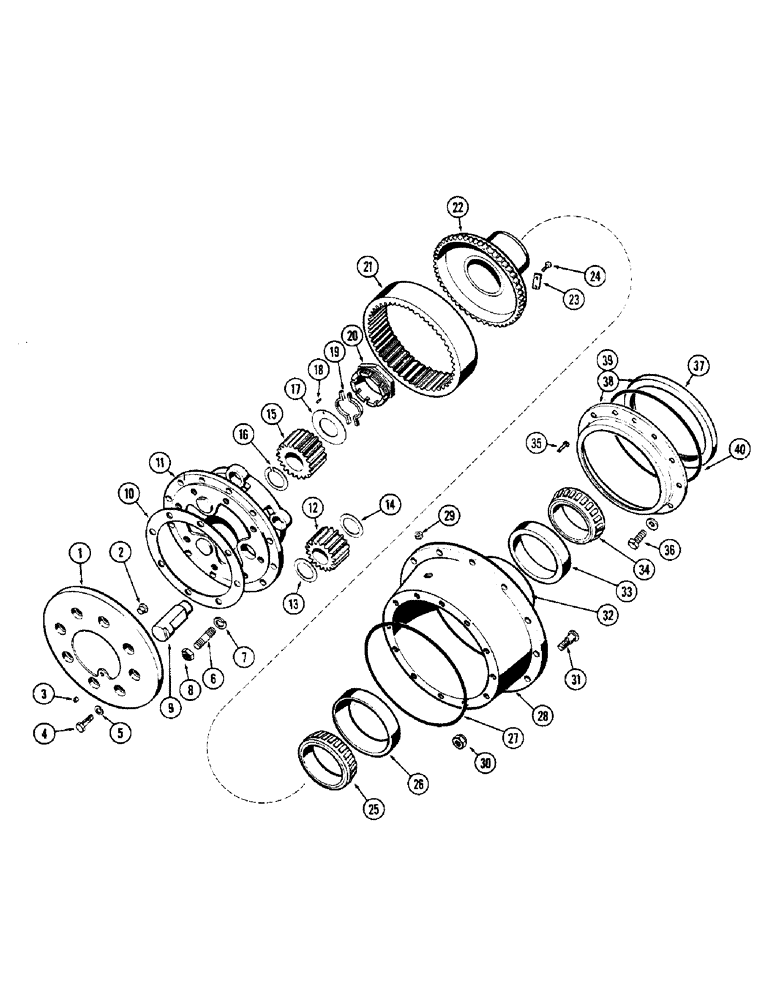

Запчасти Case W9A (154) - REAR AXLE PLANETARY (06) - POWER TRAIN

1

A12908

COVER

- planetary spider

2шт.

2

A12980

BUTTON

- thrust

2шт.

3

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - oil level, 1/4" P.T. sq. sckt. hd.

2шт.

4

113-307

X

BOLT - 7/16" x 1-1/8" N.C. hex. hd

1шт.

5

92-7

LOCK WASHER,7/16"

1шт.

6

A12945

X

STUD -, Serial Range: spider-hub

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

129-545

NUT,1/2"-20, G8

2шт.

9

A40146

SHAFT

- planetary pinion

6шт.

10

A12910

GASKET,0.4mm Thk

- spider cover

2шт.

11

A12909

U-JOINT SPIDER

SPIDER - planetary

2шт.

12

A12901

GEAR

PINION - planetary

6шт.

13

A12904

WASHER

- outer, pinion thrust

6шт.

14

A40145

WASHER

- inner, pinnion thrust

6шт.

15

A12905

GEAR

- sun

2шт.

16

A12907

O-RING,1.74" ID x 0.1205"

SNAP RING - sun gear

2шт.

17

A13103

WASHER

- thrust, sun gear

2шт.

18

A13137

AXLE PIN

PIN - thrust washer

4шт.

19

A12953

RETAINER

LOCK - bearing nut

4шт.

20

A13104

BEARING LOCK NUT

NUT - hub bearing

2шт.

21

A12911

GEAR

- ring

2шт.

22

A12913

HUB CAP

HUB - ring gear

2шт.

23

A12914

LOCK ASSY

LOCK - hub

8шт.

24

G49000

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Drilled

- lock

1шт.

25

A12915

ROLLER BEARING,4.25" ID x 1.375"

CONE - outer bearing (Timken #48190)

2шт.

26

A12916

BEARING CUP

CUP - outer bearing (Timken #48120)

2шт.

27

A12900

X

GASKET -, Serial Range: spider-hub

2шт.

28

A12899

HUB - wheel (Incl. ref. 6, 26 & 33)

2шт.

29

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - magnetic drain, 3/4" P.T. ctsk

2шт.

30

A12522

WHEEL NUT

- wheel bolt

2шт.

31

A13112

STUD

-, Serial Range: wheel-hub

2шт.

32

A12917

X

SLINGER - oil

2шт.

33

A7892

BEARING, CUP

CUP - inner bearing (Timken #493)

2шт.

34

A7893

ROLLER BEARING,3.375" ID x 1.172"

CONE - inner bearing (Timken #497)

2шт.

35

A13119

PIN - oil seal retainer (Before loader #8208309)

2шт.

36

A40149

BOLT - oil seal ret. (Loader #8208309 and after)

1шт.

37

A12996

X

OIL SEAL - hub (Before loader #8208309)

2шт.

A16653

OIL SEAL

- hub (Loader #8208309 and after

2шт.

38

A13003

RETAINER

ASSY - (Before loader #8208309)

2шт.

39

A55766

OIL SEAL

RETAINER ASSY - (Includes A16653 oil seal) (Loader #8208309 and after)

2шт.

40

A13022

O-RING,1/3" ID x 1/9" OD

SEAL RING - retainer (Before loader #8208309)

2шт.

A55763

O-RING,5.859" ID x 6.125" OD

SEAL RING - ret. (Loader #8208309 & after)

2шт.
