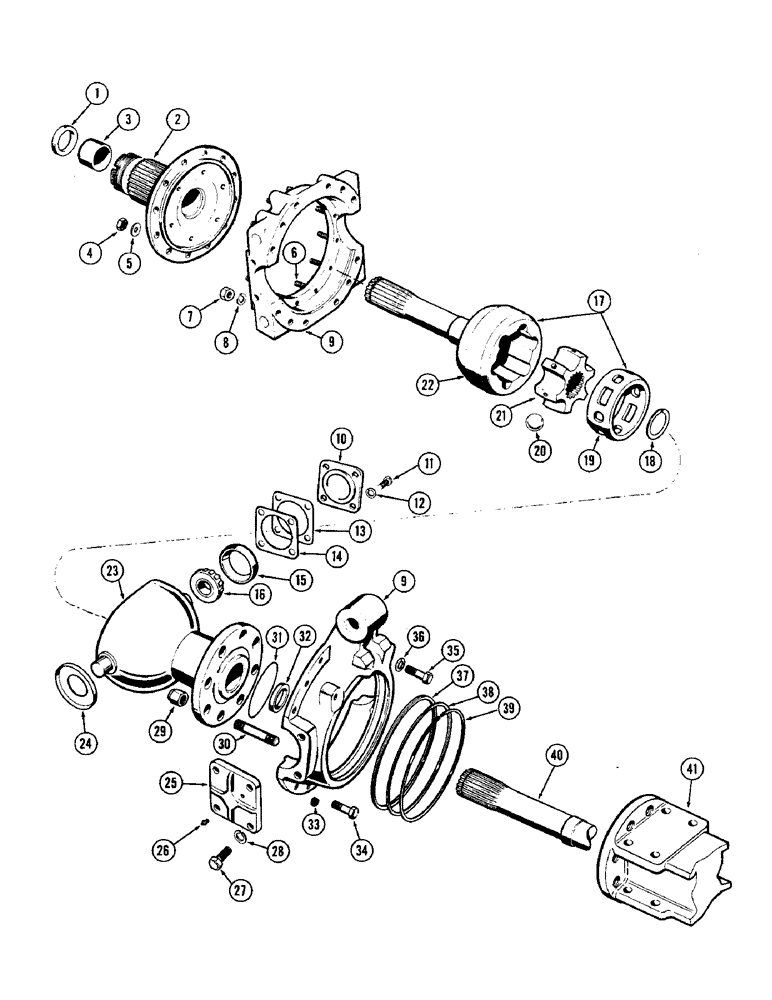

Запчасти Case W9A (152) - REAR AXLE HOUSING AND STEERING KNUCKLE (06) - POWER TRAIN

1

A15820

OIL SEAL

- steering spindle

2шт.

2

A12984

SPINDLE

- steering (Before loader 8208309)

2шт.

A12984 has one hole.

1шт.

A55765

SPINDLE

- steering (Loader #8208309 & after)

2шт.

A55765 has six holes and groove.

1шт.

3

A13016

BUSHING

- spindle

2шт.

4

131-182

LOCK NUT,7/16"-20, GC

NUT - spindle to flange

24шт.

5

A13136

RING

WASHER - spindle nut

24шт.

6

A13120

STUD

-, Serial Range: spindle-flange

24шт.

7

129-530

NUT,7/16"-20, G8

Flange bolt 7/16"-20, G8

22шт.

8

92-7

LOCK WASHER,7/16"

22шт.

9

A15744

FLANGE - R.H. strg. knuckle (Includes studs)

1шт.

A15744 is the L.H.

1шт.

A15745

FLANGE

- L.H. strg. knuckle (Includes studs)

1шт.

10

A13020

CAP

- steering bearing

3шт.

11

113-404

CAPSCREW

BOLT - 1/2" N.C. hex. hd. (Gr. 8)

12шт.

12

92-8

LOCK WASHER,1/2"

12шт.

13

A12990

SHIM,.005" Thk

Bearing cap .005" Thk

1шт.

A12992

SHIM,.010" Thk

Bearing cap .010" Thk

1шт.

14

A12991

SHIM,.030" Thk

- bearing cap (.020")

1шт.

15

A13019

CUP ASSY.

CUP - steering bearing (Timken #41286)

4шт.

16

A13018

ROLLER BEARING,1.125" ID x 0.955"

CONE - steering bearing (Timken #41125)

4шт.

17

A13274

SHAFT

UNIVERSAL JOINT

2шт.

18

A13117

RING, SNAP

SNAP RING - axle shaft

2шт.

19

A13013

CAGE - ball

2шт.

20

A12982

BALL

- joint

12шт.

21

A13011

RACE

- inner

2шт.

22

A12981

SHAFT

- cage

2шт.

23

A15385

SPARE PART

SOCKET - trunnion

2шт.

24

A15027

RETAINER

- grease, upper bearing

2шт.

25

A13021

CAP - upper, strg. brg. (R.H. only)

1шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" strg

4шт.

27

113-404

CAPSCREW

BOLT - 1/2" x 1-1/2" N.C. hex. hd.

4шт.

28

92-8

LOCK WASHER,1/2"

4шт.

29

131-59

LOCK NUT,3/4"-16

NUT - lock, 1/2" N.F. hex. jam

16шт.

30

A15747

X

STUD -, Serial Range: trunnion-housing

16шт.

31

A12995

O-RING,2 7" ID x 1/3" OD x 1/8"

SEAL - trunnion to housing

2шт.

32

A12994

OIL SEAL

OIL SEAL - axle shaft

2шт.

33

221-41

PLUG

- flange, 1/8" slotted

2шт.

34

114-311

BOLT

- flange, 7/16" x 3" (Gr. 8)

4шт.

35

14-724

SCREW,Hex, 7/16" - 20 x 1 1/2", Gr 5

BOLT - 7/16" x 1-1/2" N.F. hex. hd.

20шт.

36

92-7

LOCK WASHER,7/16"

24шт.

37

A15741

SEAL

- grease, trunnion socket

2шт.

38

A15742

RETAINER

- seal

2шт.

39

A15743

RING

SNAP RING - seal retainer

2шт.

40

A13007

SHAFT HOUSING

SHAFT - rear axle

2шт.

41

A15748

HOUSING - rear axle

1шт.
