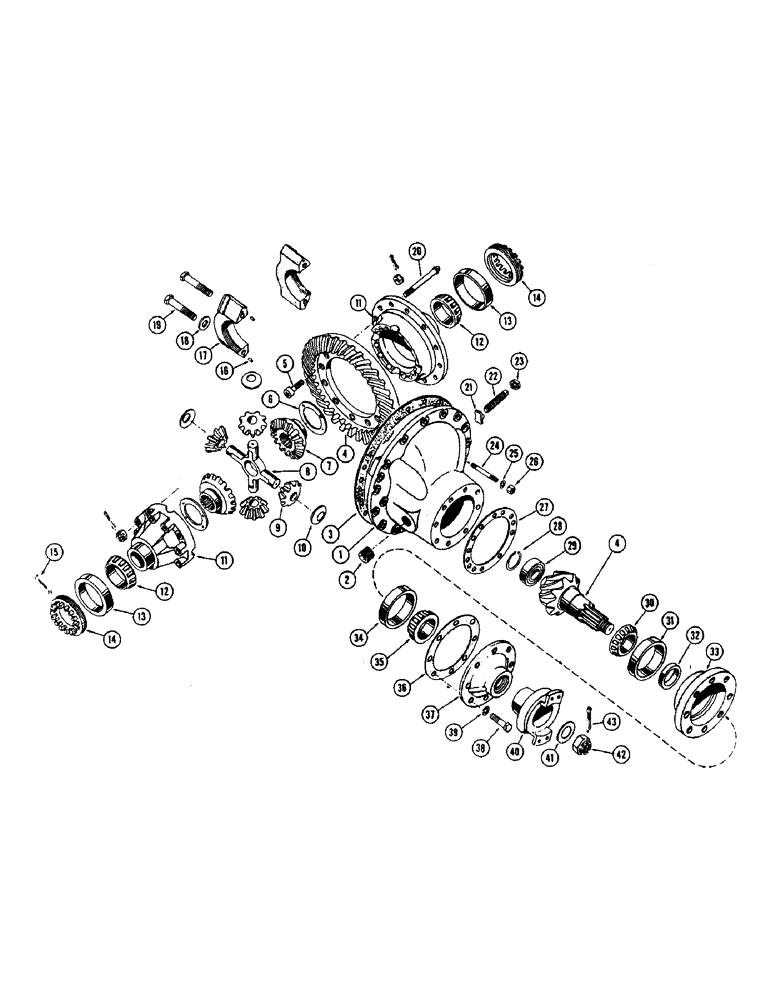

Запчасти Case W9A (148) - DIFFERENTIAL (06) - POWER TRAIN

1

A12971

X

CARRIER ASSY - (Incl. 16, 17, 18 and 19)

2шт.

2

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- drain, 3/4" P.T. socket hd.

2шт.

3

A12943

GASKET

- carrier to axle housing

2шт.

4

A19889

PINION & RING GEAR (Matched set) (Incl. ref. 28 & 29)

2шт.

5

A16437

BOLT

- ring gear

24шт.

129-282

SLOTTED NUT

- 1/2" N.F. slotted hex. (Gr. 8)

24шт.

6

A12979

WASHER

- thrust, side gear

4шт.

7

A12978

GEAR

- side

4шт.

8

A12974

U-JOINT SPIDER

SPIDER - pinion gear

2шт.

9

A12975

GEAR

- pinion

8шт.

10

A12976

WASHER

- thrust, pinion

8шт.

11

A12973

X

CASE - axle differential

2шт.

12

A12944

ROLLER BEARING,2.8125" ID x 1.1875"

CONE - bearing (Timken (#33281)

4шт.

13

A12946

BEARING CUP

CUP - bearing (Timken #33472)

4шт.

14

A12942

GASKET

RING - bearing adjusting

4шт.

15

A18196

HARDWARE

PIN - cotter, adjusting ring

4шт.

16

A15443

DOWEL

- bearing cap

8шт.

17

NSS

NOT SOLD SEPARAT

CAP - bearing (See ref. 1)

1шт.

18

A16783

WASHER

- bearing cap bolt

8шт.

20

A13125

BOLT (SPREADER)

BOLT - case halves, long

16шт.

A13114

BOLT - case halves, short

8шт.

21

A12948

BLOCK - thrust, drive gear

2шт.

L30949

SCREW

and block, (additional, not a sub) used with Ref. 21

1шт.

22

A13122

SCREW

- thrust block

2шт.

L30949

SCREW

and block, (additional, not a sub) used with Ref. 22

1шт.

23

A13121

X

NUT - thrust block screw

2шт.

24

A13130

STUD

- carrier to hsg. long

8шт.

A13131

STUD

- carrier to hsg., short

20шт.

25

92-8

LOCK WASHER,1/2"

28шт.

26

129-545

NUT,1/2"-20, G8

28шт.

27

A12956

SHIM,.005" Thk

Bearing cage .005" Thk

1шт.

A12957

SHIM,.010" Thk

Bearing cage .010" Thk

1шт.

A12958

SHIM,.003" Thk

Bearing cage .003" Thk

1шт.

28

A15442

LOCK

SNAP RING - bearing, (Loader #8196683 & after)

2шт.

A13140

SNAP RING - bearing (Before loader #8196683)

2шт.

29

A19892

ROLLER BEARING,1.378 mm ID x 2.8346 mm OD

BEARING - drv. pinion (Loader #8196683 and after)

2шт.

A12947

ROLLER BEARING

BEARING - drv. pinion (Before loader #8196683)

2шт.

30

A9841

ROLLER BEARING,1.875" ID x 1.0594"

CONE - bearing, inner (Timken #55187)

2шт.

43

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

31

A12949

BEARING CUP

CUP - brg., inner (Timken #55443)

2шт.

32

A12960

SPACER

- bearing, (219")

2шт.

32

A12961

SPACER

- bearing (.220")

2шт.

32

A12962

SPACER

- bearing (.221")

2шт.

32

A12963

SPACER

- bearing (.222")

2шт.

32

A12964

SPACER

- bearing (.223")

2шт.

32

A12965

SHIM,.224" Thk

SPACER, , Bearing .224" Thk

2шт.

32

A12966

SPACER

- bearing (.230")

2шт.

32

A12967

SPACER

- bearing (.236")

2шт.

32

A12968

SPACER

- bearing (.242")

2шт.

32

A12969

SPACER

- bearing (.248")

2шт.

32

A12970

SPACER

- bearing (.254")

2шт.

33

A12959

CAGE

- pinion brg (Incl. cups)

2шт.

34

A12949

BEARING CUP

CUP - bearing, outer (Timken #55443)

2шт.

35

A12950

ROLLER BEARING,1.75" ID x 1.0594"

CONE - bearing, outer (Timken #55176)

2шт.

36

A12955

GASKET

- bearing cage

2шт.

37

A12954

COVER ASSY

COVER - (Incl. oil seal)

2шт.

38

113-306

BOLT (SPREADER)

BOLT - 7/16" x 1-3/4" N.C., hex. hd. (Gr. 8)

16шт.

39

92-7

LOCK WASHER,7/16"

16шт.

40

A12951

YOKE - drive shaft

2шт.

41

A13124

WASHER

- yoke nut

2шт.

42

A13123

X

NUT - yoke

2шт.
