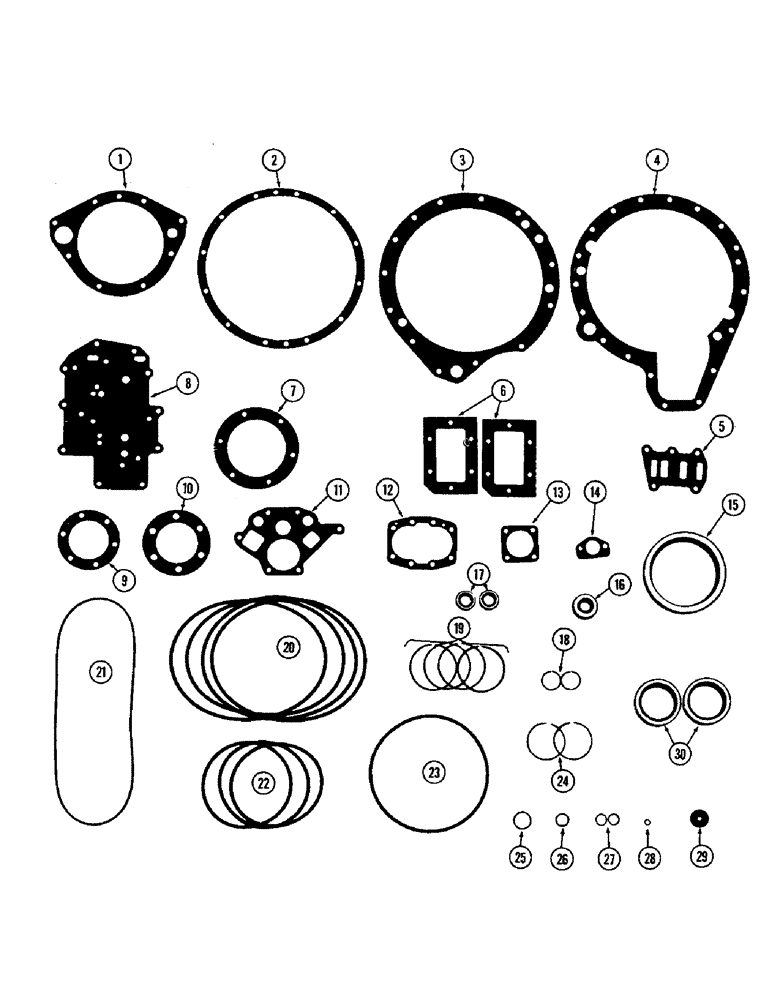

Запчасти Case W9A (108) - TRANSMISSION SEAL AND GASKET KIT (06) - POWER TRAIN

A15657

KIT

SEAL & GASKET KIT - transmission

1шт.

1

A12734

GASKET - hsg., oil pump, rear

1шт.

2

A12723

GASKET

- cover, transfer hsg

1шт.

3

A12716

GASKET

- housing, converter

1шт.

4

A12724

GASKET

- hsg., transmission

1шт.

5

A12720

GASKET

- body, press. regulator

1шт.

6

A12754

GASKET - cover, inspection & clean out

2шт.

7

A12726

GASKET

- retainer, bearing

1шт.

8

A12804

GASKET

- body, selector valve

1шт.

9

A12664

GASKET

- oil strainer

1шт.

10

A12826

GASKET

- accessory drive gear

1шт.

11

A12696

GASKET

- body, oil pump

1шт.

12

A12752

RIGID TUBE

GASKET - cover, oil pump

1шт.

13

A12688

GASKET

- lube cover, press. reg.

1шт.

14

A12820

GASKET

- tube, conv. hsg. drain

1шт.

15

A12760

X

SEAL - oil, diaphragm, conv. hsg

1шт.

16

A12747

OIL RESERVOIR

SEAL - oil, valve spool, fwd. & rev.

1шт.

17

A12660

SEAL

- oil, selec. valve spool & shifter shaft

3шт.

18

A12823

SEAL - hook, conv. shaft

2шт.

19

A12730

RING

SEAL - hook, interm. clutch drum & drv. brg

4шт.

20

A40021

KIT

SEAL KIT - clutch piston

4шт.

21

A12674

RING

SEAL - ring converter

1шт.

22

A40023

SEAL

KIT - high range clutch & planet

3шт.

23

A40022

SEAL KIT - interm. clutch piston

1шт.

24

A12841

SEAL

- hook, converter shaft

2шт.

25

A12651

GASKET - annular

1шт.

26

A12649

GASKET

- annular, selec. valve plug

1шт.

27

A12650

GASKET - selector valve plug

2шт.

28

A12666

O-RING,0.359" ID x 0.73"

SEAL

1шт.

29

A15972

WASHER

- conv. regulator valve

1шт.

30

A12675

GASKET

SEAL - frt. & rear output flange

2шт.

A40059

WASHER

- seal, lube oil valve (Not illust.)

1шт.

A40060

GASKET

- oil strainer cover (Not illust.)

1шт.
