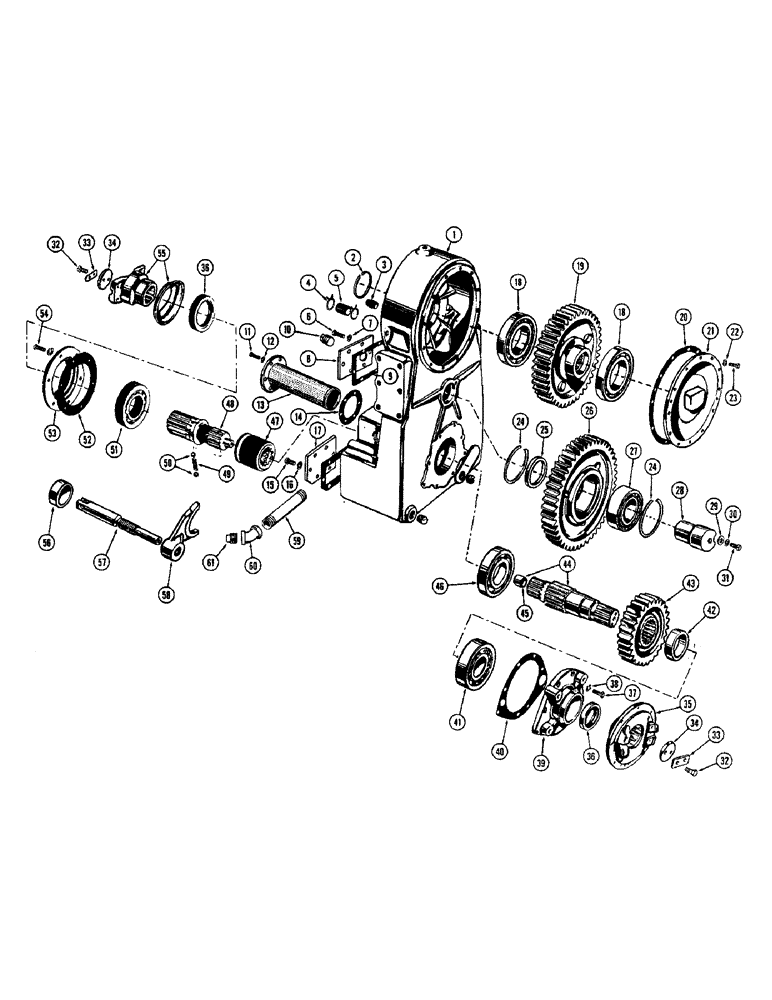

Запчасти Case W9A (104) - TRANSFER HOUSING AND GEARS, USED PRIOR LOADER SERIAL NO. 8178298 (06) - POWER TRAIN

1

A12812

X

HOUSING - transfer gear (Prior S/N 23080)

1шт.

2

A12730

RING

- seal, hook type

1шт.

3

A16979

NIPPLE, LUBE

NIPPLE - oil drain

1шт.

4

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, drain tube

2шт.

5

A12756

HOSE ASSY.

HOSE - drain tube oil

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

7

92-6

LOCK WASHER,3/8"

6шт.

8

A12776

COVER - inspection, drain

1шт.

9

A12754

GASKET - cover, drain & inspection

2шт.

10

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG - pipe, 1-1/4" sq. socket

1шт.

11

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

12

92-6

LOCK WASHER,3/8"

6шт.

13

A12758

SPARE PART

STRAINER - oil, transfer hsg.

1шт.

14

A12664

GASKET

- oil strainer, hsg.

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

16

92-6

LOCK WASHER,3/8"

6шт.

17

A12755

COVER - inspection, gear hsg

1шт.

18

A12655

BEARING

- drive, gear output (ND3216XRIA)

2шт.

19

A12786

GEAR - drive, output

1шт.

20

A12723

GASKET

- cover, drive gear

1шт.

21

A12722

COVER - drive gear

1шт.

22

92-6

LOCK WASHER,3/8"

12шт.

23

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

12шт.

24

A12668

RING, SNAP

RING - snap, idler gear

2шт.

25

A12813

SPACER - idler gear

1шт.

26

A12768

X

GEAR - idler

1шт.

27

A12839

BEARING - idler gear (Hyatt A25213-Z)

1шт.

28

A12814

SPINDLE - idler gear

1шт.

29

A12810

WASHER - retaining, spindle

1шт.

30

92-7

LOCK WASHER,7/16"

1шт.

31

13-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

- 7/16" x 7/8" N.C., hex

1шт.

32

14-618

SCREW,Hex, 3/8" - 24 x 1 1/8", Gr 5

BOLT - 3/8" x 1-1/8" N.F., hex

4шт.

33

A12736

LOCKING PLATE

- locking, output flange

2шт.

34

A12717

WASHER

- retaining, output flange

2шт.

35

A12838

FLANGE - output, front

1шт.

36

A12675

GASKET

SEAL - oil, front & rear output

2шт.

37

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- 3/8" x 1-3/8" N.C., hex

8шт.

38

92-6

LOCK WASHER,3/8"

14шт.

39

A12795

RETAINER - brg., front

1шт.

40

A12734

GASKET - bearing retainer, front

1шт.

41

A12656

BALL BEARING,2.3622" ID x 5.1181" OD x 1.2205"

BEARING - output shaft, front (ND3312XRIA)

1шт.

42

A12875

SPACER - driven gear, output

1шт.

43

A12787

GEAR - driven, output

1шт.

44

A12815

SHAFT ASSY - output, front

1шт.

45

A12702

BUSHING - output shaft

1шт.

46

40003

BEARING

- output shaft, front (ND3311XRIA)

1шт.

47

A12738

COUPLING - shifter, output

1шт.

48

A12737

SHAFT - output, rear

1шт.

49

A12740

SPRING - detent, shifter fork

1шт.

50

211-26

BALL,15/32" Dia

- detent, 15/32 dia. (Steel)

2шт.

51

40003

BEARING

- output shaft, rear (ND3311XRIA)

1шт.

52

A12726

GASKET

- brg. retainer, rear

1шт.

53

A12771

RETAINER - shaft brg., rear

1шт.

54

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

55

A12789

FLANGE

ASSY - output, rear

1шт.

56

A12660

SEAL

- oil, shifter fork shaft

1шт.

57

A12729

SHAFT - shifter

1шт.

58

A12739

FORK - shifter

1шт.

59

221-1304

NIPPLE - 1-1/2" x 12" pipe

1шт.

60

221-1372

ELBOW - 1-1/2" x 45 degree (Female)

1шт.

61

221-1008

PLUG - pipe, 1-1/2" sq. hd.

1шт.
