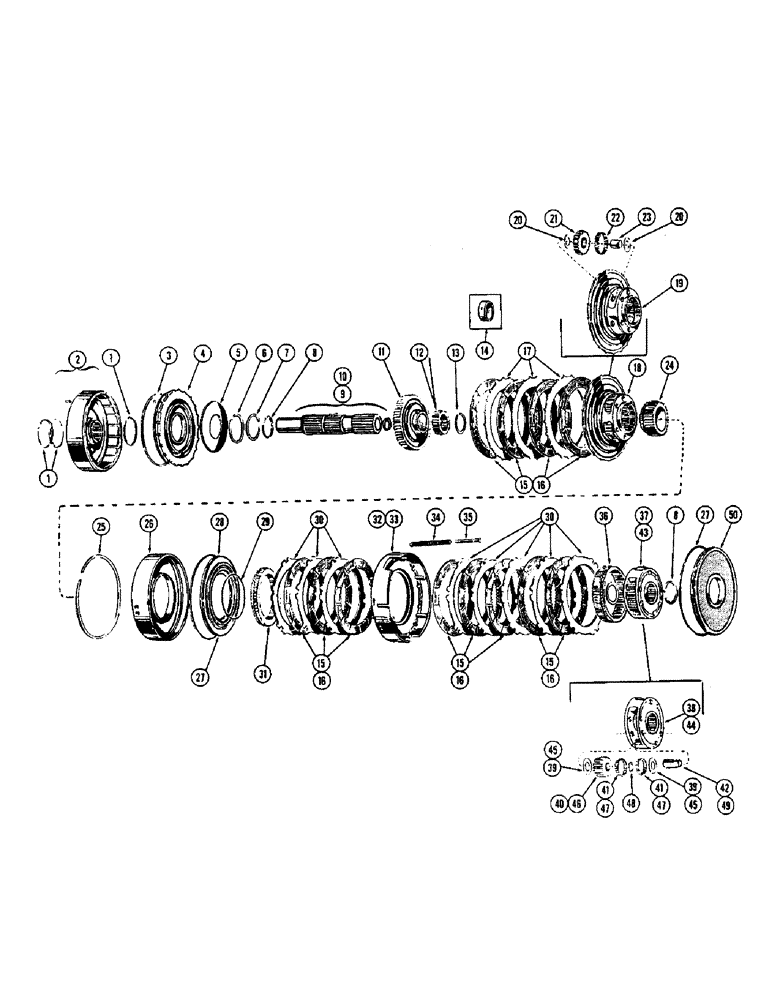

Запчасти Case W9A (094) - INTERMED. - HIGH-LOW RANGE PLANET - CLUTCH (06) - POWER TRAIN

1

A12730

RING

- seal, intermediate clutch drum

3шт.

2

A12719

DRUM

- clutch, intermediate range

1шт.

3

A40022

SEAL KIT - clutch piston, intermed.

1шт.

4

A12828

PISTON - intermediate range

1шт.

5

A12801

SPRING

- return, intermediate piston

1шт.

6

A12665

RING, SNAP

RING - snap, piston return spring

1шт.

7

A12663

RING

- snap, clutch drum retaining

1шт.

8

A12677

RING, SNAP

RING - snap clutch drum

2шт.

9

A16946

SHAFT - main, trans. (Serial #24029 & after)

1шт.

10

A12749

SHAFT - main, trans. (Prior serial #24029)

1шт.

11

A12797

HUB - clutch, intermediate range

1шт.

12

A12679

GEAR

- sun, high range

1шт.

13

A12677

RING, SNAP

RING - snap, interm. clutch (S/N 24029 & after)

1шт.

14

A12796

SPACER - interm. clutch (Prior S/N 24029)

1шт.

15

A19993

PLATE

- clutch, high-low & inter., spline (Do not mix with old A12931 in one pack)

12шт.

16

A12831

FACING, CLUTCH

PLATE - clutch, high-low & interm. internal internal spline (Use prior S/N 33707 only)

12шт.

17

A12807

PLATE

- clutch, intermediate, external spline

3шт.

18

A12811

CARRIER

ASSY - planetary, hight range

1шт.

19

L30309

CARRIER

- planetary (Order A12811)

1шт.

20

A12681

WASHER

- thrust, pinion

12шт.

21

A16368

GEAR-SET

PINION KIT - planetary (Set of 6)

1шт.

22

A12682

NEEDLE

BEARING - roll, pinion

120шт.

23

A12680

PIN

- pinion, planetary

6шт.

24

A12790

GEAR - sun, low range

1шт.

25

A12733

RING, SNAP

RING - snap, high range piston hsg

1шт.

26

A12793

HOUSING - piston, high range

1шт.

27

A40021

KIT

SEAL KIT - high & low range piston

1шт.

28

A12791

PISTON - clutch, high range

1шт.

29

A40023

SEAL

KIT - high range piston, inner

1шт.

31

A12833

GEAR - ring, high range clutch

1шт.

32

A13214

ANCHOR

- clutch, high-low range (Used serial no. 5719 and after)

1шт.

33

A12809

X

ANCHOR - clutch, high & low range (Used prior to serial no. 5719)

1шт.

34

A55806

SPRING

- return, clutch piston

12шт.

35

A12837

PIN - guide, return spring

12шт.

36

A12834

GEAR

- ring, low range

1шт.

37

A40025

BEARING

CARRIER ASSY - planet. low range (S/N 37339 & after)

1шт.

38

NSS

NOT SOLD SEPARAT

CARRIER - planetary (Order A40025)

1шт.

39

A40027

WASHER

- thrust, pinion (After trans. S/N 37338)

12шт.

40

A40028

PINION KIT - planet (Set of 6) (After trans. S/N 37338)

1шт.

41

A12659

NEEDLE

BEARING - roll, pinion (After trans. S/N 37338)

96шт.

42

A40026

PIN - pinion, planetary (After trans. S/N 37338)

6шт.

43

A12806

CARRIER ASSY - planet., low range (Prior S/N 37339)

1шт.

44

NSS

NOT SOLD SEPARAT

CARRIER - planetary (Order A12806)

1шт.

45

A12681

WASHER

- thrust, pinion (Prior trans. S/N 37339)

12шт.

46

A16370

PINION KIT - planet (Set of 6) (Prior trans. S/N 37339)

1шт.

47

A12727

BEARING - roll, pinion (Prior trans. S/N 37339)

240шт.

48

A12750

SPACER - pinion, planetary

6шт.

49

A12707

PIN - pinion, planetary (Prior trans. S/N 37339)

6шт.

50

A12798

PISTON - clutch, low range

1шт.
