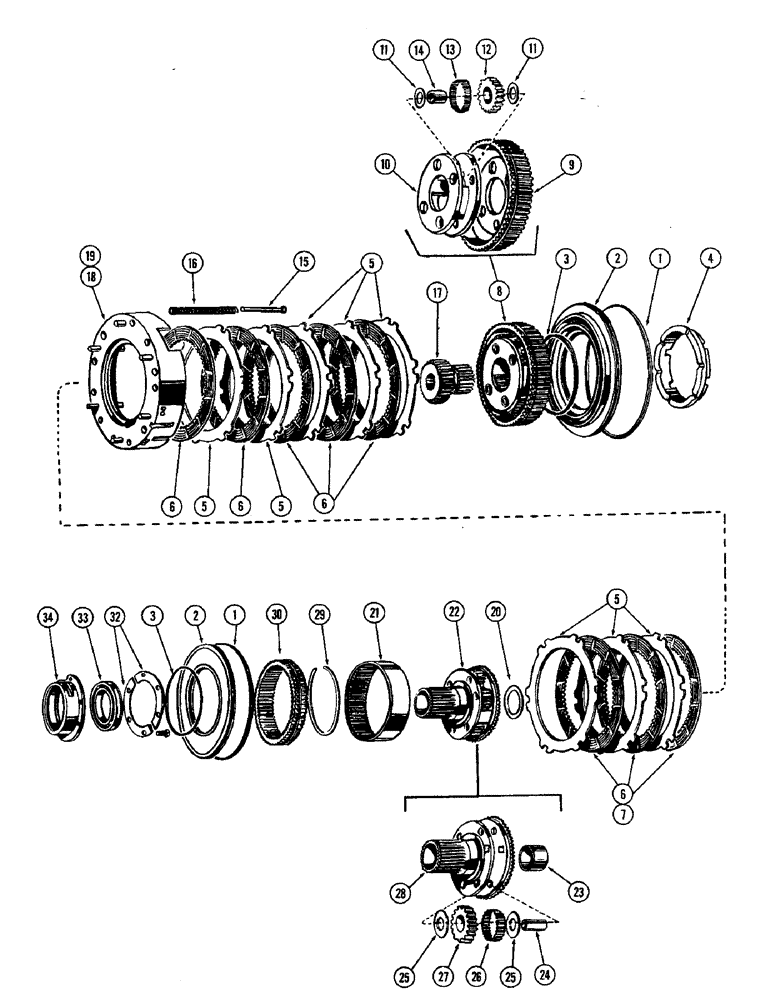

Запчасти Case W9A (092) - FORWARD - REVERSE PLANETARY AND CLUTCH (06) - POWER TRAIN

1

A40021

KIT

SEAL - ring, clutch piston

2шт.

2

A12830

PISTON - clutch

2шт.

3

A40023

SEAL

RING - seal, clutch piston, inner

1шт.

4

A12832

SPACER - clutch

1шт.

5

A12805

PLATE

- clutch, external spline

8шт.

6

A19993

PLATE

- clutch, internal spline (Do not intermix with old plates A12831)

8шт.

7

A12831

FACING, CLUTCH

PLATE - clutch, internal spline (Use only prior transmission serial #33707)

8шт.

8

A12836

CARRIER

ASSY - forward planetary

1шт.

9

A12835

HUB - forward planetary

1шт.

10

NSS

NOT SOLD SEPARAT

CARRIER - forward planetary (Order A12836)

1шт.

11

A12700

WASHER

- thrust, pinion

8шт.

12

A16369

PINION

KIT - forward planetary (Set of 4)

1шт.

13

A12659

NEEDLE

BEARING - roller, pinion

88шт.

14

A12705

SPINDLE

PIN - pinion

4шт.

15

A12837

PIN - spring, clutch piston

12шт.

16

A55806

SPRING

- piston, clutch

12шт.

17

A12704

GEAR WHEEL

GEAR, sun, forward & reverse

1шт.

18

A13214

ANCHOR

- clutch, reverse (Use serial #5719 & after)

1шт.

19

A12809

X

ANCHOR - clutch, reverse (Prior serial #5719)

1шт.

20

A12732

WASHER

- thrust, reverse planetary

1шт.

21

A12712

GEAR

- ring, reverse

1шт.

22

A40037

CARRIER ASSY - reverse planetary

1шт.

23

A12728

BUSHING

- planetary, reverse

1шт.

24

A12680

PIN

- pinion, planetary

6шт.

25

A12681

WASHER

- thrust, pinion

12шт.

26

A12682

NEEDLE

BEARING - roll, planetary

120шт.

27

A16368

GEAR-SET

PINION KIT - planetary reverse (Set of 6)

1шт.

28

NSS

NOT SOLD SEPARAT

CARRIER - planetary, reverse (Order A40037)

1шт.

29

A12687

RING

- snap, ring gear, internal

1шт.

30

A12833

GEAR - ring, reverse

1шт.

31

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

32

A12708

RETAINER - planetary, bearing

2шт.

33

A12657

BALL BEARING

BEARING - planetary (No. 43L14X1241A)

1шт.

34

A12703

HUB - transfer, oil

1шт.
