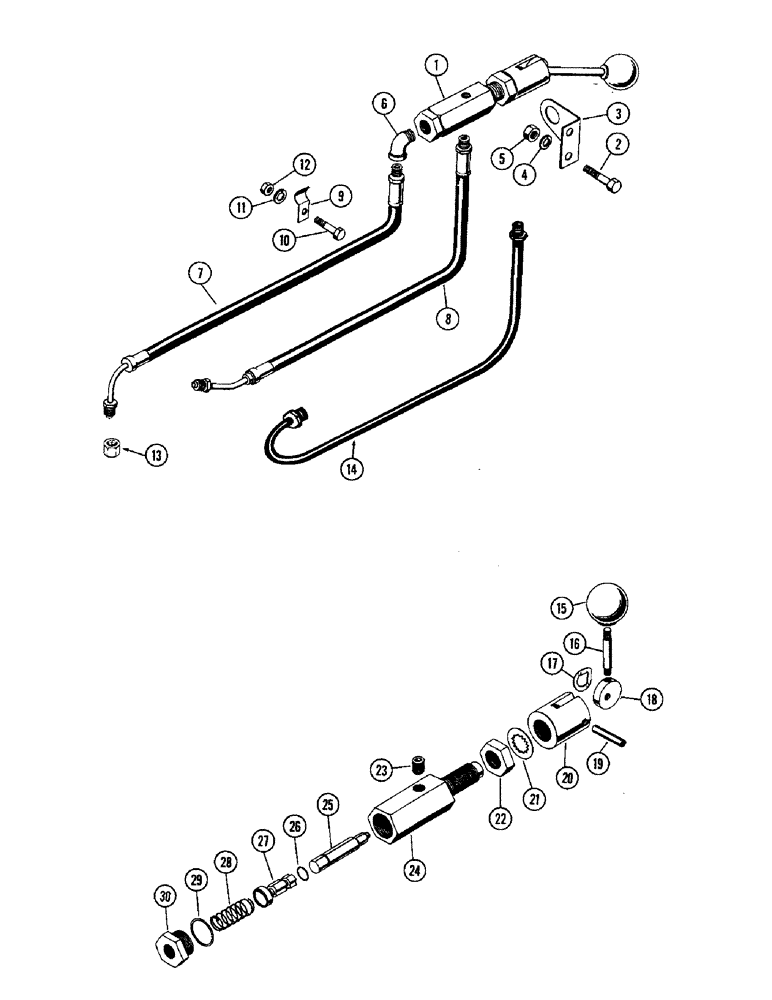

Запчасти Case W9A (084) - A16667 TRANSMISSION CUT-OFF ATTACHMENT, A16668 VALVE (06) - POWER TRAIN

A16667M

ATTACHMENT - transmission cut-off control

1шт.

1

A16668

VALVE ASSY - trans. cut-off control

1шт.

2

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F., hex

2шт.

3

A16669

BRACKET - mtg., cut-off valve

1шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F., hex

2шт.

6

221-1401

ELBOW,45º, 1/8"-27, NPT

- street, 1/8" x 45 degrees

2шт.

7

A16670

HOSE ASSY - brake line tee to cut-off valve

1шт.

8

A16671

HOSE ASSY - cut-off valve to trans. control valve (Used w/ A16664 & A12804 slec. valve)

1шт.

9

O10244AB

CLIP - hose to side plate

2шт.

10

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd

1шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

25-114

NUT,1/4"-28, G5

- 1/4" N.F., hex

1шт.

13

222-1053

HYD CONNECTOR,1/4" Inv Fl

UNION - 1/4" Invented flared tube

1шт.

14

A16862

TUBE ASSY - extension, cut-off valve hose (Used w/A16988 selector valve)

1шт.

A16668

VALVE ASSY - control, trans. cut-off

1шт.

15

A16688

KNOB

- control handle, A16668 valve assembly

1шт.

16

A16687

LEVER - control, A16668 valve assembly

1шт.

17

A16684

SPRING - latch, lever, A16668 valve assembly

1шт.

18

A16686

CAM

- lever, A16668 valve assembly

1шт.

19

A16685

PIN

- spring, cam, A16668 valve assembly

1шт.

20

A16683

CLEVIS - body & cam, A16668 valve assembly

1шт.

21

A16681

X

LOCKWASHER - clevis, A16668 valve assembly

1шт.

22

A16680

NUT - jam, clevis, A16668 valve assembly

1шт.

23

221-1849

PLUG

- pipe, 1/8" socket hd., A16668 valve assembly

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - control valve (Order A16668), A16668 valve assembly

1шт.

25

A16678

ROD

- valve, A16668 valve assembly

1шт.

26

A16679

O-RING

"O" RING - valve rod, A16668 valve assembly

1шт.

27

A16676

VALVE - flow control, A16668 valve assembly

1шт.

28

A16674

SPRING

- valve, A16668 valve assembly

1шт.

29

A16673

GASKET

- plug, A16668 valve assembly

1шт.

30

A16672

PLUG

- valve body, A16668 valve assembly

1шт.
