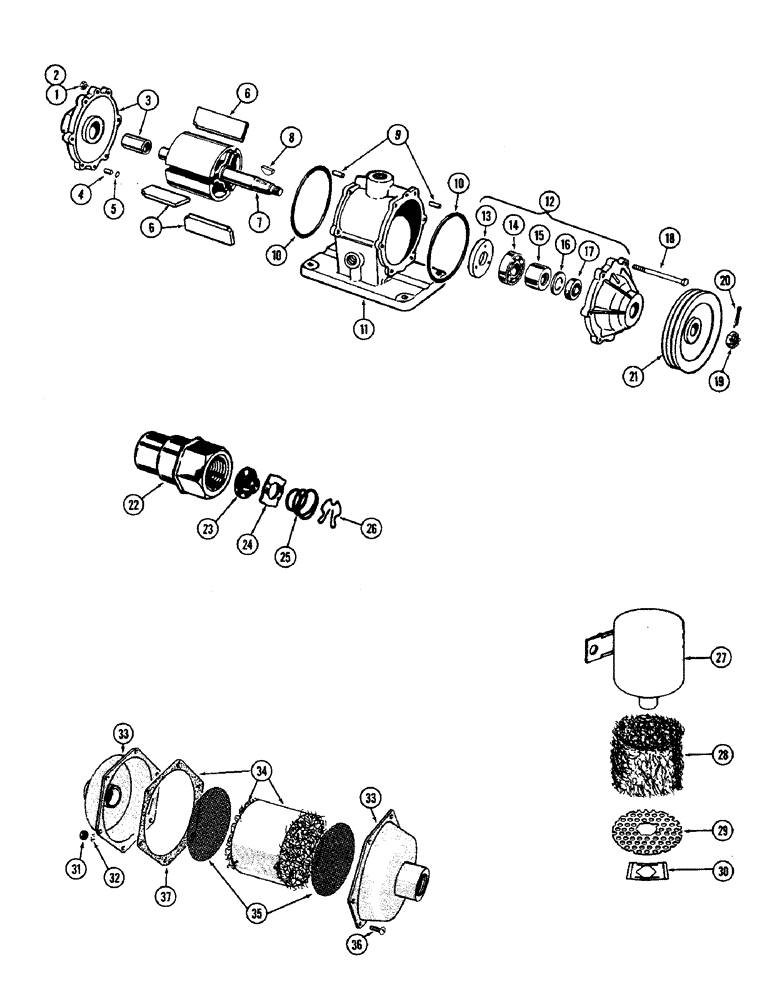

Запчасти Case W9A (082) - A18534 VACUUM PUMP, A18513 CHECK VALVE, A18529 AIR CLEANER (06) - POWER TRAIN

A18534

PUMP

ASSY - vacuum

1шт.

1

25-114

NUT,1/4"-28, G5

- 1/4" N.F., hex

6шт.

2

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

3

A19719

X

PLATE ASSY - end, rear

1шт.

4

A19720

RETAINER - gasket

1шт.

5

A19721

GASKET

- retainer

1шт.

6

A19722

KIT

VANE KIT - rotor (Set of 3)

1шт.

7

A19723

ROTOR ASSY - vacuum pump

1шт.

8

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Pulley #9, 3/16" x 3/4"

1шт.

9

A19724

DOWEL

PIN - locating, end plates

2шт.

10

A19725

GASKET

- end plate

2шт.

11

A19726

HOUSING ASSY - vacuum pump

1шт.

12

A19732

PLATE ASSY - end, front

1шт.

13

A19727

NO LONGER SERVICED

BAFFLE - end plate, front

1шт.

14

A19728

BALL BEARING

BEARING - ball

1шт.

15

A19729

SEAL

SEAL - oil, end plate

1шт.

16

A19730

GASKET

- seal

1шт.

17

A19731

FELT

WASHER - end plate (Felt)

1шт.

18

A19733

BOLT - end, Serial Range: plate-housing

6шт.

19

25-238

SLOTTED NUT,1/2"-20, G5, Thk

NUT - castle, 1/2" N.F., hex

1шт.

20

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

1шт.

21

A18536

PULLEY

- drive, vacuum pump

1шт.

A18513

LOCK VALVE

VALVE ASSY - check

1шт.

22

NSS

NOT SOLD SEPARAT

BODY ASSY - check valve (Order A18513)

1шт.

23

A19743

SEAL ASSY.

SEAL - poppet, A18513 check valve

1шт.

24

A19744

RETAINER

- seal, A18513 check valve

1шт.

25

A19745

SPRING

- check valve, A18513

1шт.

26

A19746

RETAINER - spring, A18513 check valve

1шт.

A18529

CLEANER ASSY - air

1шт.

27

NSS

NOT SOLD SEPARAT

SHELL ASSY - air cleaner (Order A18529)

1шт.

28

A19750

ELEMENT

FILTER - air cleaner (Hair, 11.02 grams), A18529 air cleaner

1шт.

29

A19749

PLATE ASSY.

PLATE - screening, A18529 air cleaner

1шт.

30

A19748

FASTENER - screening plate, A18529 air cleaner

1шт.

A18532

CLEANER

FILTER ASSY - air

1шт.

31

129-640

NUT,#6-32, Brass

- #6 N.C., hex, A18532 air filter

6шт.

32

192-5

LOCK WASHER,#6

WASHER, LOCK, , A18532 Air filter #6

6шт.

33

NSS

NOT SOLD SEPARAT

BODY ASSY - air filter (Order A18532), A18532 air filter

2шт.

34

A40055

FILTER

ELEMENT KIT - filter, A18532 air filter

1шт.

35

A19752

FILTER STRAINER

SCREEN - air filter, A18532 air filter

2шт.

36

A19753

SCREW - filter body, A18532 air filter

6шт.

37

A40054

GASKET

- air filter, A18532

1шт.
