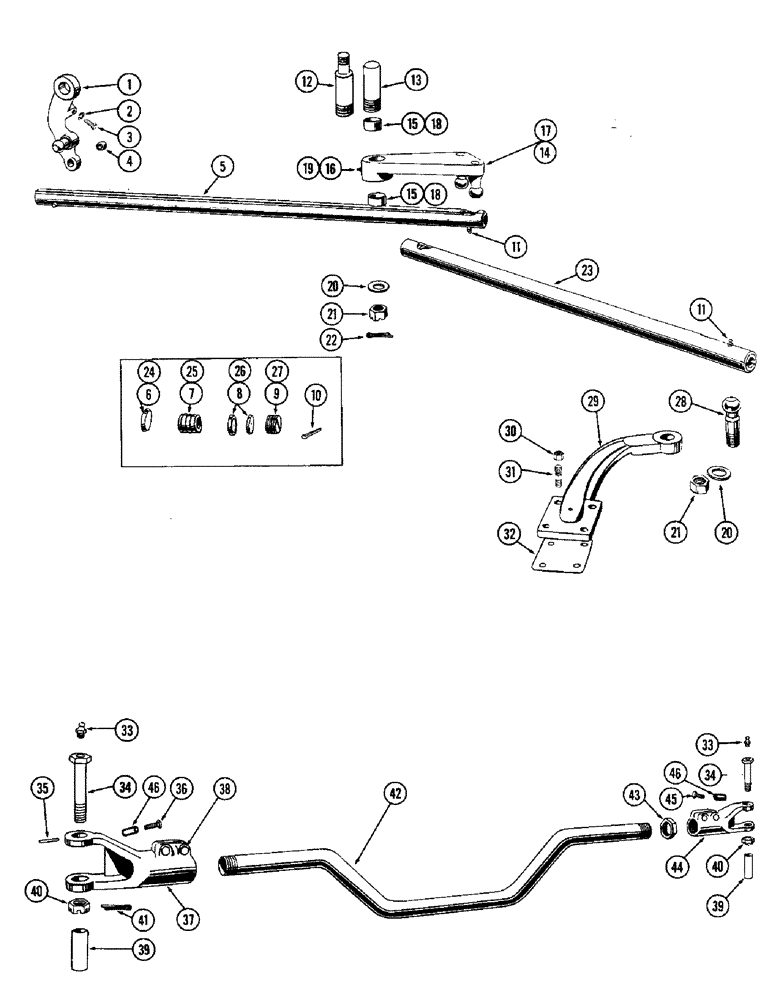

Запчасти Case W9A (116) - STEERING ARMS, DRAG LINK AND TIE ROD (05) - STEERING

1

A12009

LEVER

ARM ASSY - drop, steering

1шт.

2

25-148

JAM NUT,Jam, 1/2"-13, G5

- jam, 1/2" NC, hex

2шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

4

A12018

BUSHING

- drop arm

1шт.

5

A12011

BRAKE

LINK ASSY - drag, front

1шт.

6

O3938AB1

X

SEAT - spacer, drag link

2шт.

7

O2005AB

X

SPRING - drag link

2шт.

8

O2004AB

BEARING - drag link

4шт.

9

O2003AB

X

SCREW - adj., drag link

2шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str. Lincoln

4шт.

12

A15762

PIN

- pivot, inter. strg. lever (Bolt in type)

1шт.

13

A12150

PIN - pivot, interm. strg. lvr. (Welded in place)

2шт.

14

A15758

LEVER

ASSY - inter. lever (Use w/A15762 pin)

1шт.

15

A17611

BUSHING

- interm. lever

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str. Lincoln

1шт.

17

A12015

LEVER ASSY - interm. strg. (Use w/A12150 pin)

1шт.

18

A12014

BUSHING

- interm. lever

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str. Lincoln

1шт.

20

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- plain, 1" SAE

1шт.

21

25-1716

NUT - slotted, 1" N.F., hex

1шт.

22

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

23

A12017

BRAKE

LINK ASSY - drag, rear

1шт.

24

O3938AB1

X

SEAT - link spring

2шт.

25

O2005AB

X

SPRING - drag link

2шт.

26

O2004AB

BEARING - drag link

4шт.

27

O2003AB

X

SCREW - adj., drag link

2шт.

28

A12005

BALL

- spindle arm, strg.

1шт.

29

A15736

ARM - steering

1шт.

30

131-302

LOCK NUT

NUT - lock, 7/8" N.F., hex

5шт.

31

A13135

STUD

- steering arm

4шт.

32

A15737

SHIM

- steering arm (.005")

1шт.

32

A15738

SHIM

- steering arm (.010")

1шт.

32

A15739

SHIM

- steering arm (.030")

1шт.

33

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" x 90 degrees

2шт.

34

A13107

BOLT

- yoke, tie rod

2шт.

35

A13111

AXLE PIN

PIN - lock, yoke bolt

2шт.

36

A13138

SCREW - stop, tie rod end

2шт.

37

A13005

YOKE

- end, tie rod, L.H.

1шт.

ALSO REF#37 SHOULD READ 44,12 THREADS PER INCH(COARSE) 11/8/96

1шт.

38

16-844

X

BOLT - 1/2" x 2-3/4" N.F., hex

2шт.

39

A12993

BUSHING

- yoke bolt

2шт.

40

A13110

NUT

- lock, yoke bolt

2шт.

41

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

42

A13009

TIE-ROD

ROD - tie, steering

1шт.

43

A13115

LOCK NUT

NUT - lock, tie rod

2шт.

44

A13004

YOKE

- end, tie rod, R.H.

1шт.

REFER TO ILLUSTRATION PAGE,REF#44 SHOULD READ 37 16 THREADS PER INCH (FINE THREADED).

1шт.

45

16-844

X

BOLT - 1/2" x 2-3/4" N.F., hex

2шт.

46

A55764

SPACER - stop screw

2шт.

A15851

KIT

REPAIR KIT - strg. lever pivot

1шт.

10

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

4шт.
