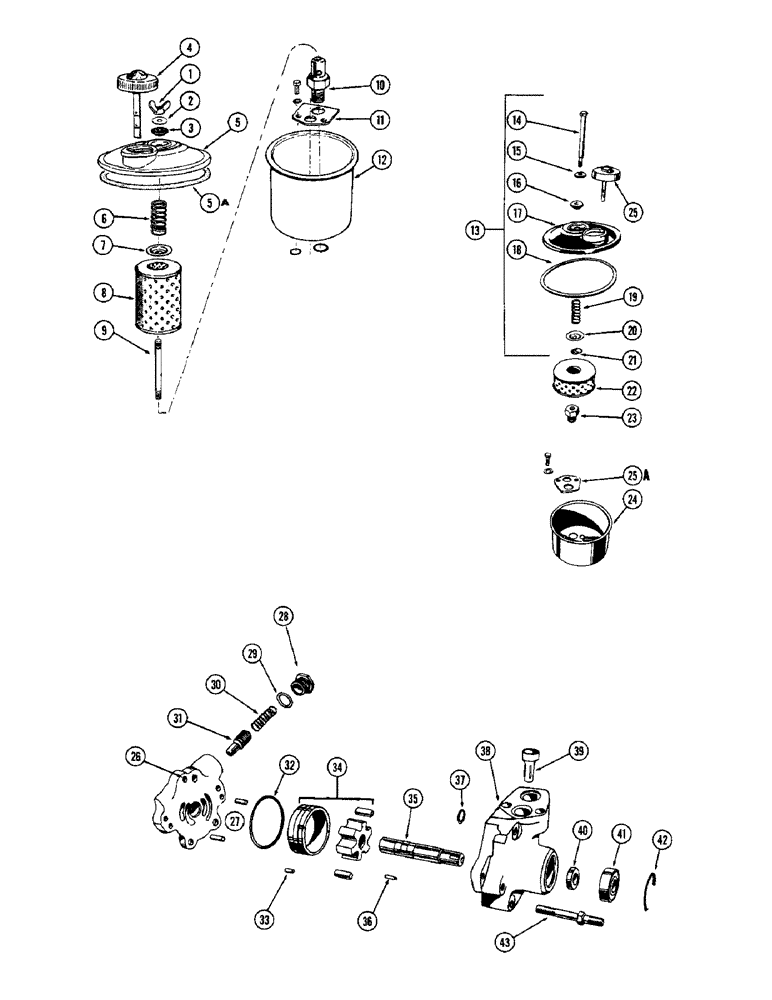

Запчасти Case W9A (114) - A18468 STEERING PUMP RESERVOIR, A14063 STEERING PUMP (05) - STEERING

A18468

RESERVOIR

ASSY - power steering

1шт.

1

A21439

X

NUT - wing, cover retaining

1шт.

2

O10578AB

X

WASHER - wing nut

1шт.

3

O10577AB

X

GASKET - cover stud

1шт.

4

A24137

GAUGE ASSY.

CAP ASSY - gauge and filler

1шт.

5

A18058

COVER

ASSY - reservoir

1шт.

5a

A24138

GASKET

- cover

1шт.

6

A18059

SPRING

- reservoir

1шт.

7

A22714

SEAT

RETAINING - filter element

1шт.

8

A18061

FILTER, ELEMENT

ELEMENT - filter

1шт.

9

A18062

STUD

- reservoir

1шт.

10

A18469

ADAPTER - reservoir stud

1шт.

11

A18060

PLATE - reinforcement, reservoir

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - reservoir (Order A18468)

1шт.

A14063

X

RESERVOIR ASSY - power strg. (Use A18468)

1шт.

13

A15150

COVER

ASSY - (Includes ref. 14 thru 21), A14063 steering pump reservoir

1шт.

14

NSS

NOT SOLD SEPARAT

SCREW - cover, reservoir, A14063 steering pump reservoir

1шт.

15

O10578AB

X

WASHER - cover screw, A14063 steering pump reservoir

1шт.

16

O10577AB

X

GASKET - cover screw, A14063 steering pump reservoir

1шт.

17

NSS

NOT SOLD SEPARAT

COVER - reservoir (Order A15150), A14063 steering pump reservoir

1шт.

18

A24138

GASKET

- cover, reservoir, A14063 steering pump reservoir

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - retainer, filter, A14063 steering pump reservoir

1шт.

20

NSS

NOT SOLD SEPARAT

RETAINER - spring, A14063 steering pump reservoir

1шт.

21

O10579AB

NUT - speed, cover screw, A14063 steering pump reservoir

1шт.

22

A22279

ELEMENT

- filter, A14063 steering pump reservoir

1шт.

23

A18469

STUD - mtg., body, A14063 steering pump reservoir

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - reservoir (Order A18468), A14063 steering pump reservoir

1шт.

25

A24137

GAUGE ASSY.

CAP ASSY - filler & gauge, reservoir, A14063 steering pump reservoir

1шт.

25a

A18060

PLATE - reinforcement, reservoir, A14063 steering pump reservoir

1шт.

A14056

PUMP

ASSY - power steering, A14063 steering pump reservoir

1шт.

26

A15102

COVER ASSY - strg. pump, A14056 steering pump assembly

1шт.

27

O10561AB

PIN - dowel, cover locating, A14056 steering pump assembly

2шт.

28

A20512

CAP - valve, A14056 steering pump assembly

1шт.

29

O10567AB

X

"O" RING - valve cap, A14056 steering pump assembly

1шт.

30

A15055

VALVE SPRING

SPRING - valve, flow control, A14056 steering pump assembly

1шт.

31

A15002

VALVE

ASSY - relief, A14056 steering pump assembly

1шт.

32

A20513

O-RING

"O" RING - body to cover, A14056 steering pump assembly

1шт.

33

A20528

PIN

- dowel, cam, A14056 steering pump assembly

1шт.

34

A20519

X

KIT ASSY - cam, A14056 steering pump assembly

1шт.

35

A20510

SHAFT

- pump, A14056 steering pump assembly

1шт.

36

O10571AB

X

PIN - drive, pump shaft, A14056 steering pump assembly

1шт.

37

A20514

O-RING

"O" RING - by-pass, A14056 steering pump assembly

1шт.

38

A20517

BODY ASSY - steering pump, A14056 steering pump assembly

1шт.

39

A20526

VENTURI

- flow director, A14056 steering pump assembly

1шт.

40

O10570AB

X

SEAL - oil, pump shaft, A14056 steering pump assembly

1шт.

41

O10558AB

X

BEARING - pump shaft (ND99503), A14056 steering pump assembly

1шт.

42

A20524

RING, SNAP

RING - snap, brg. retainer, A14056 steering pump assembly

1шт.

43

A20527

STUD - mtg. pump, A14056 steering pump assembly

3шт.
