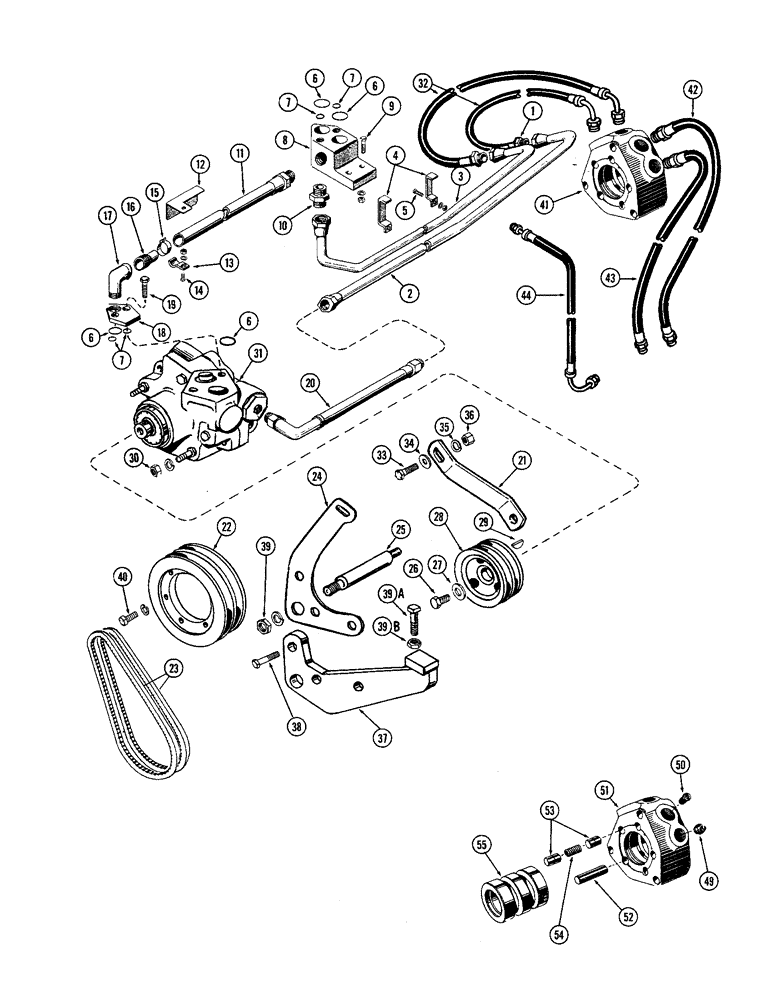

Запчасти Case W9A (112) - POWER STEERING, A23645 VALVE ASSEMBLY (05) - STEERING

1

222-1017

HYD CONNECTOR,3/4"-18 Inv Fl x 3/8" NPT

CONNECTOR - tube, 3/8" - 3/8" inverted flare (Male)

2шт.

2

A15191

TUBE - pressure, pump to strg. valve

1шт.

3

A15192

TUBE - return, pump to strg. valve

1шт.

4

A12031

CLIP - tube, power strg

2шт.

5

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

2шт.

6

O8416AB

X

"O" RING - port hole

4шт.

7

A11026

GASKET

"O" RING - mtg. bolt

4шт.

8

A14064

ADAPTER - reservoir, steering

1шт.

9

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

10

A15193

ADAPTER - reservoir return tube

1шт.

11

A15194

HOSE

- suction, strg. pump

1шт.

12

A15195

BAFFLE - heat, suction hose

1шт.

13

O3092AB

CLIP - hose, suction

1шт.

14

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, suction hose

1шт.

16

A14432

NIPPLE - suction hose

1шт.

17

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- 1/2" x 90 degree street

1шт.

18

A14429

ADAPTER - pump, steering

1шт.

19

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.C., hex

2шт.

20

A12028

HOSE

- pump to pressure tube

1шт.

21

A16661

STRAP - adj., strg. pump (Late model loader)

1шт.

22

A14503

PULLEY - drive, strg. pump (On crksft. pulley)

1шт.

23

A16759

SET OF BELTS

BELT, Drive, Strg. pump (Set of 2)

1шт.

24

A16660

PLATE - mtg. strg. pump (Late model loader)

1шт.

25

A14062

VALVE, CHECK

STUD - pivot, pump mtg

1шт.

26

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

27

O8349AB

X

WASHER - retainer, pulley

1шт.

28

A14504

PULLEY

- steering pump

1шт.

29

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

1шт.

30

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

3шт.

31

A14056

PUMP

ASSY - power strg. (Repair Figure 114)

1шт.

32

A12028

HOSE

- pump to valve (10-1/2" lg.)

2шт.

33

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F., hex

1шт.

34

195-25

WASHER,3/8"

- plain, SAE 3/8"

2шт.

35

92-6

LOCK WASHER,3/8"

1шт.

36

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

37

A15189

PLATE - mtg., strg pump (Early model loaders)

1шт.

38

181-485

SCREW - set, 1/2" x 3-1/2" N.C., sq. hd. oval

1шт.

39

25-148

JAM NUT,Jam, 1/2"-13, G5

- jam, 1/2" NC, hex

1шт.

39a

181-685

SCREW - set, 1/2" x 3-1/2" N.C., sq. hd.

1шт.

39b

25-148

JAM NUT,Jam, 1/2"-13, G5

- jam, 1/2" NC, hex

1шт.

40

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C., hex

6шт.

41

A23645

LOCK VALVE

VALVE ASSY - control, steering

1шт.

42

A12027

HOSE - valve to cyl. (27") (Prior to S/N 8164181)

1шт.

43

A12026

HOSE

- valve to cyl. (16" lg.) (Prior to S/N 8164181)

1шт.

44

A15845

HOSE ASSY.

HOSE - valve to cyl. (After S/N 8164181) (For use w/A15844 power str. cyl.)

2шт.

A23645

LOCK VALVE

VALVE ASSY - control

1шт.

49

A9477

X

SEAT - valve, A23645 valve assembly

3шт.

50

A9474

VALVE

- check, A23645 valve assembly

1шт.

51

NSS

NOT SOLD SEPARAT

BODY ASSY - control valve (Order A23645), A23645 valve assembly

1шт.

52

NSS

NOT SOLD SEPARAT

PLUNGER - inactive, A23645 valve assembly

2шт.

53

A9475

PLUNGER

- active, A23645 valve assembly

6шт.

54

A23646

SPRING

- plunger (Replace all three), A23645 valve assembly

3шт.

55

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order A23645), A23645 valve assembly

1шт.
