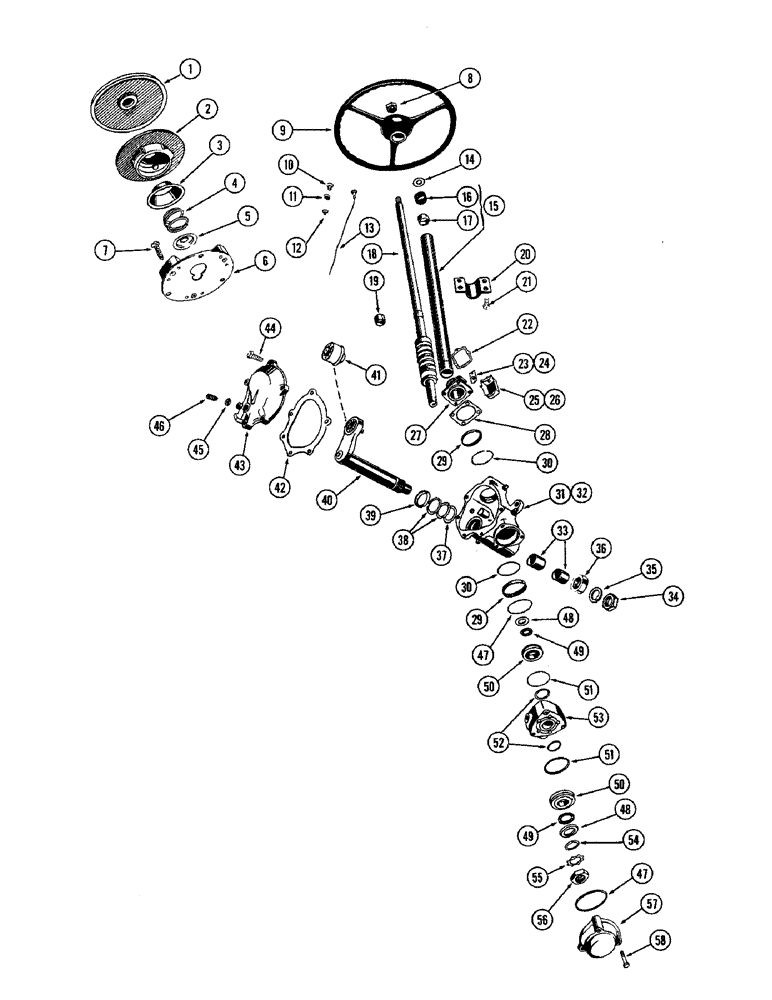

Запчасти Case W9A (110) - STEERING WHEEL, GEAR ASSEMBLY AND HORN BUTTON (05) - STEERING

A12041

STEERING GEAR ASSY - less steering wheel

1шт.

1

A13088

CAP

- horn button (Rubber)

1шт.

2

A13089

BUTTON

- horn

1шт.

3

A13090

CAP

- contact, horn button

1шт.

4

A13091

SPRING

- horn button

1шт.

5

A13092

CAP

CUP - contact, horn button

1шт.

6

A13093

PLATE ASSY.

PLATE - base, horn button

1шт.

7

168-25

DRIVE SCREW,Type U, Rnd Hd, #10 x 5/8"

- sheet metal, #10 x 5/8" rd. hd.

3шт.

8

A13073

NUT

- retaining, strg. wheel

1шт.

9

A15734

WHEEL (STEERING)

WHEEL - steering

1шт.

10

A13058

FERRULE

- insulating, horn wire

1шт.

11

A13059

SPRING

- horn wire

1шт.

12

A13057

CUP ASSY.

CUP - contact, horn wire

1шт.

13

A13055

WIRE ASSY - horn

1шт.

14

A13066

WASHER

- roller brg. & sleeve

1шт.

15

A13063

TUBE ASSY - steering column

1шт.

16

A13065

ROLLER BEARING

BEARING - roller, tube

1шт.

17

A13064

SLEEVE

- tube

1шт.

18

A13053

SHAFT & WORM ASSY - strg. gear

1шт.

19

A13056

RING - contact, horn wire

1шт.

20

A12042

CLAMP - steering column

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

22

A13062

GASKET

- cover, contact brush

1шт.

23

A13060

BRUSH, COMMUTATOR

BRUSH - contact, horn wire

1шт.

24

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- mach., #8 x 1/4" N.C., rd. hd.

6шт.

25

A13061

COVER ASSY - contact brush

1шт.

26

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

27

A13051

COVER ASSY - housing top

1шт.

28

A13052

GASKET

- cover

1шт.

29

A13083

NEEDLE BEARING,Needle, 50.8mm ID x 60.33mm OD x 12.7mm W

BEARING - worm gear

2шт.

30

A13082

RING

- retainer, bearing

2шт.

31

A13047

HOUSING ASSY - steering gear

1шт.

32

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" sq. hd.

4шт.

33

A13048

BUSHING

- Gear housing

2шт.

34

25-1518

JAM NUT,Jam, 1 1/8"-12, G5

- jam, 1-1/8" N.F., hex

1шт.

35

92-18

LOCK WASHER,1 1/8"

1 1/8"

1шт.

36

A13081

OIL RESERVOIR

SEAL - oil, levershaft

1шт.

37

A13077

WASHER - retainer, levershaft

1шт.

38

A13078

SHIM,.003" Thk

Levershaft .003" Thk

1шт.

38

A13079

SHIM - levershaft (.010")

1шт.

38

A13080

SHIM,.020" Thk

Levershaft .020" Thk

1шт.

39

A13076

WASHER - thrust, levershaft

1шт.

40

A13074

LEVERSHAFT ASSY - steering gear

1шт.

41

A13075

BEARING

- levershaft

1шт.

42

A13050

GASKET

- side cover

1шт.

43

A13049

COVER - side, hsg

1шт.

44

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

45

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam 1/2" N.F., hex

1шт.

46

V14124

O-RING

SCREW - adj., side cover

1шт.

47

A13086

O-RING

"O" RING - control valve (2-3/4"I.D.)

2шт.

48

A13067

WASHER

- thrust, worm gear

2шт.

49

A13068

X

BEARING - thrust, worm gear

2шт.

50

A13069

RACE

- bearing, worm gear

2шт.

51

A13085

O-RING

"O" RING - control valve (2-3/16" I.D.)

2шт.

52

A13084

O-RING,12.37" ID x 1.443" OD x 0.103"

"O" RING - control valve (1-1/4" I.D.)

2шт.

53

A23645

LOCK VALVE

VALVE ASSY - control (Repair, Figure 112)

1шт.

54

A13071

WASHER

- tongued, internal

1шт.

55

A13070

WASHER

- tongued, ext.-int.

1шт.

56

A13054

NUT

- jam, steering shaft

1шт.

57

A13087

COVER - valve

1шт.

58

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- 3/8" x 3-3/4" N.C., hex.

2шт.
