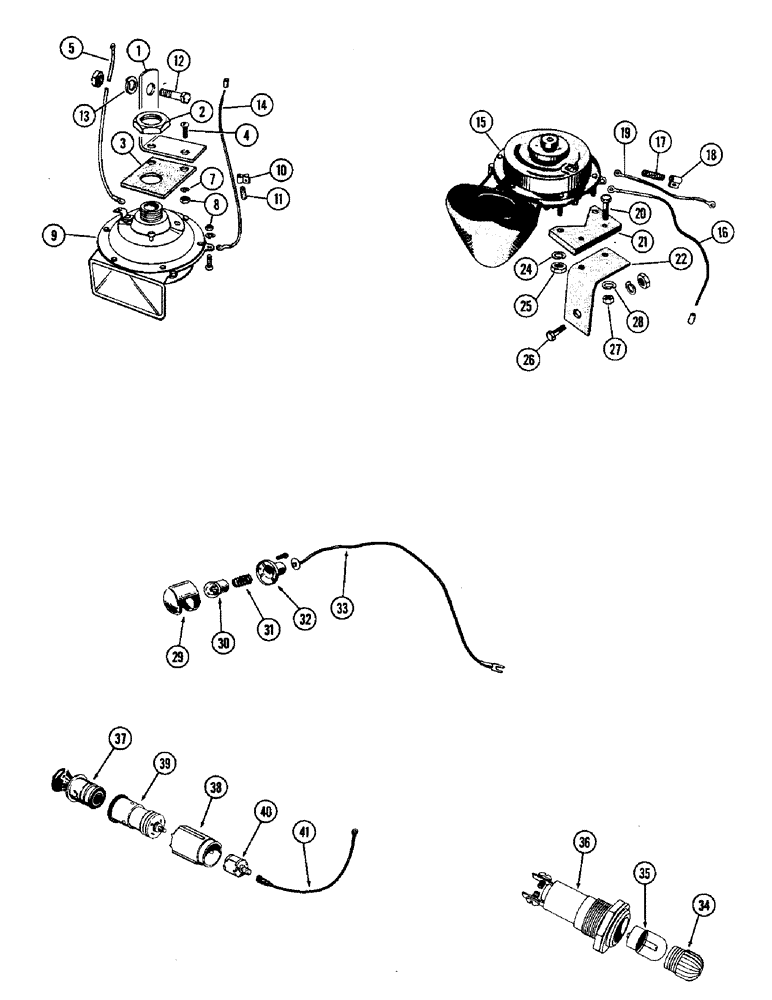

Запчасти Case W9A (066) - A19581 HORN ASSEMBLY, A9974 HORN ASSEMBLY, A7642 DASH LAMP (04) - ELECTRICAL SYSTEMS

A56136

HORN

KIT - warning sound

1шт.

1

A12489

BRACKET - mtg., horn

1шт.

2

A19827

X

NUT - mtg., horn

1шт.

3

A19582

PLATE - mtg., horn

1шт.

4

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- mach., #10 x 1/2" N.C., rd. hd.

3шт.

5

A18924

WIRE - horn to panel conn. (Blk. 34")

1шт.

7

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

8

129-7

NUT,Hex, #10 - 24

- #10 N.C., hex

3шт.

9

A19581

HORN

ASSY - warning sound (12 V)

1шт.

10

A7922

CLIP

- retaining, wire

1шт.

11

A12458

SLEEVE

LOOM - clip, wire

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

A13792

WIRE - horn to strg. column (Bk. 8")

1шт.

15

NSS

NOT SOLD SEPARAT

HORN ASSY - warning sound (Order A56136), A9974 horn assembly

1шт.

16

A13792

WIRE - horn to strg. column (Blk. 8"), A9974 horn assembly

1шт.

17

A12458

SLEEVE

LOOM - clip, wire, A9974 horn assembly

1шт.

18

A7922

CLIP

- retaining, wire, A9974 horn assembly

1шт.

19

A13791

WIRE - horn to panel conn. (Blk. 40"), A9974 horn assembly

1шт.

20

174-100

SCREW,Sl Rnd Hd, #10 - 32 x 3/4"

- mach., #10 x 3/4" rd. hd., A9974 horn assembly

2шт.

21

A12490

BLOCK - insulating, horn, A9974 horn assembly

1шт.

22

A12489

BRACKET - mtg., horn., A9974 horn assembly

1шт.

23

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C., hex., A9974 horn assembly

1шт.

24

92-3

LOCK WASHER,#10

WASHER, LOCK, , A9974 horn assembly #10

2шт.

25

129-27

NUT,Hex, #10 - 32

- #10., hex, A9974 horn assembly

2шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

A9974 horn assembly Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

27

25-114

NUT,1/4"-28, G5

- 1/4" N.F., hex, A9974 horn assembly

2шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , A9974 Horn assembly 1/4"

2шт.

A7642

LAMP

ASSY - dash, instrument panel

2шт.

29

B50319

COVER - bulb, A7642 dash lamp

1шт.

30

R11069

X

BULB - dash lamp (C.P. 12 volt), A7642

1шт.

31

B50262

SPRING - lamp, A7642 dash lamp

1шт.

32

B50320

SOCKET - lamp, A7642 dash lamp

1шт.

33

B50332

WIRE ASSY - dash lamp, A7642

1шт.

A14736

LAMP ASSY - warning, air cleaner

1шт.

34

A15127

LENS

- lamp (Red), A14736 warning lamp

1шт.

35

A15126

BULB

- lamp (12 volt), A14736 warning lamp

1шт.

36

NSS

NOT SOLD SEPARAT

SOCKET - lamp (Order A14736), A14736 warning lamp

1шт.

G44915

X

LIGHTER ASSY - cigarette, G44915 lighter assembly

1шт.

37

A24134

CIGARETTE LIGHTER

UNIT ASSY - pop out, G44915 lighter assembly

1шт.

38

G46381

SHELL - clamp, socket, G44915 lighter assembly

1шт.

39

G44916

SOCKET

ASSY - lighter, G44915 lighter assembly

1шт.

40

G44918

FUSE - lighter, G44915 lighter assembly

1шт.

41

G44022

ELECTRICAL WIRE

WIRE - fuse, G44915 lighter assembly

1шт.
