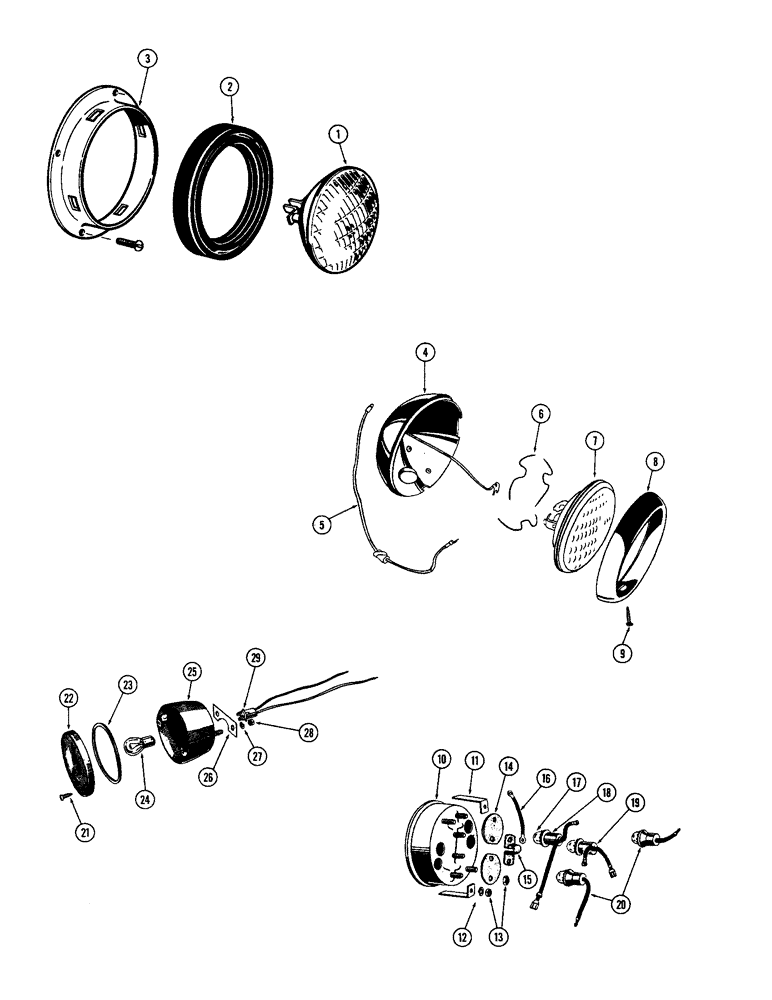

Запчасти Case W9A (064) - A15932 FRONT AND REAR LAMPS, A10701 FRONT AND REAR LAMP (04) - ELECTRICAL SYSTEMS

1

A24572

LAMP

UNIT - sealed, 12 volt (Gasket not used)

4шт.

2

B50285

RING

- mtg., seal unit (Rubber)

4шт.

3

B50296

RING

- mtg., seal unit (Metal)

4шт.

A10701

LAMP ASSY - front and rear

4шт.

4

NSS

NOT SOLD SEPARAT

BODY ASSY - sealed unit (Order A10701), A10701 front and rear lamp

4шт.

5

NSS

NOT SOLD SEPARAT

WIRE - sealed unit to conn. (Order A10701), A10701 front and rear lamp

1шт.

6

73767

GROUND CABLE

CLIP - spring, retainer, A10701 front and rear lamp

3шт.

7

A24572

LAMP

UNIT - sealed, lamp (12 volt), A10701 front and rear lamp

1шт.

8

B50284

MOLDING - retainer, sealed unit, A10701 front and rear lamp

1шт.

9

B50297

SCREW - retainer, molding, A10701 front and rear lamp

1шт.

A13739

GAUGE ASSY.

CLUSTER ASSY - instrument

1шт.

10

NSS

NOT SOLD SEPARAT

BODY ASSY - cluster (Order A13739), A13739 instrument cluster

1шт.

11

A14552

CLAMP - cluster, A13739 instrument cluster

2шт.

12

92-3

LOCK WASHER,#10

WASHER, LOCK, , A13739 instrument cluster #10

6шт.

13

129-7

NUT,Hex, #10 - 24

- #10-32 N.F., hex, A13739 instrument cluster

6шт.

14

A14551

INSULATOR - temp, & fuel gauge, A13739 instrument cluster

2шт.

15

A14550

INSULATOR - temp, ga. to fuel ga., A13739 instrument cluster

1шт.

16

A14549

WIRE - temp. ga. to fuel gauge, A13739 instrument cluster

1шт.

17

A14553

BULB

- lighting, cluster (12 volt), A13739 instrument cluster

4шт.

18

A14548

SOCKET ASSY - gen. warning lite, A13739 instrument cluster

1шт.

19

A14547

SOCKET ASSY - oil pressure lite, A13739 instrument cluster

1шт.

20

G45029

SOCKET ASSY - fuel & temp. ga. lite, A13739 instrument cluster

2шт.

A16734

X

LIGHT ASSY - stop and tail

2шт.

21

B50219

SCREW - retaining, lens, A16732 stop and tail lamps

2шт.

22

B50336

LENS

- lamp (Red), A16732 stop and tail lamps

1шт.

23

B50327

GASKET - lens, A16732 stop and tail lamps

1шт.

24

R11078

LAMP

BULB - lite, 12-16 volt, A16732 stop and tail lamps

1шт.

25

NSS

NOT SOLD SEPARAT

BODY ASSY - stop & tail lite, A16732 stop and tail lamps

1шт.

26

A16697

STRAP - mtg., stop & tail lite, A16732 stop and tail lamps

2шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , A16732 Stop and tail lamps 1/4"

4шт.

28

25-104

NUT,1/4"-20, G5

A16732 Stop and tail lamps 1/4"-20, G5

4шт.

29

A16731

PLUG

ASSY - tail and stop light, A16732 stop and tail lamps

2шт.
