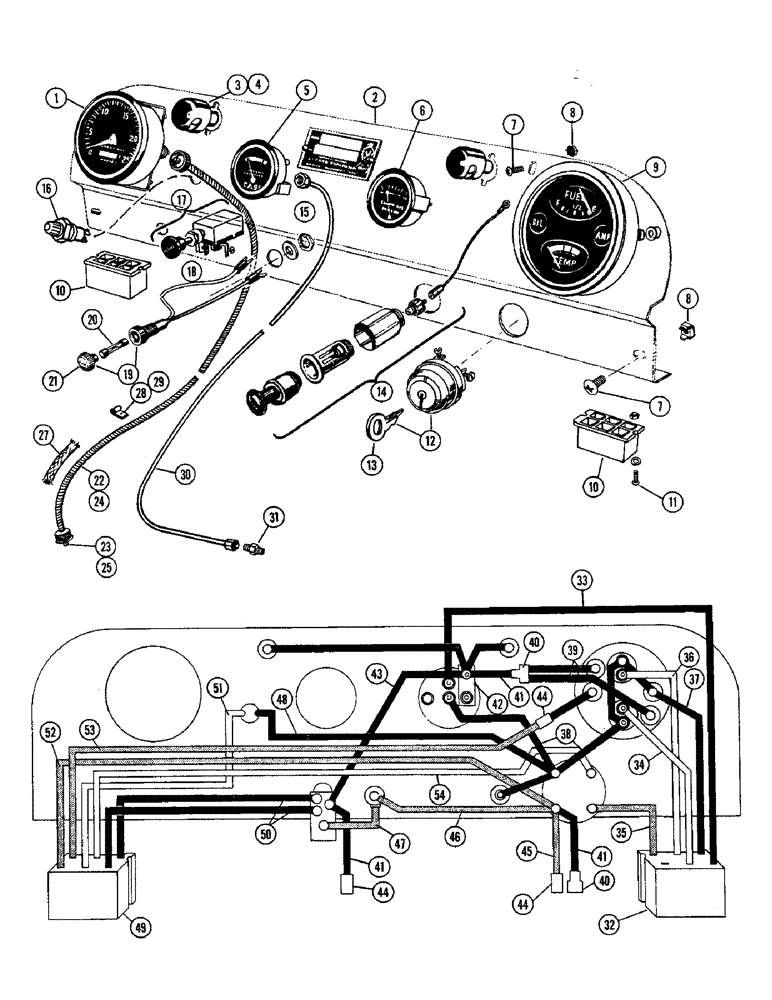

Запчасти Case W9A (060) - INSTRUMENT PANEL ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

A11190

TACHOMETER

GAUGE ASSY - tachometer

1шт.

2

A14729

PANEL - instrument

1шт.

3

A7642

LAMP

ASSY - dash (12 V.) (Repairs, Figure 66)

2шт.

4

187-1007

SCREW

- self-tap, #6-32 x 5/16" rd. hd.

4шт.

5

A18504

GAUGE ASSY.

GAUGE ASSY - pressure, conv. oil

1шт.

6

A13756

GAUGE

ASSY - temp, converter oil

1шт.

7

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- mach., 1/4" x 5/8" N.C. truss hd.

4шт.

8

131-116

NUT

- speed nut, 1/4"-20 Tinnerman

4шт.

9

A13739

GAUGE ASSY.

CLUSTER ASSY - inst., Repairs, Figure 64)

1шт.

10

A13742

BLOCK - connector, R.H. & L.H. wire assy

2шт.

11

187-1007

SCREW

- mach., #6 x 5/16" N.C. rec. hd.

4шт.

12

A11373

SWITCH

- ignition & starter, Includes Ref 13

1шт.

13

A20346

KEY

- starting & ign. switch

1шт.

14

G44915

X

LIGHTER ASSY - cigarette (Repair, Figure 66)

1шт.

15

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

COUPLING - female, 1/8" x 1/8", #66FL (At ga.)

1шт.

16

A14736

LIGHT ASSY - warning, air cleaner (Repairs, Figure 66)

1шт.

17

A20201

SWITCH

ASSY - lighting

1шт.

18

A7817

KNOB

- lighting switch

1шт.

19

A8006

NOZZLE HOLDER

HOLDER ASSY - fuse

1шт.

20

223-20

FUSE,20 Amp, Type SFE

- holder assy (SFE 20)

1шт.

21

A10958

CAP

- fuse holder

1шт.

22

A12627

CABLE PULLING GRIP

HOUSING ASSY - tach. drv. (Gasoline)

1шт.

23

A13199

CABLE

- tach. drive, inner (Gasoline)

1шт.

24

A12430

HOUSING

ASSY - tach. drive (Diesel)

1шт.

25

A13200

CABLE

- tach. drv, inner (Diesel)

1шт.

26

O4449AB

NIPPLE, LUBE

NIPPLE - tach. hsg. (Diesel only)

1шт.

27

A19127

LOOM - tach. cable (Gasoline)

1шт.

28

O3092AB

CLIP - tach. housing

1шт.

29

O6168AB

CLIP - tach. housing

2шт.

30

A8216

TUBE

- pressure, converter

1шт.

31

222-20

CONNECTOR, ELEC,3/8"-24 x 1/8" NPTF

CONNECTOR - male, 1/8" x 1/8", #68FL (At conv.)

1шт.

32

A15262

CONNECTOR ASSY - panel wire, R.H.

1шт.

33

NSS

NOT SOLD SEPARAT

WIRE - blk. to conv. oil temp. ga. (Blk. 12-1/4")

1шт.

34

NSS

NOT SOLD SEPARAT

WIRE - block to conv. temp. ga. (Wht. 5-1/4")

1шт.

35

NSS

NOT SOLD SEPARAT

WIRE - blk. to st. swt. "Ign." term (red 7")

1шт.

36

NSS

NOT SOLD SEPARAT

WIRE - blk. to fuel ga. (Wht. 7")

1шт.

37

A14548

SOCKET ASSY - arm to blk. (Part of A13739)

1шт.

38

A13755

WIRE - conv. & eng. temp. ga. to starter switch "A" term. (Black 6")

2шт.

39

G45029

SOCKET ASSY - gauge cluster light (Part of A13739)

2шт.

40

A8210

CONNECTOR, ELEC

CONNECTOR - three wire

2шт.

41

A13753

WIRE - elect. blk, light swt. & ign. swt. "B" term to connector (Black 3")

3шт.

42

A9348

BLOCK - terminal, electrical

1шт.

43

A13754

ELECTRICAL WIRE

WIRE - light swt. to elec. blk. (Blk. 9")

1шт.

44

O7549AB

CONNECTOR - two wire

3шт.

45

A14734

ELECTRICAL WIRE

WIRE - st. swt. "B" term. to conn. (Red 3")

1шт.

46

A13752

WIRE - fuse to ign. swt. "B" term. (Red 13")

1шт.

47

A13751

WIRE - light swt. to fuse (Red 3")

1шт.

48

A14735

WIRE - ign. swt. "A" term. warning light (Blk. 17")

1шт.

49

A14731

CONNECTOR ASSY - panel wire, L.H.

1шт.

50

NSS

NOT SOLD SEPARAT

WIRE - blk. to tail light swt. (Blk. 12")

2шт.

51

NSS

NOT SOLD SEPARAT

WIRE - blk. to cleaner warning light (Wht. 11")

1шт.

52

NSS

NOT SOLD SEPARAT

WIRE - block to ign. swt. "B" term (Red 23-1/2")

1шт.

53

NSS

NOT SOLD SEPARAT

WIRE - blk. to oil ga. conn. (Red 14")

1шт.

54

NSS

NOT SOLD SEPARAT

WIRE - blk. to ign. swt. "S" term. (Wht. 24")

1шт.
