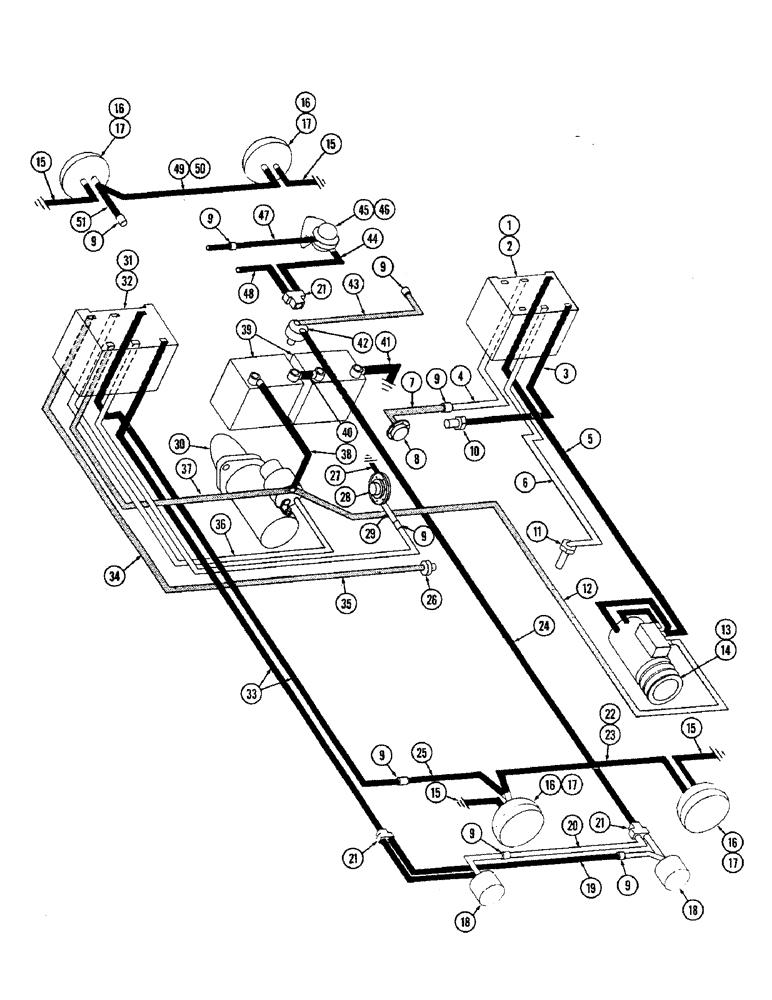

Запчасти Case W9A (056) - ELECTRICAL SYSTEM, DIESEL (04) - ELECTRICAL SYSTEMS

1

A15252

PLUG ASSY - wire, R.H.

1шт.

2

A13777

PLUG - connector, wire

1шт.

3

NSS

NOT SOLD SEPARAT

WIRE - plug to conv. temp. swt. (Blk. 65")

1шт.

4

NSS

NOT SOLD SEPARAT

WIRE - plug to fuel tank unit (Wht. 67")

1шт.

5

NSS

NOT SOLD SEPARAT

WIRE - plug to regulator ("A" term) (Blk. 110")

1шт.

6

NSS

NOT SOLD SEPARAT

WIRE - plug to eng. tem. swt. (Wht. 120")

1шт.

7

A14733

ELECTRICAL WIRE

WIRE - fuel tank unit to conn. (Red 17")

1шт.

8

A17219

UNIT

SENDING UNIT - fuel

1шт.

9

O7549AB

CONNECTOR - two wire

8шт.

10

A13795

SENDER UNIT

SWITCH - converter oil temp.

1шт.

11

A13796

X

SWITCH - sending, engine temp

1шт.

12

A11950

WIRE - reg. "B" term. to st. sol. (Red 67")

1шт.

13

A21533

X

GENERATOR ASSY - engine (See Figure 54)

1шт.

14

A33983

GENERATOR

ASSY - engine (See Figure 54)

1шт.

15

A15941

ELECTRICAL WIRE

WIRE - ground, ft. & rear lamp (W/A15932) (Blk. 5")

4шт.

16

A15932

X

LAMP ASSY - frt. & rear (Repair Figure 64) (Rubber mtg.)

4шт.

17

A10701

LAMP ASSY - frt. & rear (Repair Figure 64) (Metal Mtd.)

4шт.

18

A16732

LAMP ASSY - stop & tail, rear (Repair Figure 64)

2шт.

19

A13252

ELECTRICAL WIRE

WIRE - 3 wire conn. L.H. to R.H. stop lite (Blk. 18")

1шт.

20

A13251

ELECTRICAL WIRE

WIRE - 3 wire conn. R.H. to L.H. stop lite (Wht. 18")

1шт.

21

A8210

CONNECTOR, ELEC

CONNECTOR - three wire

3шт.

22

A16367

ELECTRICAL WIRE

WIRE - lamp to lamp, rear (Rubber mtd.) (Blk. 20")

1шт.

23

A12475

WIRE - lamp to lamp, rear (Metal mtg.) degrees

1шт.

24

A12478

WIRE - stop light swt. to conn's. (Blk. 136")

1шт.

25

A15948

ELECTRICAL WIRE

WIRE - left rear lamp to conn. (Blk. 46")

1шт.

26

A13794

TRANSMITTER

UNIT - sending, eng. oil pressure

1шт.

27

O5598AB

WIRE - vacuum swt. to grd. (Blk. 6-1/2")

1шт.

28

A14739

SWITCH - vacuum, air cleaner warning

1шт.

29

O8335AB

X

WIRE - vac. swt. to wire conn.

1шт.

30

A21281

STARTING MOTOR

STARTER ASSY - engine (12 volt)

1шт.

31

A16377

PLUG ASSY - wire, L.H.

1шт.

32

A13777

PLUG - connector, wire

1шт.

33

NSS

NOT SOLD SEPARAT

WIRE - stop lite & rear lamp connector to plug (Black 109")

2шт.

34

NSS

NOT SOLD SEPARAT

WIRE - plug to eng. oil press. unit (Red 82")

1шт.

35

NSS

NOT SOLD SEPARAT

WIRE - plug to cleaner swt. conn. (Wht. 98")

1шт.

36

NSS

NOT SOLD SEPARAT

WIRE - plug to st. sol. "S" term. (Wht. 86")

1шт.

37

NSS

NOT SOLD SEPARAT

WIRE - plug to st. sol. "B" term. (Red 85")

1шт.

38

O3259AB

CABLE - battery to st. sol. "B" term

1шт.

39

A8325

BATTERY - dry charged

2шт.

40

A7440

CABLE

-, Serial Range: battery-battery

1шт.

41

O6354AB

X

CABLE - ground, battery

1шт.

42

A12491

SWITCH

ASSY - brake, stop light

1шт.

43

A15260

WIRE - stop lite swt. to conn. (Red 39")

1шт.

44

A13791

WIRE - horn to conn. (Black 40")

1шт.

45

A19581

HORN

ASSY - warning sound (Repair Figure 66)

1шт.

46

A9974

(NS) HORN ASSY - warning sound (Repair Figure 64)

1шт.

47

A12476

WIRE - horn to strg. column conn. (Green 26")

1шт.

48

A13202

WIRE - conn. to windshield wiper (Yellow 4")

1шт.

49

A16365

WIRE - head lamp to lamp (Rubber mtd.) (Blk. 38")

1шт.

50

A13252

ELECTRICAL WIRE

WIRE - head lamp to lamp (Metal mtd.) (Blk. 18")

1шт.

51

A16366

WIRE - left frt. lamp to conn. (Blk. 24")

1шт.
