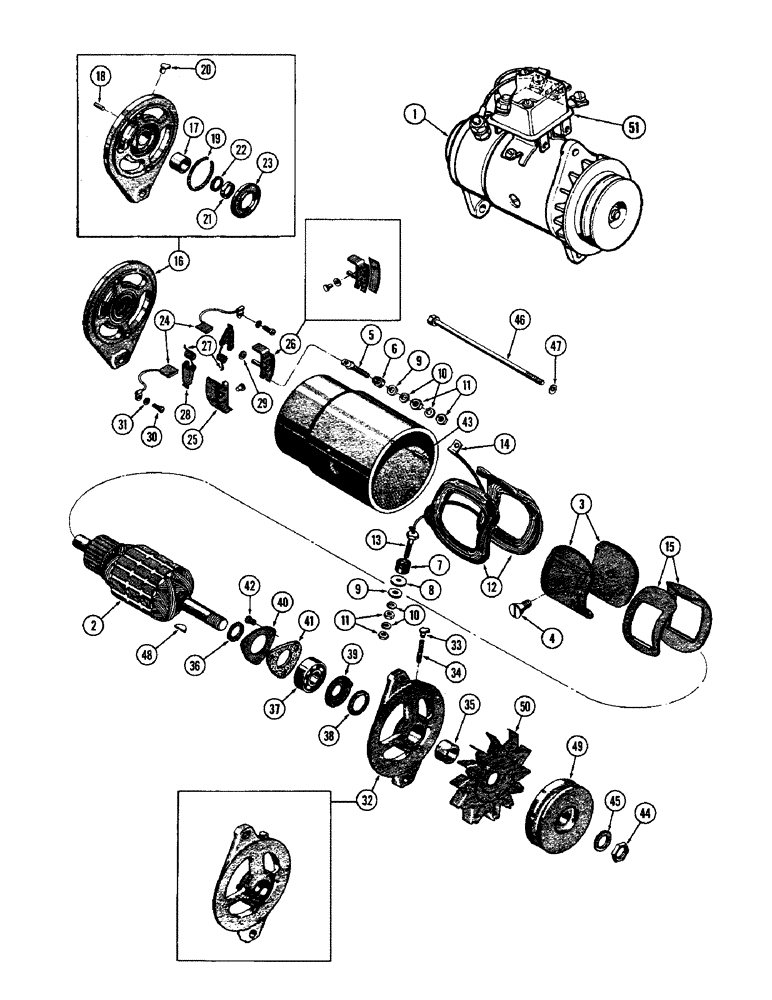

Запчасти Case W9A (055C) - A21533 GENERATOR (04) - ELECTRICAL SYSTEMS

1

A21533

X

(NS) GENERATOR ASSY - electrical (Order A33983) (Delco-Remy #1100382)

1шт.

1

103814A1R

REMAN-GENERATOR

Generator

1шт.

1

103814A1C

CORE-GENERATOR

Return Number

1шт.

2

A25427

SPARE PART ARMATURE ASSY - generator

1шт.

3

R16145

SPARE PART SHOE - pole

2шт.

4

NSS

NOT SOLD SEPARAT

SCREW - pole shoe

2шт.

5

R16146

X

STUD - terminal "A"

1шт.

6

R16147

BUSHING

BUSHING - insulator, term. "A" stud

1шт.

7

R15077

X

BUSHING - insulator, term "F" stud

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - insulator, term. "F" stud

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - plain, term. "A" & "F" stud

2шт.

10

NSS

NOT SOLD SEPARAT

WASHER - lock, term. "A" & "F" stud

4шт.

11

NSS

NOT SOLD SEPARAT

NUT - hex., term. "A" & "F" stud

4шт.

12

R16149

COIL ASSY.

COIL ASSY - field

1шт.

13

R16150

X

STUD - field terminal

1шт.

14

NSS

NOT SOLD SEPARAT

CLIP -, Serial Range: terminal-brush

1шт.

15

R16152

INSULATOR

INSULATOR - field coil

2шт.

16

R16153

X

PLATE ASSY - end, commutator

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - end plate

1шт.

18

NSS

NOT SOLD SEPARAT

PIN - dowel, end plate

1шт.

19

NSS

NOT SOLD SEPARAT

WICK - oil, end plate

1шт.

20

NSS

NOT SOLD SEPARAT

OILER - end plate

1шт.

21

NSS

NOT SOLD SEPARAT

CUP - felt retainer

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - felt, end plate

1шт.

23

NSS

NOT SOLD SEPARAT

RETAINER - wick

1шт.

24

R4286

BRUSH, COMMUTATOR

BRUSH BRUSH - main, gen.

2шт.

25

R16159

X

HOLDER - ground brush

1шт.

26

R16160

X

HOLDER - insulated brush

1шт.

27

R16161

VALVE SPRING

SPRING - brush

2шт.

28

R15090

ARM

ARM - brush

2шт.

29

NSS

NOT SOLD SEPARAT

WASHER - spacer, brush arm

2шт.

30

NSS

NOT SOLD SEPARAT

SCREW - brush lead

2шт.

31

NSS

NOT SOLD SEPARAT

LOCKWASHER - lead screw

2шт.

32

R16163

X

PLATE ASSY - drive end

1шт.

33

NSS

NOT SOLD SEPARAT

OILER - end plate

1шт.

34

NSS

NOT SOLD SEPARAT

WICK - oil, drive plate

1шт.

35

R16166

BUSHING

COLLAR - spacer, drive plate, outer

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - spacer, drive plate, inner

1шт.

37

G10623

BALL BEARING

BEARING - ball, drive end plate

1шт.

38

NSS

NOT SOLD SEPARAT

WASHER - felt, drive plate

1шт.

39

NSS

NOT SOLD SEPARAT

PLATE - retainer, felt washer

1шт.

40

R15101

PLATE

PLATE - retainer, bearing

1шт.

41

R16170

GASKET

GASKET - brg. retainer

1шт.

42

NSS

NOT SOLD SEPARAT

SCREW - retainer plate

3шт.

43

NSS

NOT SOLD SEPARAT

PIN - dowel, drive plate

1шт.

44

R15105

X

NUT - drive end, armature shaft

1шт.

45

R16171

SPRING WASHER

WASHER - lock, shaft nut

1шт.

46

R16172

BOLT

BOLT - attaching, end plates

2шт.

47

NSS

NOT SOLD SEPARAT

LOCKWASHER - attaching bolt

2шт.

48

R15047

X

KEY - shaft, drive end, Woodruff

1шт.

49

A22366

PULLEY

PULLEY - drive, generator

1шт.

50

A25449

FAN

FAN - vent, generator

1шт.

51

A20792

REGULATOR

REGULATOR ASSY - voltage, generator

1шт.
