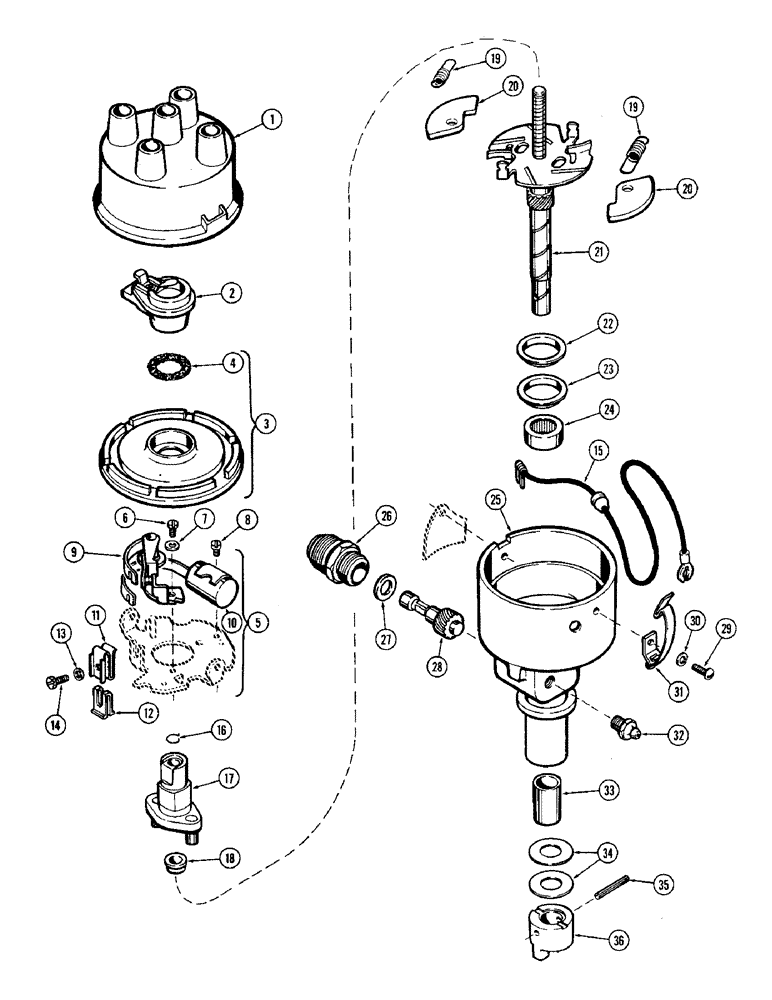

Запчасти Case W9A (037A) - A24506 DISTRIBUTOR, GASOLINE (04) - ELECTRICAL SYSTEMS

A24506

DISTRIBUTOR

ASSY - ignition (Autolite IBT4403)

1шт.

1

A24564

CAP

- distributor

1шт.

2

A24566

ROTOR

- distributor

1шт.

3

A24763

PLATE

ASSY - seal

1шт.

4

A24764

WASHER

- seal plate (Felt)

1шт.

5

A40330

PLATE

ASSY - breaker

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW - breaker contact

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - plain #8 SAE

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW - #6 x 3/16" N.C. fill. hd.

1шт.

9

A24771

PACKAGE, REPAIR

BREAKER - contact

11шт.

10

A8370

PACKAGE

CONDENSER - distributor

1шт.

11

NSS

NOT SOLD SEPARAT

CLIP - retaining (Order A40330)

1шт.

12

NSS

NOT SOLD SEPARAT

INSULATOR - distributor (Order A40330)

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - plain, #6 SAE

1шт.

14

NSS

NOT SOLD SEPARAT

SCREW - breaker clip

1шт.

15

A24772

HARNESS

WIRE - primary

1шт.

16

NSS

NOT SOLD SEPARAT

RING - snap, cam retaining

1шт.

Part of distributor shaft repair kit P/N A40326

1шт.

17

A24762

CAM - distributor

1шт.

18

NSS

NOT SOLD SEPARAT

SPACER - cam (Order A40326)

1шт.

Part of distributor shaft repair kit P/N A40326

1шт.

19

A24778

SPRING KIT

SPRING SET - dist. governor

1шт.

20

A24754

WEIGHT - governor

1шт.

21

A25979

SHAFT

- drive, distributor

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - thrust, outer drive sft. (Order A40326)

1шт.

Part of distributor shaft repair kit P/N A40326

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - thrust, inner drive sft. (Order A40326)

1шт.

Part of distributor shaft repair kit P/N A40326

1шт.

24

NSS

NOT SOLD SEPARAT

BEARING - needle, dist. (Order A40326)

1шт.

Part of distributor shaft repair kit P/N A40326

1шт.

25

NSS

NOT SOLD SEPARAT

BASE - distributor (Order A24506)

1шт.

26

A24781

HOUSING - shaft, tach. drive

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - thrust, tach. drive sft. (Order A40326)

1шт.

Part of distributor shaft repair kit P/N A40326

1шт.

28

A24761

SHAFT

- drive, tach.

1шт.

29

A24779

SCREW - mtg., cap clamp & breaker plate

2шт.

30

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

31

A40329

SPRING

CLAMP KIT - spring, dis. cap (Set of 2)

1шт.

32

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, 1/4" str.

1шт.

33

NSS

NOT SOLD SEPARAT

BUSHING - distributor (Bronze) (Order A40326)

2шт.

Part of distributor shaft repair kit P/N A40326

1шт.

35

NSS

NOT SOLD SEPARAT

PIN - roll, 1/8" x 13/16"

1шт.

Part of distributor shaft repair kit P/N A40326

1шт.

Part of Coupling Kit, P/N A40327

1шт.

34

NSS

NOT SOLD SEPARAT

WASHER - thrust, dr. sft. (Lower) (Order A40326)

2шт.

Part of distributor shaft repair kit P/N A40326

1шт.

Part of Coupling Kit, P/N A40327

1шт.

36

NSS

NOT SOLD SEPARAT

COUPLING - drive shaft (Order A40327)

1шт.

Part of Coupling Kit, P/N A40327

1шт.

A40326

PACKAGE, REPAIR

REPAIR KIT - dist. shaft Includes: Ref. 16, 18, 22, 23, 24, 27, 33, 34 and 35

1шт.

A40327

COUPLING KIT - dist. Includes: Ref. 35, 34, and 36

1шт.
