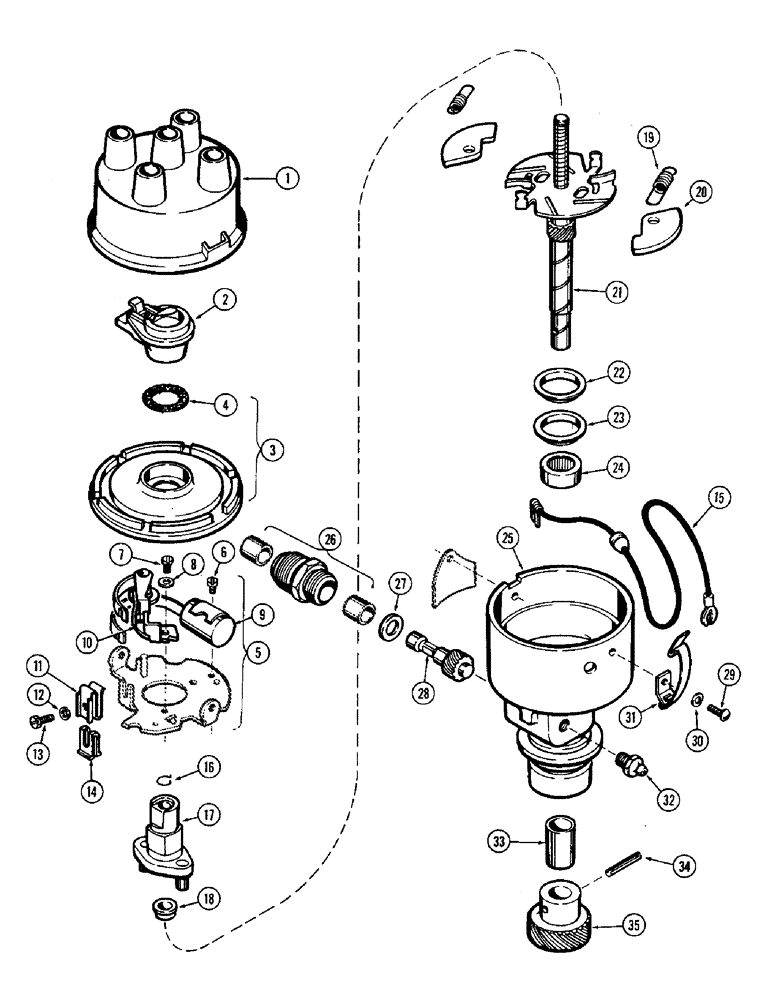

Запчасти Case W9A (036) - A24508 DISTRIBUTOR ASSEMBLY, GASOLINE (04) - ELECTRICAL SYSTEMS

A24508

DISTRIBUTOR

ASSY - ignition

1шт.

1

A24564

CAP

ASSY - distributor

1шт.

2

A24566

ROTOR

- distributor

1шт.

3

A24763

PLATE

ASSY - seal

1шт.

4

A24764

WASHER

- plate assy. (Felt)

1шт.

5

A24769

X

PLATE ASSY - breaker

1шт.

6

169-56

SCREW - #6-32 x 3/16" Fillister hd.

1шт.

7

A24776

SCREW,Locking, #8 - 32 x 3/16"

- lock, breaker contact

1шт.

8

195-509

WASHER,3/16"

- plain, #8 SAE

1шт.

9

A8370

PACKAGE

CONDENSER - distributor

1шт.

10

A24558

POINT

CONTACT SET - breaker

1шт.

11

A24774

CLIP

- retaining, breaker

1шт.

12

195-506

WASHER,#6

- plain, SAE #6

1шт.

13

A24775

SCREW,0.138"-32 x 1/32"

- clamp, spring

1шт.

14

A24773

INSULATOR

- breaker clip

1шт.

15

A24772

HARNESS

LEAD ASSY - primary

1шт.

16

A24756

RING - snap, cam retaining

1шт.

17

A24762

CAM ASSY - distributor

1шт.

18

A24757

SPACER - cam

1шт.

19

A24778

SPRING KIT

SPRING SET - governor weight

1шт.

20

A24754

WEIGHT - governor

2шт.

21

A24768

DRIVE SHAFT

SHAFT - drive

1шт.

22

A24753

WASHER

- drive shaft (Outer)

1шт.

23

A24752

WASHER

- drive shaft (Inner)

1шт.

24

A24767

BEARING

- needle

1шт.

25

NSS

NOT SOLD SEPARAT

BASE ASSY - distributor (Order A24508)

1шт.

26

A24781

HOUSING ASSY - tach. drive

1шт.

27

A24755

WASHER - thrust, tach. drive

1шт.

28

A24761

SHAFT

& GEAR - tach. drive

1шт.

29

A24779

SCREW - mtg., breaker plate

2шт.

30

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

31

A24760

CLAMP

ASSY - spring, dist. cap

2шт.

32

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - lube, distributor (Grease)

1шт.

33

A24766

BUSHING

- housing, dist. (Bronze)

1шт.

34

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, , Gear 1/8" x 15/16", Slotted

1шт.

35

A22847

X

GEAR - drive, distributor

1шт.
