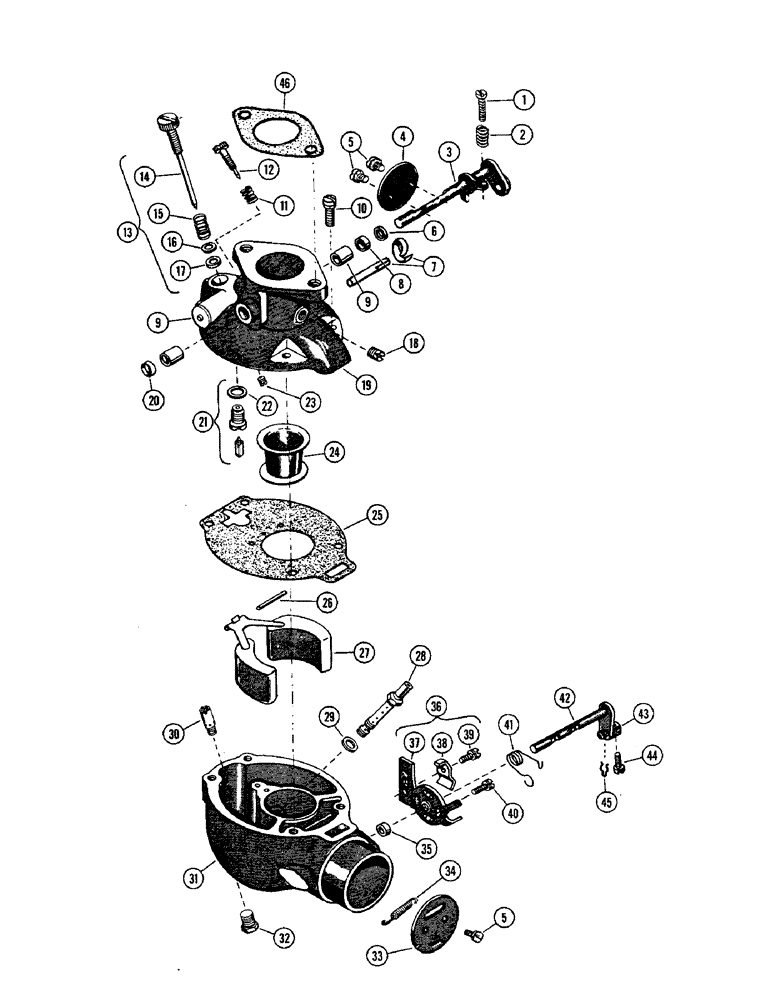

Запчасти Case W9A (042) - A20813 CARBURETOR ASSEMBLY, GASOLINE (03) - FUEL SYSTEM

A20813

CARBURETOR

ASSY - engine fuel

1шт.

1

B51680

SCREW - throttle stop

1шт.

2

B51742

SPRING

- screw, throttle stop

1шт.

3

B51665

SHAFT & LEVER ASSY - throttle

1шт.

Part of carburetor repair kit P/N B51934

1шт.

4

B51668

FLY - throttle, 22 degrees (3/64" off-set)

1шт.

5

B51702

SCREW,#6 - 32 x 1/4"

- throttle & choke fly

4шт.

Part of carburetor repair kit P/N B51934

1шт.

6

B51851

RETAINER

- packing, throttle shaft

1шт.

Part of carburetor repair kit P/N B51934

1шт.

7

B53939

SHAFT ASSY - throttle stop

1шт.

8

B51806

PACKING

- throttle shaft

1шт.

Part of carburetor gasket kit, P/N B51725

1шт.

9

B51858

BUSHING

- throttle shaft

2шт.

Part of carburetor repair kit P/N B51934

1шт.

10

B51684

SCREW - throttle hsg.

4шт.

11

B51744

SPRING

- idler needle

1шт.

Part of carburetor repair kit P/N B51934

1шт.

12

B51789

NEEDLE

- adj., idler

1шт.

13

B51796

NEEDLE

ASSY - adj., carburetor

1шт.

14

B51798

NEEDLE

- adj., main

1шт.

15

B51732

VALVE SPRING

SPRING - main adj. needle

1шт.

16

B51870

WASHER

- main adj. needle

1шт.

17

B51723

GASKET

- main adj. needle

1шт.

Part of carburetor gasket kit, P/N B51725

1шт.

18

B51696

SCREW - set, throttle hsg

1шт.

19

B51908

HOUSING ASSY - throttle, carburetor

1шт.

20

B51850

RETAINER CUP

CUP - throttle shaft

1шт.

Part of carburetor repair kit P/N B51934

1шт.

21

B51914

VALVE

FLOAT VALVE ASSY - throttle hsg.

1шт.

Part of carburetor repair kit P/N B51934

1шт.

22

B51703

GASKET

- seat, float valve

1шт.

Part of carburetor gasket kit, P/N B51725

1шт.

23

B51828

JET

- idle

1шт.

Part of carburetor repair kit P/N B51934

1шт.

24

B51817

VENTURI

- carb.

1шт.

25

B51704

GASKET

- throttle, Serial Range: hsg.-bowl

1шт.

Part of carburetor gasket kit, P/N B51725

1шт.

26

B51778

SHAFT

- float

1шт.

Part of carburetor gasket kit, P/N B51725

1шт.

27

B51773

FLOAT

ASSY - carburetor

1шт.

28

B51822

NOZZLE - main

1шт.

29

B51724

GASKET

- main nozzle

1шт.

Part of carburetor gasket kit, P/N B51725

1шт.

30

B51781

SEAT - needle, main adj.

1шт.

Part of carburetor repair kit P/N B51934

1шт.

31

B51651

BODY ASSY - carburetor

1шт.

32

B51887

PLUG

- drain, body bowl

1шт.

33

B51762

VALVE

FLY ASSY - choke

1шт.

34

B51743

SPRING

- flapper, choke fly

1шт.

35

B51802

PACKING

- shaft, choke

1шт.

Part of carburetor repair kit P/N B51934

1шт.

36

B51771

BRACKET ASSY - choke

1шт.

37

NSS

NOT SOLD SEPARAT

BRACKET - choke (Order B51771)

1шт.

38

B51765

CLIP

- choke bracket

1шт.

39

B51689

SCREW -, Serial Range: clip-bracket

1шт.

40

B51686

SCREW - choke bracket

2шт.

41

B51733

SPRING - return, choke

1шт.

Part of carburetor repair kit P/N B51934

1шт.

42

B51750

LEVER ASSY - choke

1шт.

43

B51764

PIVOT

SWIVEL - lever, choke

1шт.

44

B51698

SCREW,0.164" - 32 x 5/16"

- swivel, choke

1шт.

45

B51877

SPLIT PIN

PIN - hair, choke swivel

1шт.

46

O889AB1

X

GASKET - carb. to intake manifold

1шт.

221-831

PLUG

- pipe, 1/8" sq. hd. (No. illus.)

1шт.

B51725

X

GASKET KIT - carb., incl. parts marked (#)

1шт.

B51934

KIT

REPAIR KIT - carb., includes: Ref. 3, 5, 6, 9, 11, 20, 21, 23, 30, 35 and 41

1шт.
