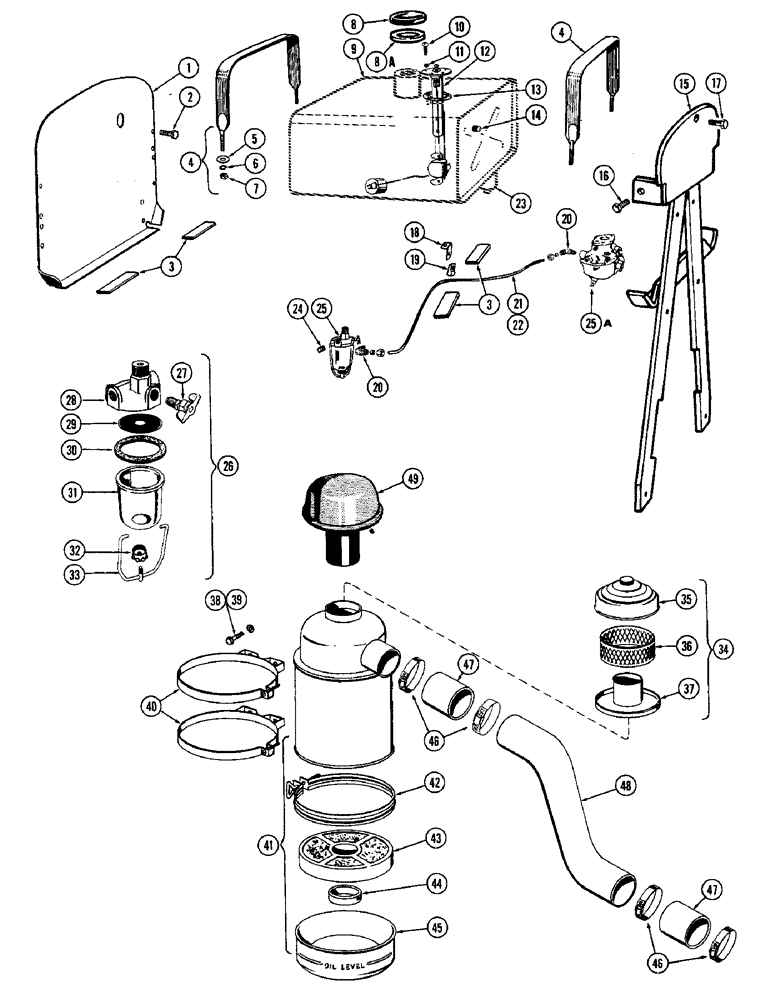

Запчасти Case W9A (040) - FUEL TANK SYSTEM, GASOLINE, O1933AB FUEL STRAINER, OIL BATH (03) - FUEL SYSTEM

1

A15205

PLATE - mtg., fuel tank, rear

1шт.

2

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F., hex.

6шт.

3

A7390

CUSHION - mtg., fuel tank

4шт.

4

A12269

STRAP ASSY - hold down, fuel tank

2шт.

5

195-25

WASHER,3/8"

- plain, 13/32" I.D. x 13/16" O.D.

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

8

A33558

CAP

ASSY - filler, fuel tank

1шт.

8a

A20619

GASKET

- fuel filler cap

1шт.

9

A15993

TANK ASSY - fuel

1шт.

10

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- mach., #10 x 7/16" N.F., rd. hd.

5шт.

11

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

12

A17219

UNIT

ASSY - sending, fuel tank (12V)

1шт.

13

A11822

GASKET

- sending gauge

1шт.

14

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, 1/2" sq. hd.

1шт.

15

A12238

SUPPORT ASSY - fuel tank and side plate

1шт.

16

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2" x 1-1/2" N.F. hex.

2шт.

17

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

2шт.

18

A13195

STRAP - support, fuel tank

1шт.

19

O9649AB

CLIP - fuel tank

1шт.

20

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR - 5/16" tube x 1/8" P.T., #68 Fl.

2шт.

21

A17850

TUBE - fuel, strainer to carb. (w/dry air cleaner)

1шт.

22

A16510

TUBE - fuel, strainer to carb. (w/oil bath air cleaner)

1шт.

23

217-102

PLUG, DRAIN

VALVE - fuel tank water drain

1шт.

24

221-1849

PLUG

- pipe, 1/8" hex. socket hd.

1шт.

25

O1933AB

X

STRAINER ASSY - fuel

1шт.

25a

A20813

CARBURETOR

ASSY - engine (Repairs, Figure 42)

1шт.

26

O1933AB

X

STRAINER ASSY - fuel, O1933AB fuel strainer

1шт.

27

A11205

VALVE

ASSY - needle, O1933AB fuel strainer

1шт.

28

A11215

BODY

- fuel strainer, O1933AB

1шт.

29

A11202

SCREEN

- fuel, O1933AB fuel strainer

1шт.

30

A11203

GASKET

- body to bowl (Cork), O1933AB fuel strainer

1шт.

31

A11204

BOWL

- fuel (Glass), O1933AB fuel strainer

1шт.

32

A11210

ADJUSTER

CUP NUT - retaining, fuel bowl, O1933AB fuel strainer

1шт.

33

A11206

BAIL

- fuel bowl, O1933AB fuel strainer

1шт.

34

A7486

X

PRE-CLEANER ASSY - air cleaner (Use A21430), oil bath air cleaner (optional)

1шт.

35

A8301

COVER - pre-screener, oil bath air cleaner (optional)

1шт.

36

A8300

FILTER

SCREEN - pre-screener, oil bath air cleaner (optional)

1шт.

37

A8302

SLEEVE - pre-screener, oil bath air cleaner (optional)

1шт.

38

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Oil bath air cleaner (optional) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

39

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Oil bath air cleaner (optional) Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

40

A16504

BAND ASSY - support, air cleaner, oil bath air cleaner (optional)

2шт.

41

A20000

CLEANER ASSY - air, 7" oil bath, oil bath air cleaner (optional)

1шт.

42

A8297

CLAMP

ASSY - cup & screen retaining, oil bath air cleaner (optional)

1шт.

43

A8295

SCREEN - oil, oil bath air cleaner (optional)

1шт.

44

A8298

CLAMP - retaining, oil cup, oil bath air cleaner (optional)

1шт.

45

A8296

CUP - oil, oil bath air cleaner (optional)

1шт.

46

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, Wittek #50, oil bath air cleaner (optional)

4шт.

47

A20197

HOSE ASSY.

HOSE - air cleaner tube, oil bath air cleaner (optional)

2шт.

48

A16505

TUBE - air cleaner tube, oil bath air cleaner (optional)

1шт.

49

A21430

CAP

PRE-SCREENER - air cleaner, oil bath air cleaner (optional)

1шт.
