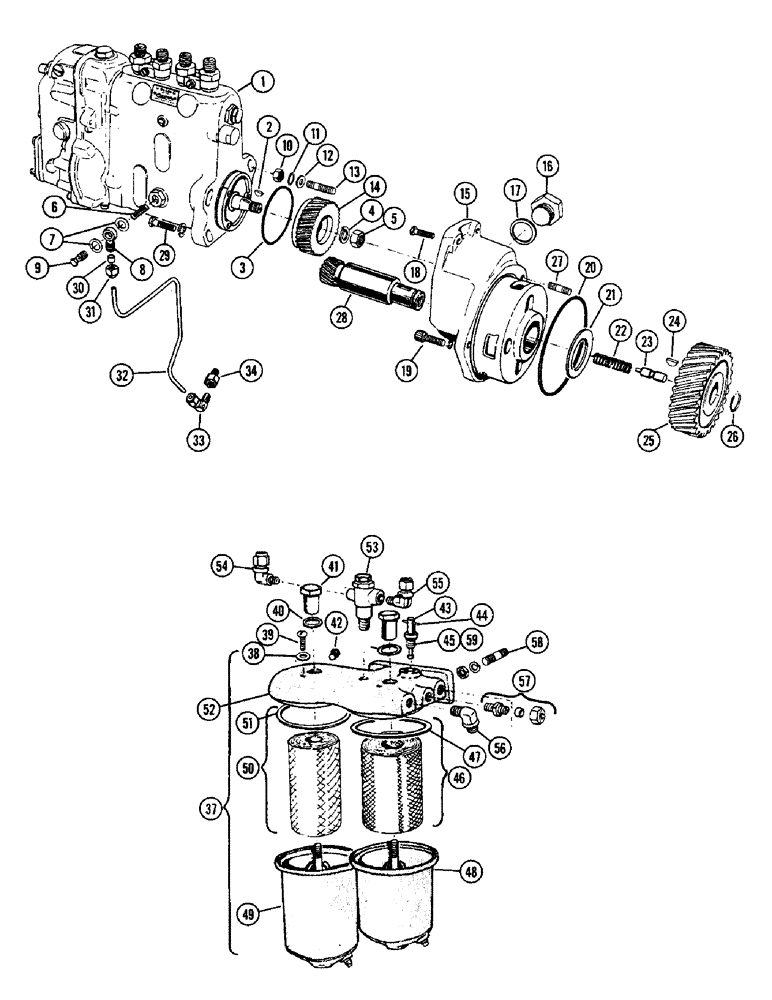

Запчасти Case W9A (010) - FUEL INJECTOR PUMP, DIESEL, FIRST AND SECOND STAGE FILTERS (03) - FUEL SYSTEM

1

A20448

PUMP ASSY - fuel, 2000 RPM

1шт.

2

A20933

KEY

- pump shaft

1шт.

3

A20529

O-RING,2.598" ID x 2.834" OD

"O" RING - pump to housing

1шт.

4

A25188

WASHER

LOCKWASHER - pump shaft

1шт.

5

A25189

NUT - pump shaft

1шт.

6

A25190

SPRING

- pump lube fitting

1шт.

7

A22381

WASHER

- pump lube fitting

2шт.

8

A25191

FITTING

- banjo, pump lube

1шт.

9

A25192

BANJO BOLT

SCREW - pump lube fitting

1шт.

10

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

11

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

12

195-24

WASHER,5/16"

- 13/32" SAE plain

4шт.

13

A20664

STUD - mtg., fuel pump

2шт.

14

A21139

GEAR

- drive, fuel pump

1шт.

15

A21136

HOUSING ASSY - shaft, w/bsgs.

1шт.

16

A21140

PLUG

- timing window

1шт.

17

O9892AB

STUD

GASKET - timing plug

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

19

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

SCREW - 3/8" x 1-1/4" N.C., hex. sckt. hd.

1шт.

20

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - pump shaft hsg

1шт.

21

O9745AB

X

WASHER - thrust, pump drive shaft

1шт.

22

O9726AB

X

SPRING - pump thrust plunger

1шт.

23

O9725AB

X

PLUNGER - thrust, fuel pump

1шт.

24

126-66

WOODRUFF KEY

KEY - pump drive shaft, Woodruff #141

1шт.

25

A20899

GEAR WHEEL

GEAR - drive fuel pump

1шт.

26

O9016AB

X

RING - snap, pump drive shaft

1шт.

27

O1579AB

STUD - drive housing

1шт.

28

A20622

GEAR

SHAFT - pinion drive, fuel pump

1шт.

29

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C., hex

2шт.

30

222-102

SLEEVE,1/4" Tube

60 FL 1/4" Tube

1шт.

31

87017024

TUBE NUT,1/2"-24

NUT - 1/4" - 61FL

1шт.

32

A21786

TUBE - fuel pump to cyl. block

1шт.

33

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 90 degrees - 69FL

1шт.

34

221-1052

PLUG

REDUCER -, Serial Range: 3/8"-1/8"

1шт.

37

A21133

FILTER

ASSY - first & second stage

1шт.

38

A20662

GASKET

- bleed screw, first and second stage filters

2шт.

39

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- filter bleed, first and second stage filters

2шт.

40

O10344AB

X

GASKET - filter head nut, first and second stage filters

2шт.

41

A21131

NUT

- filter head, first and second stage filters

2шт.

42

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, 1/8" sq. hd., first and second stage filters

3шт.

43

A21097

VALVE ASSY - by-pass, filter, first and second stage filters

1шт.

44

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , First and second stage filters 1/8" x 1", Slotted

1шт.

45

VT2983

X

"O" RING - by-pass valve, first and second stage filters

1шт.

46

A7627

FILTER, ELEMENT

ELEMENT KIT - filter, second stage, first and second stage filters

1шт.

47

O10345AB

X

GASKET - filter body, first and second stage filters

1шт.

48

A21132

BODY

- element, second stage, first and second stage filters

1шт.

49

A21129

BODY

- element, first stage, first and second stage filters

1шт.

50

A21141

FILTER, ELEMENT

ELEMENT KIT - filter, first stage, first and second stage filters

1шт.

51

O10345AB

X

GASKET - filter body, first and second stage filters

1шт.

52

A21077

FILTER HEAD

HEAD - filter, first & second stage, first and second stage filters

1шт.

53

A20637

LOCK VALVE

VALVE ASSY - relief, filter, first and second stage filters

1шт.

54

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 90 degrees 1/4" x 1/8", first and second stage filters

1шт.

55

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- 90 degrees - 5/16" x 1/4" P.T., first and second stage filters

2шт.

56

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- 90 degrees - 3/8" x 1/4" P.T., first and second stage filters

2шт.

57

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR - 5/16" x 1/4" P.T., first and second stage filters

1шт.

58

O1579AB

STUD - mtg. 1st & 2nd stage filter

2шт.

59

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex, first and second stage filters

2шт.
