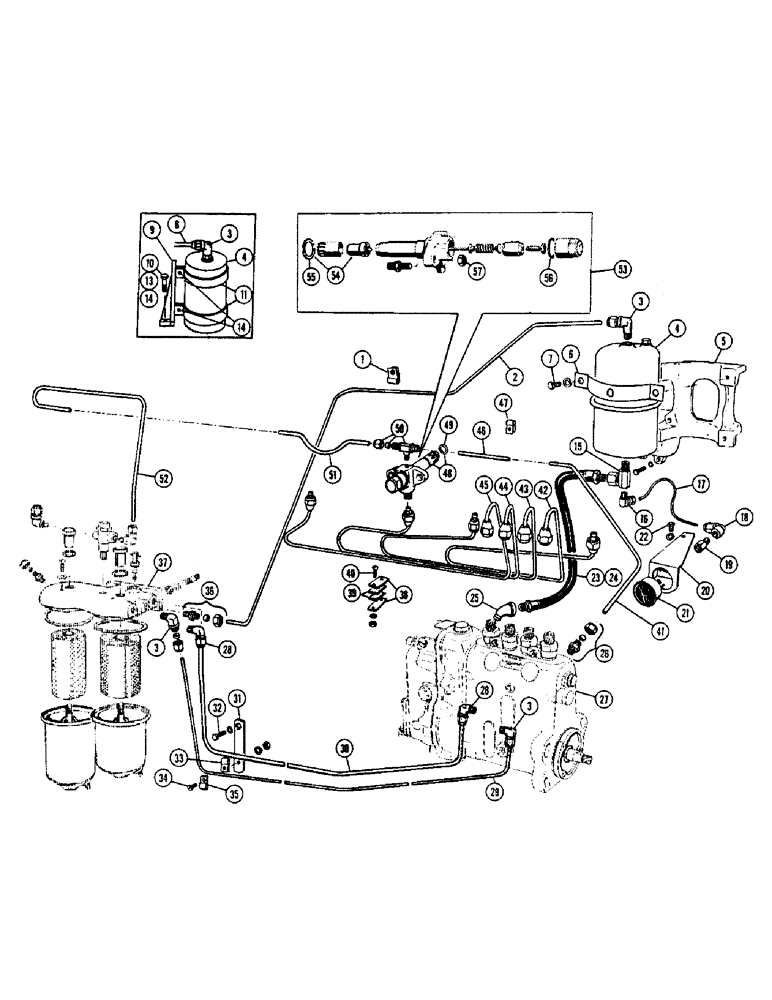

Запчасти Case W9A (008) - FUEL INJECTION SYSTEM, DIESEL, NOZZLE ASSEMBLY (03) - FUEL SYSTEM

1

A7922

CLIP

- final filter tube

1шт.

2

A22253

TUBE

- 2nd filter to final filter (Used late model)

1шт.

3

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- 5/16" tube x 1/4" P.T.

3шт.

4

O9985AB1

FILTER - fuel, final stage

1шт.

5

A22183

BRACKET - final filter (Used late models)

1шт.

6

A21144

CLAMP

- final stage filter (Used late model)

2шт.

7

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

8

A20657

TUBE - 2nd filter to final filter (Used early model)

1шт.

9

A20723

BRACKET - final stage filter (Used early model)

1шт.

10

14-732

CAPSCREW,Hex, 7/16" - 20 x 2", Gr 5

BOLT - 7/16" x 2" N.F., hex

2шт.

11

O9986AB

CLAMP - final filter (Used early model)

2шт.

12

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

14

75-424

SCREW

- mach., 1/4" x 1-1/2" N.C., rd. hd.

2шт.

15

A20539

FITTING

CONNECTOR - 1/4" x 90 degree, Serial Range: filter-hose

1шт.

16

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 1/8" tube x 1/8" P.T.

1шт.

17

A9364

TUBE

- fuel pressure gauge

1шт.

18

222-53

ELBOW,3/8"-24 x 1/8 NPTF

- 1/8" tube x 1/8" P.T., #70 FL

1шт.

19

O10381AB

SNUBBER - fuel pressure gauge

1шт.

20

A14498

X

SUPPORT - pressure gauge

1шт.

21

A11471

X

GAUGE ASSY - fuel pressure

1шт.

22

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

23

A21070

HOSE,9.53mm ID x 203.2mm L

- Final filter to pump (Late model) 0.38" ID x 8.00"

1шт.

24

A20538

FUEL HOSE,0.38" ID x 8.50"

Final filter to pump (Early model) 0.38" ID x 8.50"

1шт.

25

217-16

ELBOW,45 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 45 degree street, brass

1шт.

26

O10604AB

X

CONNECTOR ASSY - fuel pump leak-off

1шт.

27

A20448

PUMP ASSY - fuel, 2000 RPM (Repair Figure 10)

1шт.

28

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- 3/8" tube x 1/4" P.T.

2шт.

29

A20651

TUBE

- pump to 2nd stage filter

1шт.

30

A20650

TUBE

- pump to first stage filter

1шт.

31

A20656

BRACKET - first & 2nd stage filter tube

1шт.

32

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

33

A20688

CLIP

- first stage filter tube

1шт.

34

75-412

SCREW,Rd, 1/4" x 3/4"

- mach, 1/4" x 3/4" N.C., rd. hd.

1шт.

35

O9649AB

CLIP, second stage filter tube

1шт.

36

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR - 5/16" tube x 1/4" P.T.

1шт.

37

A21133

FILTER

ASSY - fuel, 1st. & 2nd. stage (Repair Figure 10)

1шт.

38

O10318AB

X

CLAMP - injector tube (4 tubes)

2шт.

39

O10319AB

X

CUSHION - injector tube clamp

2шт.

40

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- mach., #10 rd. hd.

2шт.

41

A22186

TUBE

- fuel pump leak-off

1шт.

42

A20501

TUBE

ASSY - injector, fuel (#1 cyl.)

1шт.

43

A20502

TUBE

ASSY - injector, fuel (#2 cyl.)

1шт.

44

A20503

TUBE

ASSY - injector, fuel (#3 cyl.)

1шт.

45

A20504

TUBE

ASSY - injector, fuel (#4 cyl.)

1шт.

46

A20162

TUBE

- injector leak-off (Between 2 & 3 inj.)

1шт.

47

A20541

CLIP

- leak off tube

1шт.

48

A8013

NOZZLE INJECTION

NOZZLE & HOLDER ASSY - injector, fuel

4шт.

49

O9847AB

X

GASKET - injector nozzle

4шт.

50

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

- 1/4" tube x 1/8" P.T.

4шт.

51

O9978AB

X

TUBE - injector leak-off (Between 1 & 2, 3 & 4 inj.)

2шт.

52

A20638

TUBE - leak-off, #4 nozzle to filter valve

1шт.

53

A8013

NOZZLE INJECTION

NOZZLE ASSY - injector, fuel

4шт.

54

O9845AB

X

NOZZLE - injector, fuel, nozzle assembly

4шт.

55

O9847AB

X

GASKET - injector nozzle, nozzle assembly

1шт.

56

O10618AB

X

GASKET - injector cap, nozzle assembly

1шт.

57

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex, nozzle assembly

8шт.
