Запчасти Case W9A (050) - OIL PUMP, USED WITH ENGINE LESS BALANCER, OIL PAN (02) - ENGINE

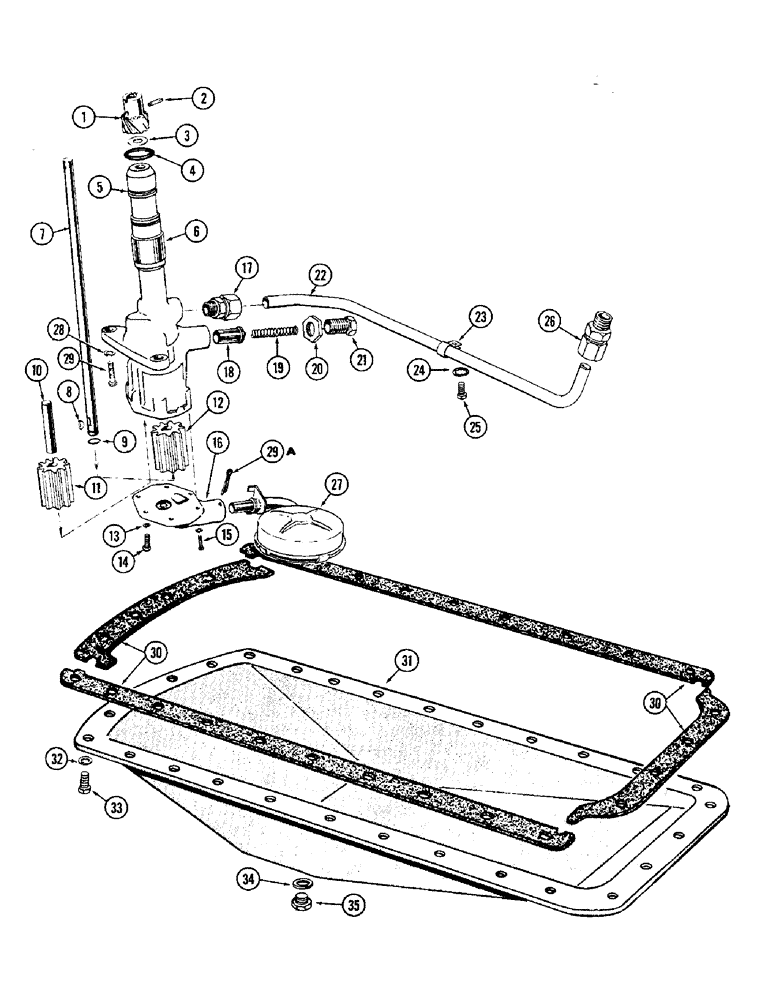

Схема запчастей Case W9A - (050) - OIL PUMP, USED WITH ENGINE LESS BALANCER, OIL PAN (02) - ENGINE

Артикул

Название

Примечание

Количество

A33443

PUMP

ASSY - engine lube oil

1шт.

1

6453A

X

GEAR - drive, oil pump

1шт.

2

135-133

GROOVED PIN,3/16" x 1", Type A, Hardened

PIN, GROOVED, 3/16" x 1", Type A, Hardened

1шт.

3

O9732AB

X

WASHER - thrust, drive gear

1шт.

4

O8380AB

X

"O" RING - pump body

1шт.

5

A21094

BODY

ASSY - oil pump

1шт.

6

A21079

SLEEVE

- pump body

1шт.

7

A21102

SHAFT

- drive, oil pump

1шт.

8

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

1шт.

9

A10916

RING, SNAP

RING - retainer, pump shaft

1шт.

10

O9729AB

SHAFT - stub, pump gear

1шт.

11

O9731AB

X

GEAR - oil pump

1шт.

12

O9730AB

X

GEAR - oil pump, w/keyway

1шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

14

75-412

SCREW,Rd, 1/4" x 3/4"

- mach., 1/4" x 3/4" N.C., rd. hd.

5шт.

15

75-424

SCREW

- mach., 1/4" x 1/2" N.C., rd. hd.

1шт.

16

A33442

COVER - oil pump

1шт.

17

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR - 5/8" tube x 1/2" P.T.

1шт.

18

A22566

PLUNGER

- relief, pump

1шт.

19

A23598

VALVE SPRING

SPRING - relief plunger

1шт.

20

O9735AB

NUT - adj. relief plunger screw

1шт.

21

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adj. pump relief

1шт.

22

A21098

TUBE

- oil, Serial Range: pump-filter

1шт.

23

A10852

CLIP - pump tube

1шт.

24

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

25

A10072

BOLT,3/8" - 16 x 3/4"

- tube clip

1шт.

26

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

CONNECTOR - 5/8" tube x 1/2" P.T.

1шт.

27

O10710AB

SCREEN - oil pump, Float type

1шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

29a

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

30

A7616

GASKET KIT

GASKET SET - oil pan

1шт.

31

A23000

CASE

PAN - oil, engine

1шт.

32

92-6

LOCK WASHER,3/8"

oil pan 3/8"

26шт.

33

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 7/8", G5, Full Thd

26шт.

34

O9844AB

X

GASKET - drain plug, oil pan

1шт.

35

A14280

PLUG

- drain, oil pan

1шт.

Выбрано товаров: 37
