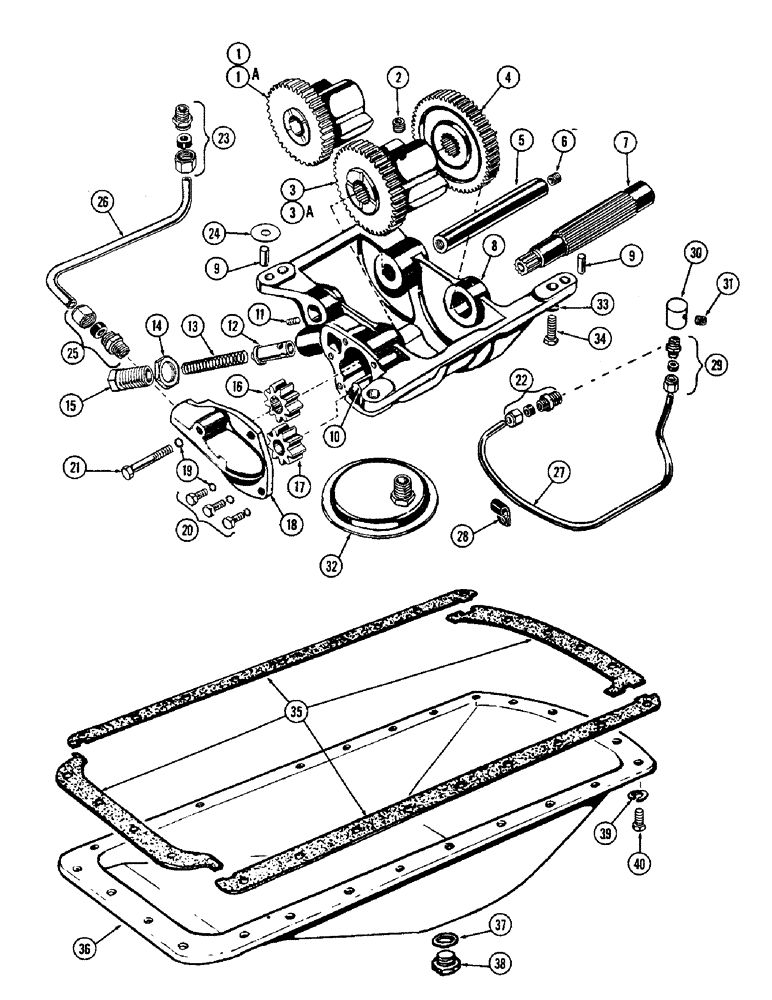

Запчасти Case W9A (048) - BALANCER OIL PUMP, OIL PAN (02) - ENGINE

A22540

BALANCER

& PUMP ASSY - oil, diesel eng.

1шт.

A22827

BALANCER & PUMP ASSY - oil, gasoline eng.

1шт.

1

A22546

FILTER ASSY

COUNTERWEIGHT ASSY - balancer, w/bsg. (Driven) (Diesel engine)

1шт.

1a

A22824

COUNTERWEIGHT ASSY - balancer, w/bsg. (Driven) (Gasoline engine)

1шт.

2

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8" x 3/8" N.C. cup pt., hex sckt. hd.

1шт.

3

A22561

COUNTERWEIGHT ASSY - balancer, drv. (Splined) (Diesel engine)

1шт.

3a

A22826

COUNTERWEIGHT - balancer drv. (Splined) (Gasoline Engine)

1шт.

4

A22562

X

GEAR - drive shaft

1шт.

5

A22563

SHAFT

ASSY - balancer driven

1шт.

6

221-841

PLUG

- pipe, 1/4" hex. sckt. hd.

1шт.

7

A22558

SHAFT

ASSY - balancer drive

1шт.

8

A22541

HOUSING ASSY - balancer & oil pump

1шт.

9

A8134

PIN

- dowel, locating

2шт.

10

A22543

SHAFT

- stub, balancer & pump

1шт.

11

178-40

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set 5/16" x 3/8" N.C., cone pt., hex sckt. hd.

1шт.

12

A22566

PLUNGER

- relief

1шт.

13

A23598

VALVE SPRING

SPRING - plunger

1шт.

14

O9735AB

NUT - ajusting screw

1шт.

15

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adj., releif

1шт.

16

A22564

GEAR

- pump drive (Splined)

1шт.

17

A22555

GEAR

- pump driven, w/bsg.

1шт.

18

A22565

COVER ASSY

COVER - balancer pump

1шт.

19

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

5шт.

20

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

21

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

22

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR - 1/4" x 1/4" pt.

1шт.

23

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR - 5/8" x 1/2" pt.

1шт.

24

A22670

SHIM,.005" Thk

Hsg. to cyl. block .005" Thk

1шт.

24

A22671

SHIM,.010" Thk

Hsg. to cyl. block .010" Thk

1шт.

25

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR - 5/8" x 1/2"

1шт.

26

A22595

TUBE

-, Serial Range: pump-filter

1шт.

27

A22596

TUBE

- balancer shaft to oil gallery

1шт.

28

A20541

CLIP

- balancer oil tube

1шт.

29

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

CONNECTOR - 1/4" x 1/8" pt.

1шт.

30

A22592

PLUG

- oil gallery

1шт.

31

A22593

SET SCREW,1/4" - 18 x 7/8"

- set, plug retainer

1шт.

32

A22590

FILTER SCREEN

SCREEN - oil, balancer pump

1шт.

33

92-8

LOCK WASHER,1/2"

4шт.

34

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

35

A7616

GASKET KIT

GASKET SET - oil pan

1шт.

36

A23000

CASE

PAN - oil

1шт.

37

O9844AB

X

GASKET - drain plug, oil pan

1шт.

38

A14280

PLUG

- drain, oil pan.

1шт.

39

92-6

LOCK WASHER,3/8"

oil pan 3/8"

26шт.

40

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 7/8", G5, Full Thd

26шт.
