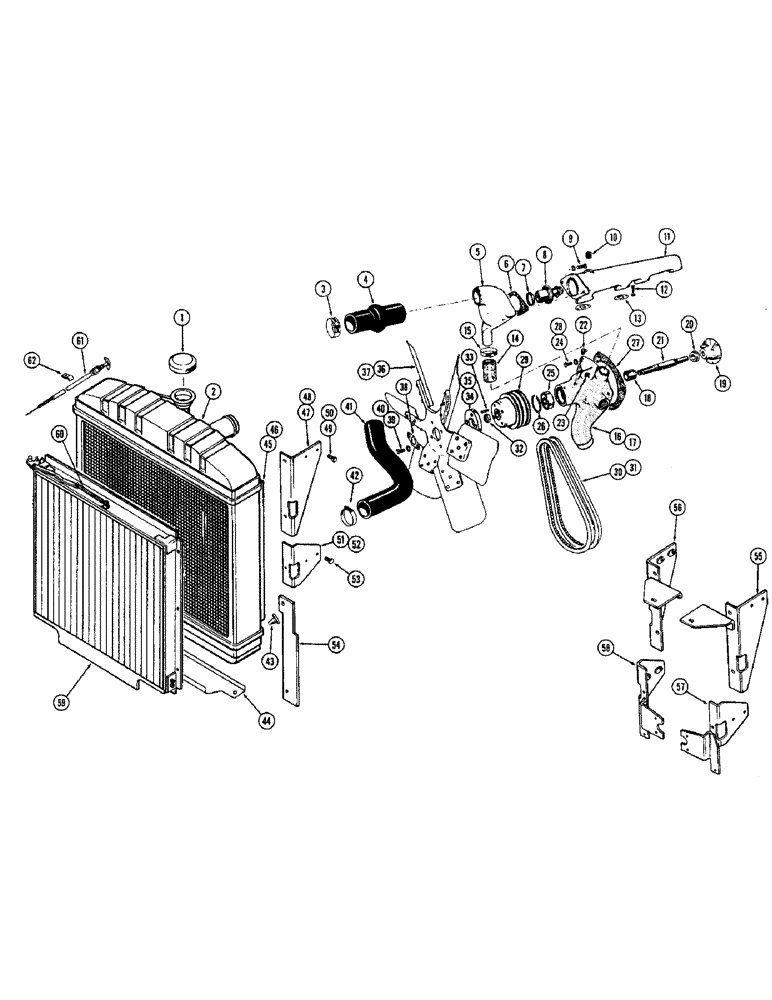

Запчасти Case W9A (046) - ENGINE COOLING SYSTEM (02) - ENGINE

1

A10259

CAP

- pressure, radiator (4 lbs.)

1шт.

2

A15609

RADIATOR

ASSY - engine, w/oil cooler

1шт.

3

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, radiator

2шт.

4

A19496

HOSE

- inlet, radiator, upper

1шт.

5

A20374

HOUSING

- thermostat

1шт.

6

O10715AB

X

GASKET - hsg., thermostat

1шт.

7

O10717AB

X

SEAL - thermostat

1шт.

8

O10716AB

X

THERMOSTAT - water, 187 degrees to 202 degrees

1шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C.. hex

2шт.

10

221-13

PLUG,Sq Hd, 3/8"-18

- pipe, 3/8" sq. hd.

1шт.

11

6460A

MANIFOLD - water

1шт.

12

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

8шт.

13

O9804AB1

X

GASKET - water manifold

4шт.

14

O10720AB

X

HOSE - by-pass, water

1шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, by-pass

2шт.

16

A21459

PUMP

ASSY - water

1шт.

17

A11496

BODY

ASSY - water pump

1шт.

18

O9798AB

X

BUSHING - water pump

1шт.

19

6464A

X

IMPELLER - water pump

1шт.

20

A24995

SEAL

- water pump

1шт.

21

A23636

SHAFT

- pump and fan

1шт.

22

219-54

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - lube, 67-1/2 degree x 1/8" dr.

1шт.

23

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, 3/8" hex. sckt. hd.

1шт.

24

A7391

STUD

- generator strap

1шт.

25

O7086AB

X

BEARING - pump and fan shaft

1шт.

26

O7084AB

X

RETAINER - bearing

1шт.

27

O9797AB

GASKET

- water pump

1шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

29

A21454

PULLEY - fan

1шт.

30

A22608

SET OF BELTS,52.00" L

SET OF 2 BELTS , Fan & generator (Used w/std. gen.) 52.00" L

1шт.

31

A18426

SET OF BELTS,53.00" L

SET OF 2 BELTS , Fan & gen. (Used w/alternator) 53.00" L

1шт.

32

A15488

NUT - fan, Serial Range: pulley-shaft

1шт.

33

A21075

KEY

- pump and fan shaft

1шт.

34

A15505

SPACER - fan (Use w/suction type)

1шт.

35

A15608

SPACER - fan (Used w/pusher type)

1шт.

REF#35 COULD USE PART A15505 AND HAVE IT MACHINED TO THE A15608 SPEC. 11/8/96

1шт.

36

A15519

FAN

- radiator (Suction type)

1шт.

37

A15504

FAN

- radiator (Pusher type)

1шт.

38

O3155AB

X

LOCK - water pump shaft nut

1шт.

39

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Use w/Ref. 34 & 36) Hex, 3/8"-16 x 2", G5

4шт.

40

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Use w/ref. 35 & 37) Hex, 3/8"-16 x 1 3/4", G5

4шт.

41

A15610

HOSE ASSY.

HOSE - rad. to water pump, lower

1шт.

42

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

lower radiator #36, 1.81/2.75 Type F Worm

2шт.

43

O9739AB

X

VALVE - drain, radiator

1шт.

44

A15491

BAFFLE - radiator, lower

1шт.

45

A22944

SHROUD - radiator fan

1шт.

46

187-1004

SELF-TAP SCREW,Cross Flat Hd, #8 x 3/8"

SCREW - #8-32 x 3/8" ft. hd. Phillips

8шт.

47

A15936

BRACKET - radiator, upper R.H.

1шт.

48

A15937

BRACKET

- radiator, upper L.H.

1шт.

49

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

8шт.

50

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F., hex

4шт.

51

A15930

BRACKET - radiator, lower R.H.

1шт.

52

A15931

BRACKET - radiator, lower L.H.

1шт.

53

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

54

A15933

SUPPORT - lower baffle

2шт.

55

A15496

BRACKET - rad. to rear lamp, upper R.H.

1шт.

56

A15497

BRACKET - rad. & rear lamp, upper L.H.

1шт.

57

A15502

BRACKET - rad. & tail lamp, lower R.H.

1шт.

58

A15503

BRACKET - rad. & tail lamp, lower L.H.

1шт.

59

A15939

SHUTTER ASSY - rad. (Mtd. w/ref. 47 thru 52)

1шт.

60

A9909

SPRING - shutter lever

1шт.

61

A12526

CONTROL ASSY - shutter

1шт.

62

O2825AB

X

CLIP - shutter control

1шт.
