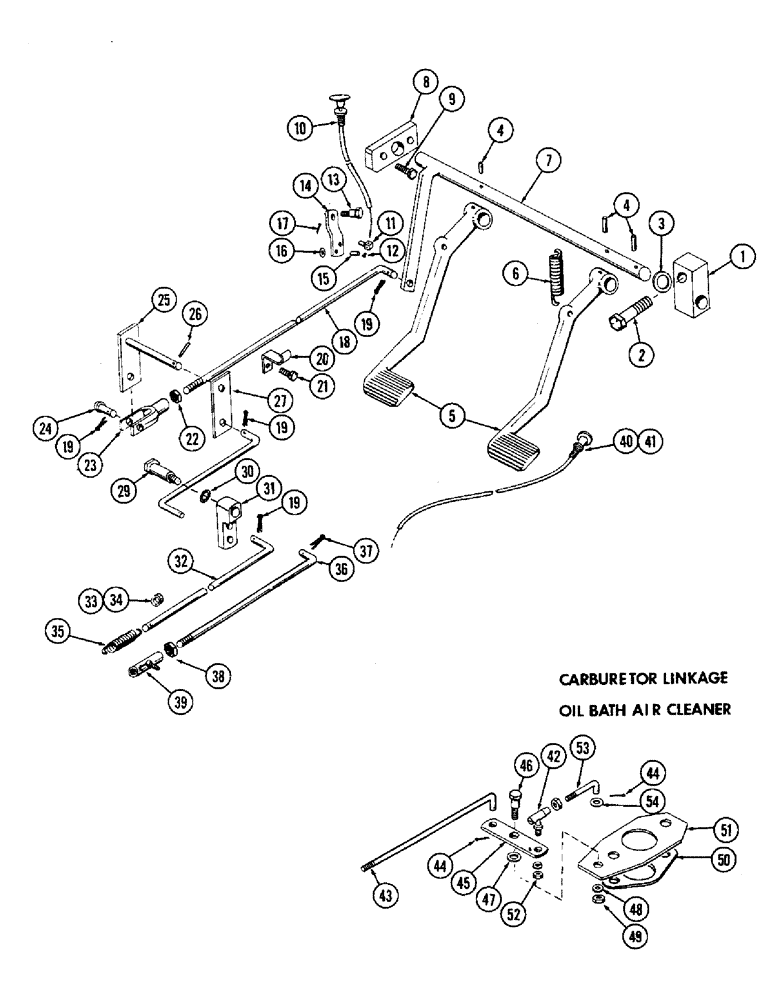

Запчасти Case W9A (044) - FOOT THROTTLE CONTROL, GASOLINE, CARBURETOR LINKAGE - OIL (02) - ENGINE

1

A12409

SUPPORT - cross shaft

1шт.

2

16-832

BOLT - 1/2" x 2" N.F., hex

1шт.

3

95-41

WASHER - flat, 5/8" SAE

1шт.

4

135-133

GROOVED PIN,3/16" x 1", Type A, Hardened

PIN, GROOVED, 3/16" x 1", Type A, Hardened

3шт.

5

A12405

PEDAL - foot throttle

2шт.

6

O9276AB

X

SPRING - pedal return

1шт.

7

A12408

SHAFT ASSY - cross

1шт.

8

A12410

BEARING - end, cross shaft

1шт.

9

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

2шт.

10

A12427

CONTROL BLOCK

CONTROL ASSY - fuel shut-off

1шт.

11

A8281

PIN - swivel, throttle shut-off

1шт.

12

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- mach., #8 x 1/4" N.F., rd. hd.

1шт.

13

A8018

STEP BOLT

STUD - pivot, shut-off lever

1шт.

14

A12421

LEVER

- fuel shut-off lever

1шт.

15

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.

16

O1752AB

X

WASHER - swivel pin

1шт.

17

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

1шт.

18

A15206

ROD - throttle, front

1шт.

19

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

5шт.

20

A15204

GUIDE - throttle rod

1шт.

21

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex

1шт.

22

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam, 5/16" N.F., hex

1шт.

23

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adj., 5/16"

1шт.

24

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke end 5/16" x .940"

1шт.

25

A14893

SHAFT ASSY - cross, throttle control

1шт.

26

135-332

GROOVED PIN,5/32" x 3/4", Type F

Pin, Grooved, 5/32" x 3/4", Type F

1шт.

27

A15211

LEVER - cross shaft, inner

1шт.

28

A15210

ROD - throttle control rod

1шт.

29

A15213

BOLT - dowel, pivot lever

1шт.

30

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

31

A15212

LEVER - pivot, throttle rod

1шт.

32

A15209

ROD - throttle control, rear

1шт.

33

A20846

COLLAR

- stop, throttle rod

1шт.

34

84-44

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - set, 1/4" x 1/4" N.F., socket cup

1шт.

35

A20868

SPRING

- governor

1шт.

REF#35 EARLY CATALOG SHOWS A20840 11/8/96

1шт.

36

A21775

ROD

- governor, Serial Range: lever-carb.

1шт.

37

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

38

129-27

NUT,Hex, #10 - 32

- #10 N.F., hex.

1шт.

39

A10326

BALL JOINT

JOINT ASSY - ball, carb. rod

1шт.

40

A9323

CONTROL ASSY - choke, carb (W/dry air cleaner)

1шт.

41

O4803AB

CONTROL ASSY - choke, carb (W/oil bath air cleaner)

1шт.

42

A10326

BALL JOINT

JOINT ASSY - ball, carb. rod, carburetor linkage - oil bath air cleaner

2шт.

43

A16509

ROD - gov. lever to carb. lever, carburetor linkage - oil bath air cleaner

1шт.

44

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , Carburetor linkage - oil bath air cleaner 1/16" x 1/2"

2шт.

45

A16507

LEVER - auxiliary, carburetor, carburetor linkage - oil bath air cleaner

1шт.

46

A8018

STEP BOLT

BOLT - dowel, aux. lever to support, carburetor linkage - oil bath air cleaner

1шт.

47

O5883AB

WASHER - lever bolt, carburetor linkage - oil bath air cleaner

1шт.

48

92-6

LOCK WASHER,3/8"

carburetor linkage - oil bath air cleaner 3/8"

1шт.

49

25-106

NUT,3/8"-16, G5

- 3/8" N.C.. hex, carburetor linkage - oil bath air cleaner

1шт.

50

O889AB1

X

GASKET - carburetor, carburetor linkage - oil bath air cleaner

1шт.

51

A16508

SUPPORT - auxiliary lever, carburetor linkage - oil bath air cleaner

1шт.

52

129-27

NUT,Hex, #10 - 32

- #10 N.F., hex, carburetor linkage - oil bath air cleaner

2шт.

53

A16506

CAP

ROD - link, carburetor, carburetor linkage - oil bath air cleaner

1шт.

54

195-12

WASHER,#10

- plain, 7/32" I.D. x 7/16" O.D., carburetor linkage - oil bath air cleaner

1шт.
