Запчасти Case W9A (034) - ENGINE REPAIR KITS, GASOLINE (02) - ENGINE

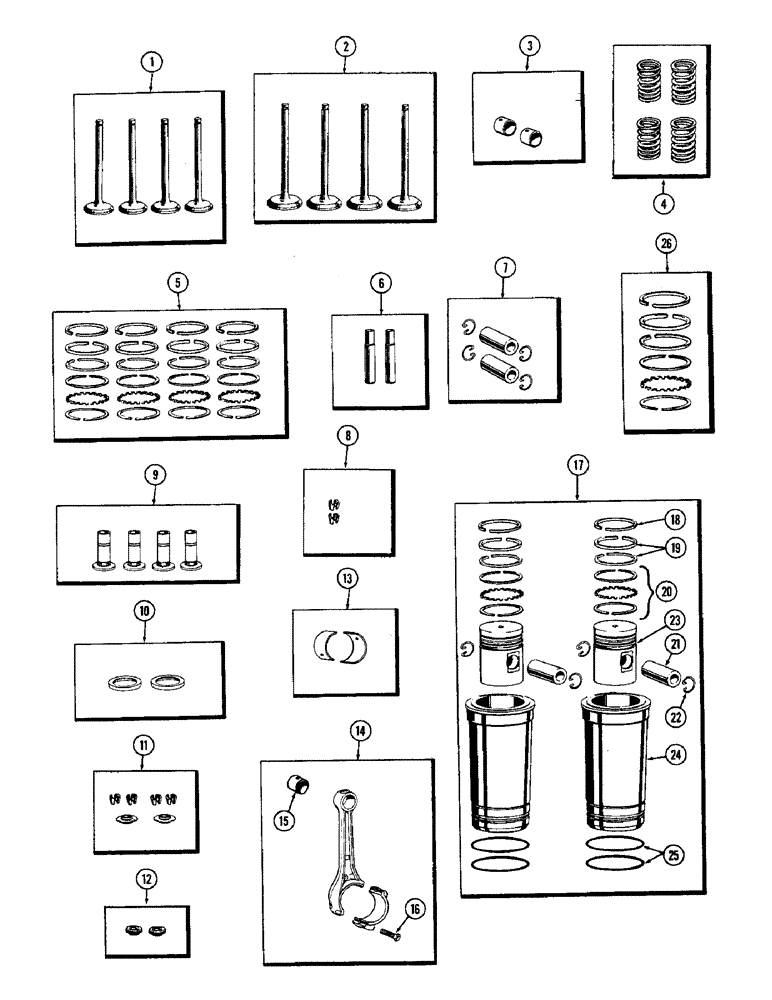

Схема запчастей Case W9A - (034) - ENGINE REPAIR KITS, GASOLINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A21715

KIT

VALVE KIT - exhaust (Set of 4)

1шт.

2

A21714

KIT

VALVE KIT - intake (Set of 4)

1шт.

3

A21721

BUSHING

KIT - piston pin (Set of 2)

4шт.

4

A21694

SPRING

KIT - int. & exh. valve (Set of 4)

2шт.

5

A21582

RING, SET

RING KIT - pistong (Re-ring, 4 pistons)

1шт.

6

A21672

KIT

GUIDE KIT - int. & exh. valve (Set of 2)

4шт.

7

A21724

KIT

PIN KIT - piston (Set of 2 pins & 4 retainers)

2шт.

8

A21656

RETAINER

LOCK KIT - int. & exh. valve (Set of 4)

4шт.

9

A21653

KIT

LIFTER KIT - push rod (Set of 4)

2шт.

10

A21682

KIT

INSERT KIT - exh. valve seat (Set of 2)

2шт.

11

A21657

LOCK

RETAINER KIT - int. valve (Set of 2 ret. & 4 locks)

2шт.

12

A24993

CAP

ROTOR CAP KIT - exh. valve (Set of 2)

2шт.

13

A20393

LINING

LINER SET - conn. rod brg. (Std. size)

4шт.

13

A20569

JOURNAL

LINER SET - conn. rod brg. (-.002")

4шт.

13

A20571

BEARING LINER

LINER SET - conn. rod brg. (-.010")

4шт.

13

A20573

KIT

LINER SET - conn. rod brg. (-.020")

4шт.

13

A20576

LINING

LINER SET - conn. rod brg. (-.030")

4шт.

14

4603AA

X

ROD ASSY - connecting

4шт.

15

NSS

NOT SOLD SEPARAT

BUSHING - rod (Order ref. #13)

1шт.

16

O9718AB

X

SCREW - cap, conn. rod. brg.

2шт.

17

A23667

SET

SLEEVE KIT - cylinder (Set of 2)

2шт.

18

NSS

NOT SOLD SEPARAT

RING - piston, top (Order A40367)

2шт.

19

NSS

NOT SOLD SEPARAT

RING - piston, 2nd & 3rd. (Order A40367)

4шт.

20

NSS

NOT SOLD SEPARAT

RING SET - piston, oil (Order A40367)

2шт.

21

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. #7)

2шт.

22

NSS

NOT SOLD SEPARAT

RING - retaining, piston pin (Order ref. #7)

4шт.

23

A20800

PISTON ASSY.

PISTON - cylinder

2шт.

24

A23659

PLUG,Cup, 1 5/8"

SLEEVE - cylinder

2шт.

25

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - cyl. sleeve

4шт.

26

A40367

PISTON RING SET

RING KIT - piston (Re-ring, single piston)

4шт.

Выбрано товаров: 30
