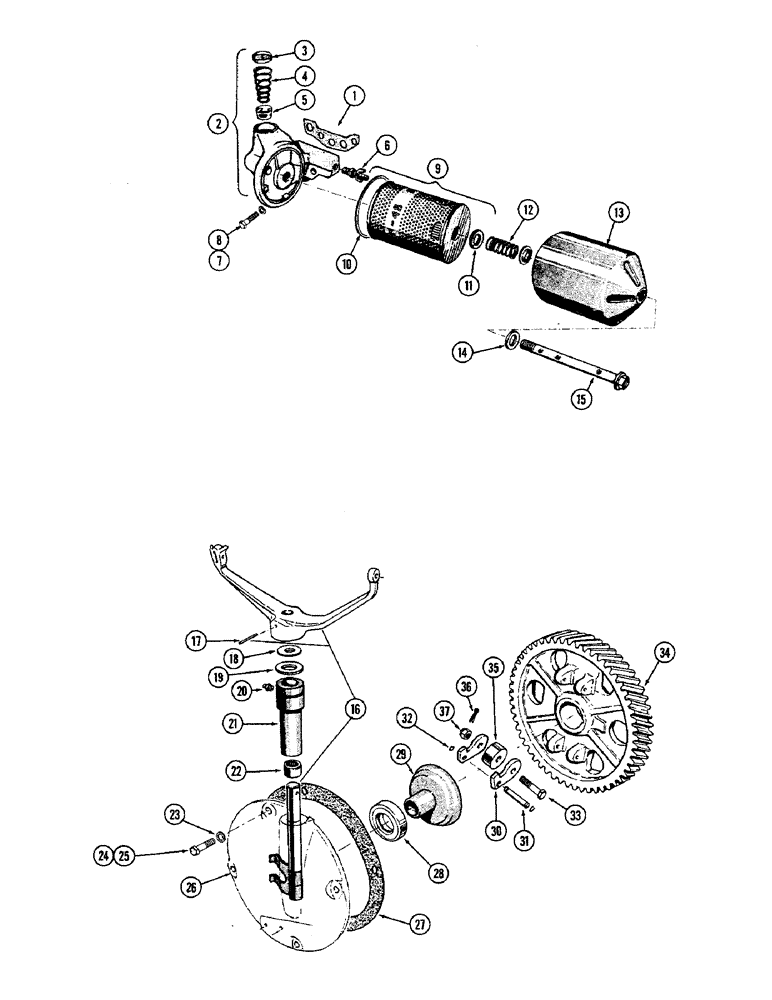

Запчасти Case W9A (032) - OIL FILTER, GASOLINE, GOVERNOR (02) - ENGINE

1

A21084

GASKET

- oil filter base

1шт.

2

A23469

BASE

ASSY - oil filter, engine

1шт.

3

41-1620

PLUG,Cup, 1 1/4", Stainless

- oil filter

1шт.

4

A21091

VALVE SPRING

SPRING - relief valve

1шт.

5

A21090

VALVE

- relief, filter

1шт.

6

A23656

COCK, DRAIN

VALVE - drain, oil filter

1шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

8

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C., hex.

1шт.

9

A21475

ENGINE OIL FILTER

ELEMENT KIT - oil filter

1шт.

10

A21473

GASKET

- filter shell

1шт.

11

A21474

GASKET

- retainer bolt, inner

1шт.

12

A21478

SPRING

- retainer, filter element

1шт.

13

A21471

SHELL

- oil filter

1шт.

14

A21479

GASKET

- retainer bolt, outer

1шт.

15

A21476

BOLT

- retainer, filter

1шт.

16

A20838

SHAFT

ASSY - governor

1шт.

17

138-101

LOCK PIN,3/16" x 1 5/8", Slotted

PIN, LOCK, , Governor 3/16" x 1 5/8", Slotted

1шт.

18

A7293

WASHER

- lever brg., gov., governor

1шт.

19

A7292

SEAL

- lever hub, gov., governor

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" str. Lincoln, governor

1шт.

21

A20835

SLEEVE - shaft brg., gov. lever, governor

1шт.

22

A7290

NEEDLE BEARING,Needle, 14.29mm ID x 19.05mm OD x 12.7mm W

BEARING - needle, gov. shaft, governor

2шт.

23

92-6

LOCK WASHER,3/8"

governor 3/8"

4шт.

24

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Governor Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

25

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Governor Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

26

A20833

CAP ASSY - timing gear cover, governor

1шт.

27

O9752AB

X

GASKET - timing gear cover cap, governor

1шт.

28

A7285

THRUST BEARING,1.0675" ID x 40574" OD x 5"

BEARING - thrust, governor

1шт.

29

A7284

SLEEVE - governor

1шт.

30

A33471

KIT

FINGER KIT - gov. weight (Set of 4), governor

1шт.

31

A7282

PIN,6.31mm OD x 47.63mm L

- finger, governor

2шт.

32

A71111

MANIFOLD GASKET

RING - retainer, finger pin, governor

4шт.

33

A17504

BOLT

- retaining, gov. weight & finger, governor

2шт.

34

6451A

X

GEAR - camshaft, governor

1шт.

35

A7277

WEIGHT

- governor

2шт.

36

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , Governor 1/16" x 1/2"

2шт.

37

25-235

SLOTTED NUT

NUT - castle, 5/16" N.C. hex., governor

2шт.
