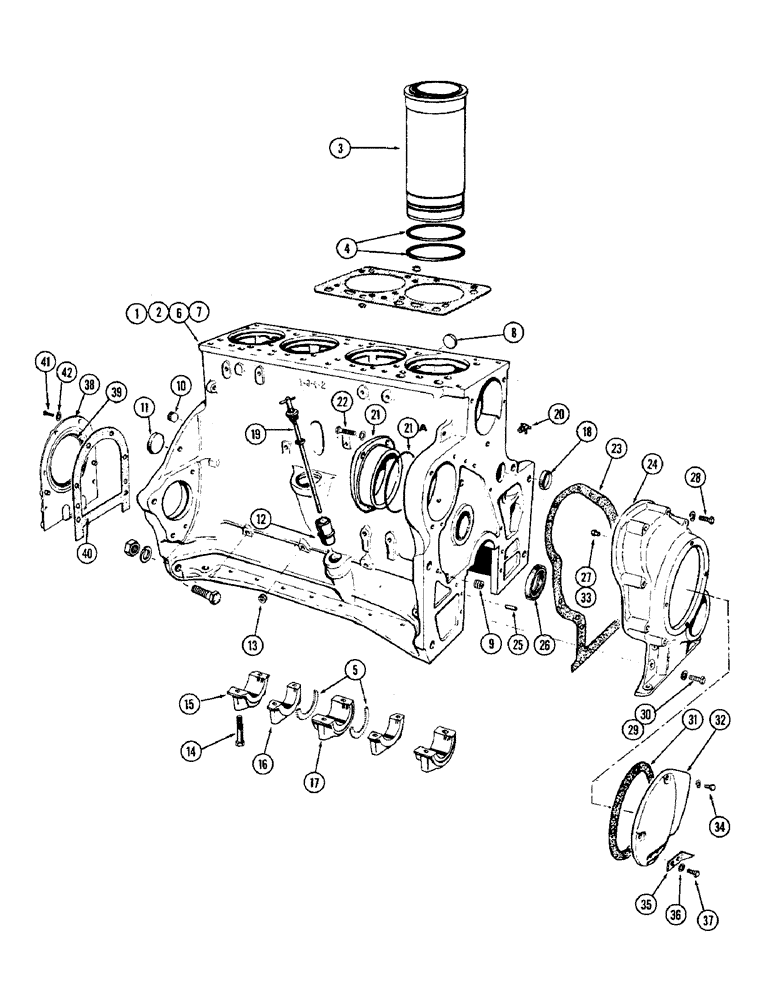

Запчасти Case W9A (028) - CYLINDER BLOCK ASSEMBLY, GASOLINE (02) - ENGINE

1

A23585

BLOCK ASSY - engine (Short) (Incl. stripped blk. pistons, sleeves rods, camshaft, crankshaft and rear retainer) (Used w/balancer)

1шт.

2

A22171

BLOCK ASSY - engine (Short) (Incl. stripped blk. pistons, sleeves conn. rods, crankshaft, camshaft & rear retainer) (Use w/o balancer)

1шт.

3

A23659

PLUG,Cup, 1 5/8"

SLEEVE - cyl., piston (See kit, Figure 34)

4шт.

4

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - cylinder sleeve

8шт.

5

O9705AB

X

WASHER - thrust, crankshaft

2шт.

6

A23510

X

BLOCK ASSY - engine (Stripped) (Incl. camshaft bsg., brg. caps, plugs & sckt.) (W/balancer)

1шт.

7

A20796

BLOCK

ASSY - engine (Stripper) (Incl. camshaft brg., caps, plugs, and oil gauge socket.) (Use w/o balancer)

1шт.

8

41-1622

PLUG,Cup, 1 3/8", Stainless

- cup, water gallery

1шт.

9

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, 3/8" hex. sckt. hd.

5шт.

10

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, 1" sq. socket hd

1шт.

11

A24361

PLUG

- cup, rear camshaft hole

1шт.

12

A20714

X

SOCKET - oil level gauge (Dipstick)

1шт.

13

221-41

PLUG

- pipe, 1/8" slotted hd.

2шт.

14

O9706AB

SCREW - cap, brg. cap

10шт.

15

6301A

CAP - crankshaft brg., wide

2шт.

16

A6302A

X

CAP - crankshaft brg., narrow

2шт.

17

6303A

CAP - crankshaft brg., thrust

1шт.

18

41-1628

PLUG,Cup, 1 3/4", Stainless

- cup, water gallery, front

1шт.

19

A20739

GAUGE

ASSY - oil level, (Dipstick)

1шт.

20

A23656

COCK, DRAIN

VALVE - drain, engine water

1шт.

21

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

COVER - magneto opening

1шт.

21a

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - cover, magneto opening

1шт.

22

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

23

O9750AB

X

GASKET - timing gear cover

1шт.

24

A20703

COVER ASSY - timing gear

1шт.

25

O9710AB

PIN - locating, timing gear

2шт.

26

A23433

OIL SEAL

- oil, front crankshaft

1шт.

27

O9754AB

BUTTON - thrust, timing gear

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

29

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8" x 2-3/4" N.C. hex.

1шт.

30

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8" x 2-1/2" N.C. hex.

7шт.

31

O9752AB

X

GASKET - cap, timing cover

1шт.

32

A20833

CAP ASSY - timing gear cover

1шт.

33

O9754AB

BUTTON - thrust, timing cover cap.

1шт.

34

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

35

O10853AB

POINTER - timing

1шт.

36

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

LOCKWASHER - 1/4" int. Shakeproof

2шт.

37

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

38

A32182

RETAINER

- rear oil seal, crankshaft

1шт.

38

A23085

OIL SEAL

- oil, crankshaft rear

1шт.

40

A32830

GASKET

- crankshaft retainer

1шт.

41

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

42

92-6

LOCK WASHER,3/8"

6шт.
