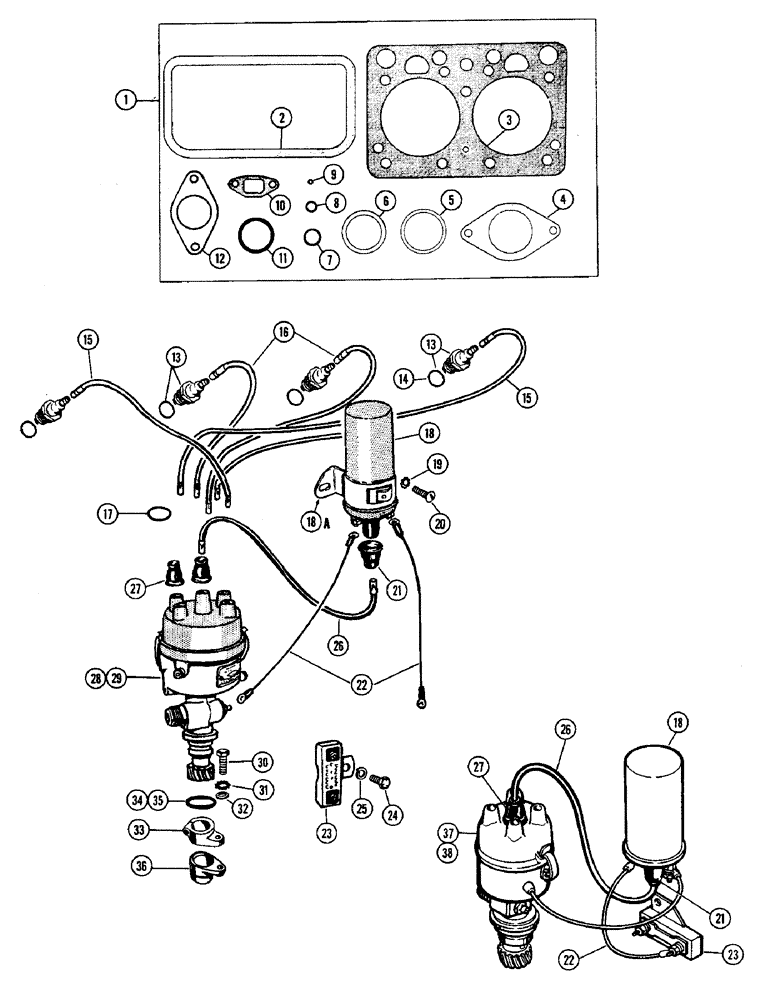

Запчасти Case W9A (026) - VALVE GRIND GASKET KIT, GASOLINE, IGNITION SYSTEM (02) - ENGINE

1

A41579

KIT

GASKET KIT - valve grind - engine

1шт.

2

O9959AB

X

GASKET - cyl. head cover

2шт.

3

A23117

GASKET

- cylinder head

2шт.

A57593

GASKET

1шт.

A34686

RING

1шт.

4

O10715AB

X

GASKET - thermostat hsg

1шт.

5

A11889

GASKET

- exhaust manifold

4шт.

6

O9814AB

X

GASKET - intake manifold

2шт.

7

A7669

RING

"O" RING - cyl. head gasket

4шт.

8

O9772AB

X

"O" RING - rocker arm shaft tube

2шт.

9

O8569AB

X

"O" RING - cyl. hd. oil passage

2шт.

10

O9804AB1

X

GASKET - water manifold

4шт.

11

O10717AB

X

GASKET - thermostat

1шт.

12

O889AB1

X

GASKET - carburetor

1шт.

13

G44840

SPARK PLUG

PLUG - spark, w/gasket (18 MM.), ignition system

4шт.

14

G46839

GASKET

- spark plug, ignition system

1шт.

15

A20143

ELECTRICAL WIRE

WIRE - spark plug (#1 & #4 cyl.), ignition system

2шт.

16

A20144

ELECTRICAL WIRE

WIRE - spark plug (#2 & #2 cyl.), ignition system

2шт.

17

A23258

RING - spark plug wire, ignition system

1шт.

18

G44817

COIL

- ignition, ignition system

1шт.

18a

G46106

BRACKET

- mtg., ignition coil, ignition system

1шт.

19

193-45

WASHER,Ext-Int Tooth, 5/16"

LOCKWASHER - 5/16" int. - ext. Shakeproof, ignition system

2шт.

20

75-510

HANDBOOK

SCREW - mach., 5/16" x 5/8" N.C., rd. hd., ignition system

2шт.

21

G46803

BOOT

NIPPLE - wire to coil, ignition system

1шт.

22

O10224AB

WIRE - coil to dist. and resistor, ignition system

2шт.

23

A24504

RESISTOR

- ballast, ignition system

1шт.

24

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Ignition system Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

25

92-5

LOCK WASHER,5/16"

ignition system 5/16"

1шт.

26

VT2876

X

WIRE - coil to distributor, ignition system

1шт.

27

VT3561

X

NIPPLE - distr. and coil wire, ignition system

5шт.

28

A20910

X

DISTRIBUTOR ASSY - ign. (Used on engine w/o balancer (Repair list Figure 38) (W/cplg. drive), ignition system

1шт.

29

A22846

X

DISTRIBUTOR ASSY - ign., w/tach. drv. (Used on engine w/balancer) (Repair, Figure 38) (W/gear drive), ignition system

1шт.

30

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Ignition system Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

31

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

LOCKWASHER - 3/8" int. Shakeproof, ignition system

1шт.

32

95-6

WASHER,3/8"

- plain, , ignition system 3/8"

1шт.

33

A7622

CLAMP - distributor, ignition system

1шт.

34

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - mtg., distributor (Use w/ref. #28), ignition system

1шт.

35

O8346AB

X

"O" RING - dist. (Use w/ref. #29 & 37), ignition system

1шт.

36

A7621

INSERT - support, distributor, ignition system

1шт.

37

A24508

DISTRIBUTOR

ASSY - ign. (Used on engine with balancer) (Repair list, Figure 36) (W/gear drive), ignition system

1шт.

38

A24506

DISTRIBUTOR

ASSY - ign. (Used on engine w/o balancer) (Repair, Figure 37A) (W/cplg. drive), ignition system

1шт.

A40349

KIT

ENGINE GASKET, ignition system

1шт.

A34688

RING

oversize fire, ignition system

1шт.
