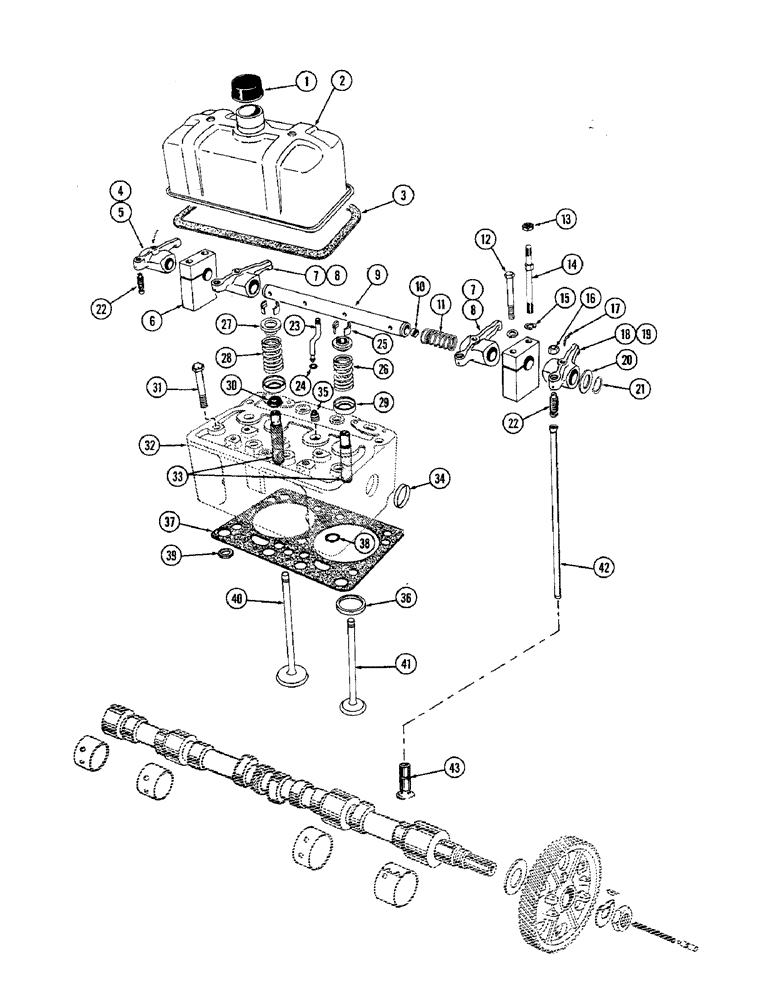

Запчасти Case W9A (024) - CYLINDER HEAD AND VALVE ASSEMBLY, GASOLINE (02) - ENGINE

1

O9960AB

X

BREATHER ASSY - cyl. head cover

2шт.

2

A20345

COVER ASSY - cyl. head

2шт.

3

O9959AB

X

GASKET - cylinder head cover

2шт.

4

4609AA

ARM ASSY - exh. valve rocker (#2 &4 cyl.)

2шт.

5

O9767AB

X

BUSHING - rocker arm

1шт.

6

O9773AB

BRACKET - rocker arm shaft

4шт.

7

4607AA

X

ARM ASSY - rocker, intake valve

4шт.

8

O9767AB

X

BUSHING - rocker arm

1шт.

9

A23671

X

SHAFT ASSY - rocker arm

2шт.

10

A22318

PLUG - rocker arm shaft

2шт.

11

O9769AB

X

SPRING - rocker arm shaft

2шт.

12

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

4шт.

13

25-117

NUT,7/16"-20, G5

- 7/16" N.F., hex

4шт.

14

O10732AB

STUD - bracket and cover

4шт.

15

92-7

LOCK WASHER,7/16"

8шт.

16

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F., hex

8шт.

17

O9882AB

X

WICK - rocker arm, exhaust

4шт.

18

4608AA

ARM ASSY - rocker, exh. valve (#1 & 3 cyl.)

2шт.

19

O9767AB

X

BUSHING - rocker arm

1шт.

20

O9770AB

X

WASHER - rocker arm shaft

12шт.

21

O3658CH

X

RING - retaining, rocker arm shaft

4шт.

22

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adj. push rod

8шт.

23

O9771AB

X

TUBE - oil, rocker arm shaft

2шт.

24

O9772AB

X

"O" RING - oil tube

2шт.

25

NSS

NOT SOLD SEPARAT

LOCK - valve spring (Order A21656, Figure 34)

8шт.

26

NSS

NOT SOLD SEPARAT

ROTOR - CAP - exh. valve (Order A23174, Figure 34)

4шт.

27

NSS

NOT SOLD SEPARAT

RETAINER - intake valve (Order A21657, Figure 34)

4шт.

28

NSS

NOT SOLD SEPARAT

SPRING - valve, intake & exh. (Order A21694, Figure 34)

8шт.

29

O9751AB

X

SEAT - valve spring

4шт.

30

A10726

SEAL

SHIELD - oil, intake valve (Rubber)

4шт.

31

A23355

BOLT

- cylinder head

18шт.

32

A20809

CYLINDER HEAD

HEAD ASSY - cylinder

2шт.

33

NSS

NOT SOLD SEPARAT

GUIDE - valve (Order A21673, Figure 34)

8шт.

34

A23653

X

PLUG - cup, cyl. head

2шт.

35

221-841

PLUG

- pipe, 1/4" hex. socket hd.

2шт.

36

NSS

NOT SOLD SEPARAT

INSERT - exh. valve (Order A21682, Figure 34)

2шт.

37

A23117

GASKET

- cylinder head

2шт.

38

O8569AB

X

"O" RING - cyl. head gasket

2шт.

39

A7669

RING

- cylinder hd. (Rubber)

4шт.

40

NSS

NOT SOLD SEPARAT

VALVE - intake (Order A21714, Figure 34)

4шт.

41

NSS

NOT SOLD SEPARAT

VALVE - exh. (Order A21715, Figure 34)

4шт.

42

A21060

ROD

- push, valve

8шт.

43

NSS

NOT SOLD SEPARAT

LIFTER - valve, int. & exh. (Order A21653, Figure 34)

8шт.
