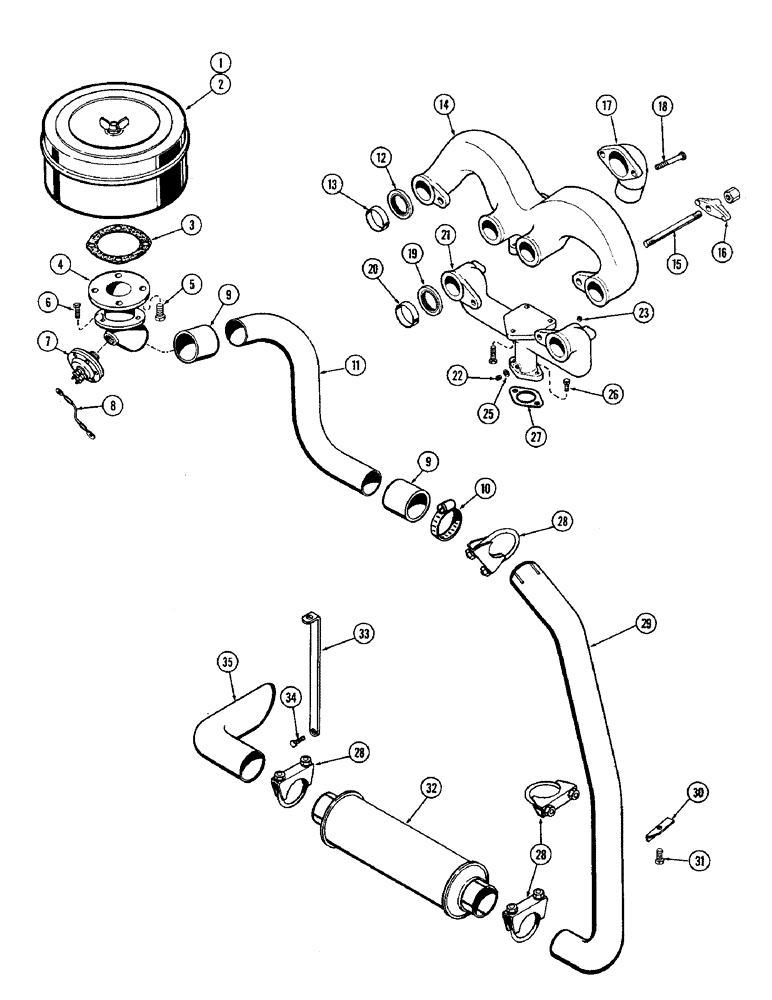

Запчасти Case W9A (022) - DRY AIR CLEANER SYSTEM, GASOLINE, MANIFOLDS, EXHAUST PIPE (02) - ENGINE

1

A14417

AIR CLEANER

CLEANER ASSY - air, 8" dry-type (Used on late model loader, repair Figure 52)

1шт.

2

A15169

CLEANER ASSY - air, 5" dry-type (Used on early model, repair Figure 52) (Order A14417)

1шт.

3

A15304

GASKET

-, Serial Range: filter-support

1шт.

4

A15170

SUPPORT - air cleaner

1шт.

5

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

6

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

3шт.

7

A14739

SWITCH ASSY - vacuum, air cleaner

1шт.

8

O5598AB

WIRE - vacuum, Serial Range: switch-ground

1шт.

9

A20197

HOSE ASSY.

HOSE - cleaner intake pipe

2шт.

10

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, #50

4шт.

11

A15171

TUBE - air cleaner

1шт.

12

A11889

GASKET

- exhaust manifold, manifolds

4шт.

13

A11837

FERRULE

- exhaust manifold, manifolds

4шт.

14

A20811

MANIFOLD - exhaust, manifolds

1шт.

15

O9817AB

X

STUD - mtg., int. & exh. manifold, manifolds

4шт.

16

A24368

CLAMP

- int. & ext. manifold, manifolds

4шт.

17

A21388

ELBOW - exhaust, manifolds

1шт.

18

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Manifolds Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

19

O9814AB

X

GASKET - intake manifold, manifolds

2шт.

20

A20814

BUSHING,39.69mm ID x 42.93mm OD x 12.7mm L

FERRULE - intake manifold, manifolds

2шт.

21

A18508

MANIFOLD

- intake, manifolds

1шт.

22

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, 1/8" P.T., square hd., manifolds

2шт.

23

211-13

BALL,1/2" Dia

PLUG - pipe, 3/8" P.T. square hd., manifolds

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Manifolds Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

25

A20778

GASKET - manifold boss bolt, manifolds

1шт.

26

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Manifolds Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

27

O889AB1

X

GASKET - carb. to manifold, manifolds

1шт.

28

A13240

CLAMP,2-5/8" ID

- exh. pipe and muffler

4шт.

29

A15167

PIPE - exhaust pipe and muffler

1шт.

30

A15165

BRACKET - support, exh. pipe clamp, exhaust pipe and muffler

1шт.

31

16-616

BOLT - 3/8" x 1" N.F., hex, exhaust pipe and muffler

1шт.

32

A15163

MUFFLER

- exhaust, exhaust pipe and muffler

1шт.

33

A15164

BRACKET - support, muffler, exhaust pipe and muffler

1шт.

34

16-616

BOLT - 3/8" x 1" N.F. hex, exhaust pipe and muffler

1шт.

35

A15162

ELBOW - exhaust, muffler, exhaust pipe and muffler

1шт.
