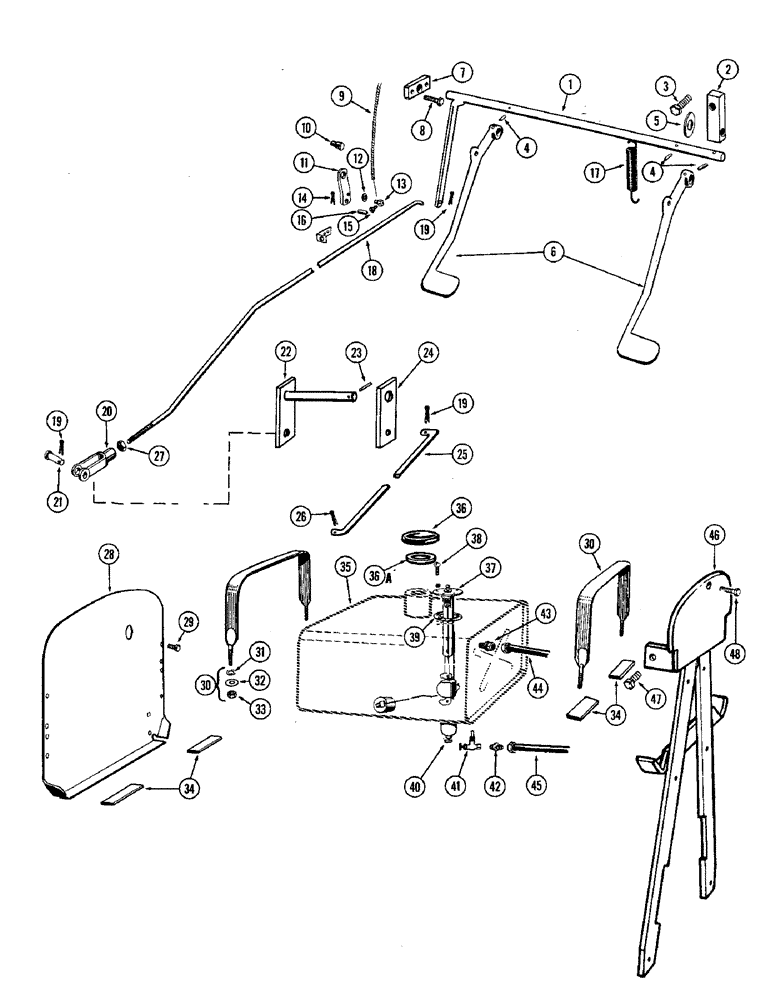

Запчасти Case W9A (020) - FOOT THROTTLE CONTROL, DIESEL, FUEL TANK SYSTEM (02) - ENGINE

1

A12408

SHAFT ASSY - cross, foot throttle

1шт.

2

A12409

SUPPORT - cross shaft, R.H.

1шт.

3

16-832

BOLT - 1/2" x 2" N.F., hex

1шт.

4

135-133

GROOVED PIN,3/16" x 1", Type A, Hardened

PIN, GROOVED, 3/16" x 1", Type A, Hardened

3шт.

5

195-41

WASHER,5/8"

1шт.

6

A12405

PEDAL - foot throttle

2шт.

7

A12410

BEARING - cross shaft, L.H.

1шт.

8

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

2шт.

9

A12427

CONTROL BLOCK

CONTROL ASSY - fuel shut-off (Flexible)

1шт.

10

A8018

STEP BOLT

STUD - fuel shut-off lever

1шт.

11

A12421

LEVER

- fuel shut-off

1шт.

12

O1752AB

X

WASHER - fuel shut-off swivel

1шт.

13

A8281

PIN - swivel, fuel shut-off

1шт.

14

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

2шт.

15

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- mach, #8 x 1/4" N.C., rd. hd.

1шт.

16

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.

17

O9276AB

X

SPRING - pedal return

1шт.

18

A15206

ROD - throttle, front

1шт.

19

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

20

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adj. clevis, 5/16"

1шт.

21

A7824

X

PIN - clevis, yoke end.

1шт.

22

A14893

SHAFT ASSY - throttle cross

1шт.

23

135-332

GROOVED PIN,5/32" x 3/4", Type F

Pin, Grooved, 5/32" x 3/4", Type F

1шт.

24

A14498

X

LEVER - throttle cross

1шт.

25

A15214

ROD - throttle, to fuel pump

1шт.

26

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

27

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam, 5/16" N.F., hex

1шт.

28

A15205

PLATE - mtg. fuel tank, system

1шт.

29

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F., hex, fuel tank system

6шт.

30

A12269

STRAP ASSY - hold down, fuel tank, system

2шт.

31

92-6

LOCK WASHER,3/8"

fuel tank system 3/8"

2шт.

32

195-25

WASHER,3/8"

- plain, 13/32" I.D. x 13/16" O.D., fuel tank system

2шт.

33

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex., fuel tank system

2шт.

34

A7390

PAD - fuel tank (Rubber), fuel tank system

4шт.

35

A15993

TANK ASSY - fuel, fuel tank system

1шт.

36

A33558

CAP

- fuel tank, system

1шт.

36a

A20619

GASKET

- fuel tank cap, fuel tank system

1шт.

37

A17219

UNIT

ASSY - fuel sending (12V), fuel tank system

1шт.

38

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- mach., #10 x 7/16" N.F., rd. hd., fuel tank system

5шт.

39

A11822

GASKET

- sending unit to tank, fuel tank system

1шт.

40

217-102

PLUG, DRAIN

VALVE - drain, #32 x 1/8", fuel tank system

1шт.

41

O9934AB

X

VALVE ASSY - needle, fuel tank system

1шт.

42

217-2

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

- extension, 1/4" x 1/4", fuel tank system

1шт.

43

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR - 5/16" x 1/4" P.T., fuel tank system

1шт.

44

A14500

TUBE - relief valve to fuel tank, fuel tank system

1шт.

45

A15240

TUBE - fuel tank to filter hd., fuel tank system

1шт.

46

A12238

SUPPORT ASSY - fuel tank & side plate, frt., fuel tank system

1шт.

47

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

Fuel tank system Hex, 5/8"-18 x 1 3/4", G5

2шт.

48

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2" x 1-1/2" N.F. hex, fuel tank system

2шт.
