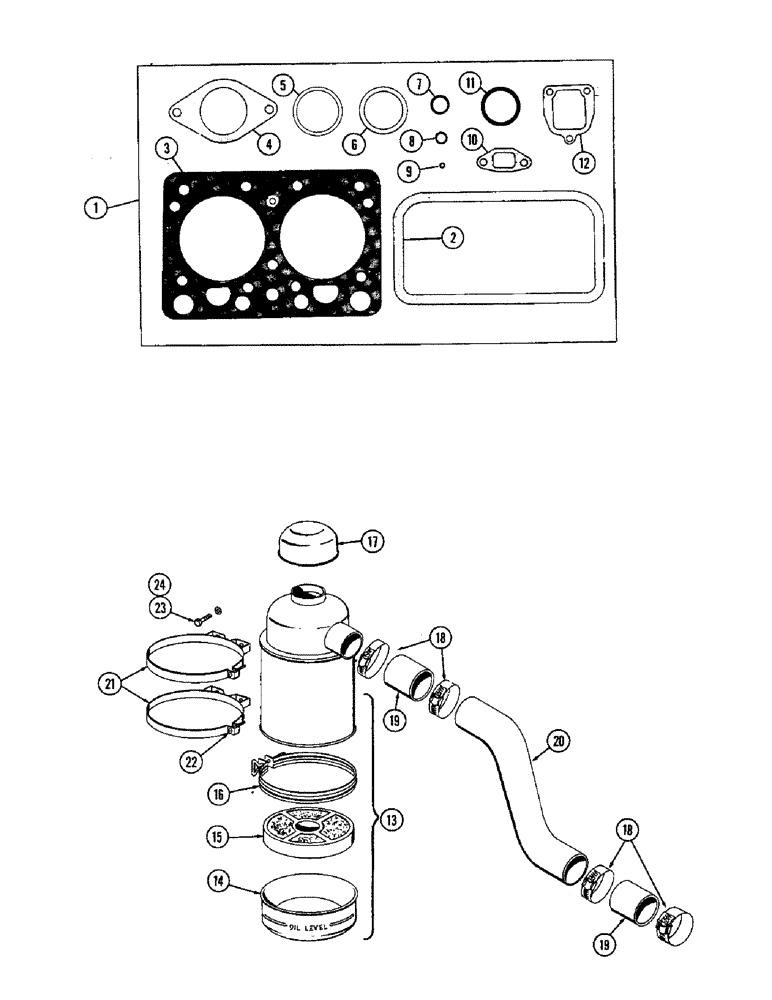

Запчасти Case W9A (018) - VALVE GRIND GASKET KIT, DIESEL, OIL BATH AIR CLEANER (02) - ENGINE

1

A41576

GASKET

KIT - engine valve grind

1шт.

2

O9959AB

X

GASKET - cylinder head cover

2шт.

3

A57593

GASKET

- cylinder head

2шт.

A34686

RING

1шт.

4

O10715AB

X

GASKET - thermostat hsg.

1шт.

5

A11888

MANIFOLD GASKET

- exhaust manifold

4шт.

6

A21054

MANIFOLD GASKET

- intake manifold

2шт.

7

A7669

RING

"O" RING - cylinder head gasket

4шт.

8

O9772AB

X

"O" RING - rocker shaft tube

2шт.

9

O8569AB

X

"O" RING - cyl. head oil passage

2шт.

10

O9804AB1

X

GASKET - water manifold

4шт.

11

O10717AB

X

GASKET - thermostat

1шт.

12

A22939

GASKET

- decompressor hsg.

2шт.

13

A21432

CLEANER

ASSY - air, 8", oil bath air cleaner

1шт.

14

A22193

CUP - oil, oil bath air cleaner

1шт.

15

A22194

ELEMENT

SCREEN - oil bath, air clener

1шт.

16

O10475AB

X

CLAMP ASSY - retaining, oil cup, oil bath air cleaner

1шт.

17

A21433

CAP

ASSY - pre-cleaner, oil bath air cleaner

1шт.

18

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, oil bath air cleaner

4шт.

19

A20197

HOSE ASSY.

HOSE - intake tube, oil bath air cleaner

2шт.

20

A16499

TUBE

- intake, air cleaner, oil bath air cleaner

1шт.

21

A16485

CLAMP

BAND ASSY - support, air cleaner, oil bath air cleaner

2шт.

22

75-424

SCREW

- mach., 1/4" x 1-1/2" N.C. rd. hd., oil bath air cleaner

1шт.

23

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Oil bath air cleaner Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

24

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Oil bath air cleaner Hex, 5/16"-18 x 1", G5, Full Thd

3шт.

A34688

RING

oversize fire, oil bath air cleaner

1шт.
